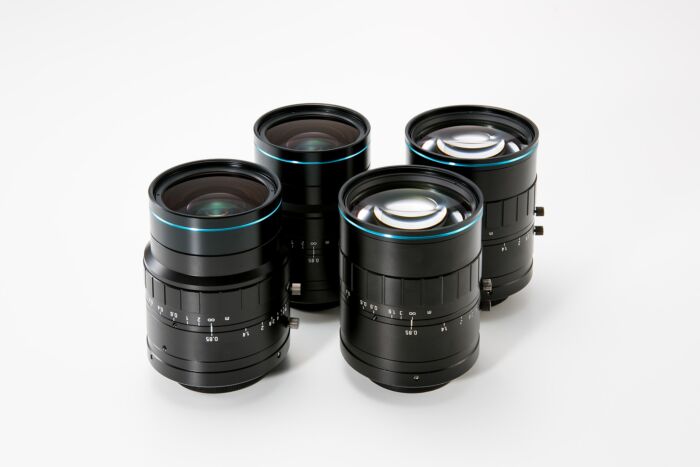

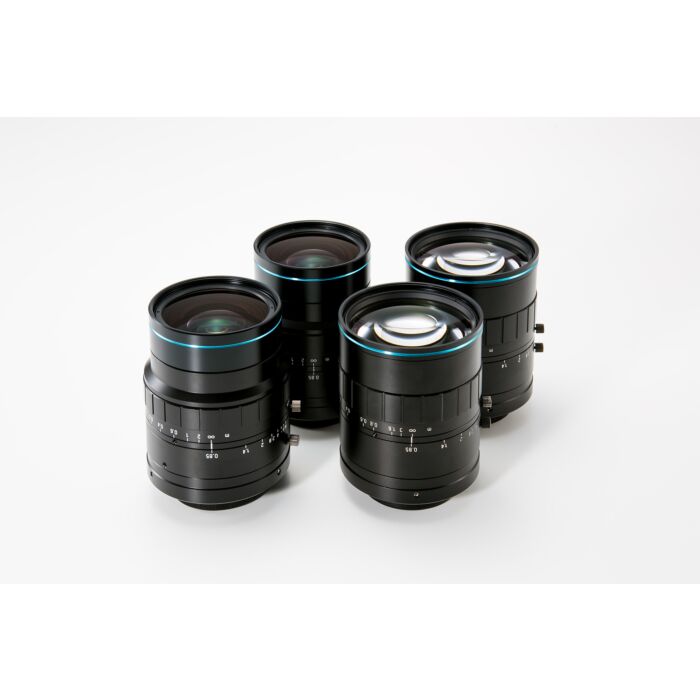

VS Technology VS-50085/M42 Front View Group Lens Image

VS Technology VS-50085/M42 Fixed Focal Length Lens with F/0.85 for High Speed Cameras

VS Technology VS-0818H/3CMOS Front Group View Image

VS Technology VS-0818H/3CMOS Megapixel Lens for 3CMOS Cameras

VS Technology VS-50085/C Fixed Focal Length Lens with F/0.85 for High Speed Cameras

Elevate your industrial imaging with the VS-50085/C Fixed Focal Length Lens. Unmatched F/0.85 brightness, 4/3" sensor support, and low distortion for precision machine vision. Choose clarity, choose Aegis Electronic Group.
SKU
VS-50085/C

Unleash Precision with VS-50085/C Fixed Focal Length Lens

Enhance your industrial imaging capabilities with the VS Technology VS-50085/C Fixed Focal Length Lens offered by Aegis Electronic Group. Designed specifically for high-speed cameras, this lens boasts a remarkable F/0.85 aperture, ensuring unparalleled brightness and clarity in challenging environments. The 4/3" sensor support guarantees compatibility with a range of cameras, while the floating system ensures consistent high performance across various magnifications.

Engineered for precision, the lens minimizes distortion and maximizes contrast, providing optimal image quality for machine vision applications. The M42-Mount, with the option for C-Mount/BTO, offers flexibility in installation. Whether you are capturing fast-moving processes or conducting intricate inspections, this lens delivers exceptional results. Its robust construction and advanced optics make it an ideal choice for industries requiring high-speed, high-precision imaging.

Features:

  • F/0.85 aperture for exceptional brightness
  • 4/3" sensor support for versatile compatibility
  • Floating system ensures high performance at any magnification
  • Low distortion and high contrast for optimal image quality
  • M42-Mount with C-Mount/BTO options for flexible installation


Applications:

  • High-speed camera imaging
  • Precision machine vision
  • Industrial inspection
  • Fast-moving process capture
  • High-performance imaging applications
Focal Length 50mm
Maximum Aperture Ratio 1: 0.85
Aperture F 0.85 ~ 16
Angle Of View (1.1") 15.9° x 21.0° (Diagonal: 26.0°)
M.O.D 240 mm
TV Distortion (1.1") -0.30 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount M 42 P= 1.0
Flange Back 19.53 mm
Sensor Size (max.) 4/3"
Filter Thread M 62 P= 0.75
Weight (approx.) 610 g
Dimension Ø 65 (max.) x L = 79.5 mm
