VS Technology VS-3518VM High Contrast Megapixel Fixed Focal Length Lens
Unlock Precision Imaging with VS Technology VS-3518VM

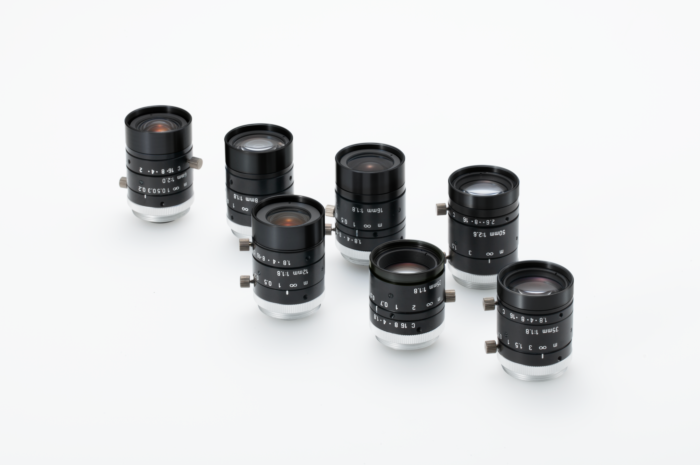

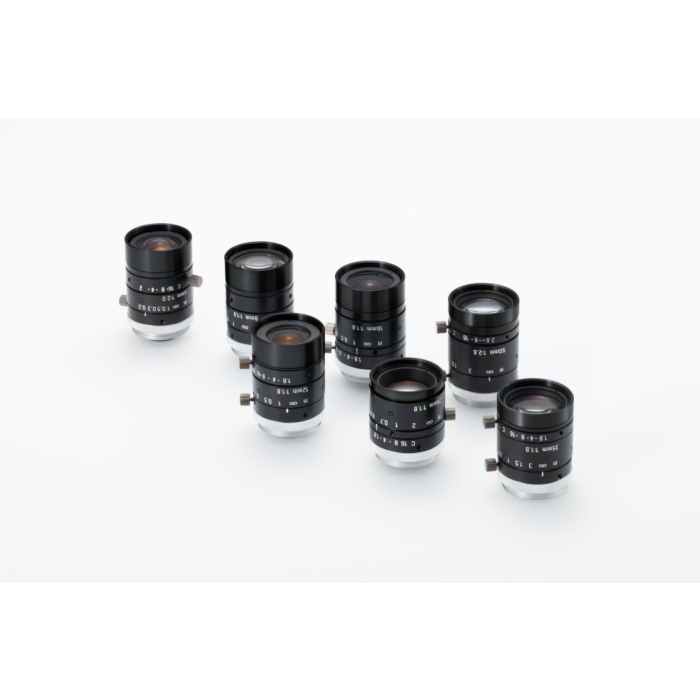

Immerse yourself in unparalleled imaging precision with the VS Technology VS-3518VM High Contrast Megapixel Fixed Focal Length Lens. This series boasts seven models ranging from f6mm to f50mm, offering a versatile solution for industrial and machine vision applications. The F1.8 brightness and compact design ensure exceptional performance, capturing details with unparalleled clarity. Its vibration-resistant design enhances stability, making it ideal for challenging environments.
The VS-3518VM lens features a C-Mount, providing seamless integration with a variety of industrial cameras. The lens's high contrast and resolution capabilities set it apart, delivering superior image quality at a cost-effective price point. Whether you're engaged in manufacturing, robotics, or quality control, this lens ensures precision and reliability in your vision systems.
Features:
- F1.8 brightness for optimal imaging
- Vibration-resistant design for stability
- High contrast and resolution
- Versatile C-Mount compatibility
- Cost-effective without compromising quality
Applications:
- Manufacturing and quality control
- Robotics and automation
- Machine vision systems
- Industrial imaging solutions
- Precision inspection applications
| Focal Length | 35mm |
| Maximum Aperture Ratio | 1:1.8 |
| Aperture | F 1.8 ~ Close |
| Angle Of View (1.1") | 11.7° x 13.8° (Diagonal: 18.0°) |
| M.O.D | 250 mm |
| TV Distortion (1.1") | -0.12 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3" |
| Filter Thread | M 27 P= 0.5 |
| Weight (approx.) | 48 g |
| Dimension | Ø 29 (max.) x L = 33.5 mm |
