VS Technology VS-3514H1 Megapixel Fixed Focal Length Lens

Unlock precision in industrial imaging with VS Technology VS-3514H1 Megapixel Lens. 1" support, F1.4 brightness, low distortion—perfect for machine vision. Elevate your imaging with Aegis.
SKU
VS-3514H1

Precision Imaging with VS Technology VS-3514H1 Megapixel Fixed Focal Length Lens

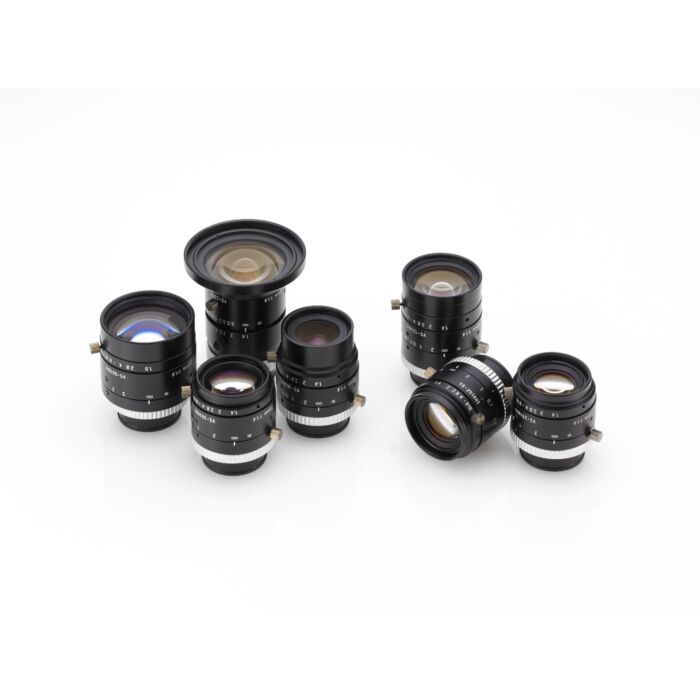

Elevate your industrial imaging capabilities with the VS Technology VS-3514H1 Megapixel Fixed Focal Length Lens, exclusively available at Aegis Electronic Group. This advanced lens series is meticulously engineered to meet the exacting demands of modern machine vision applications. Offering versatile 1" sensor support, the VS-3514H1 boasts a range of focal lengths from f6 to 100mm across seven meticulously designed models.

Designed for high-speed CMOS sensors, the lens features an impressive F1.4 brightness, ensuring optimal performance in scenarios where speed and precision are paramount. The lens's unique combination of low distortion and high contrast guarantees exceptional image quality, setting it apart in industrial imaging.

The VS-3514H1 is not just a lens; it's a commitment to precision, reliability, and seamless integration. Ideal for automation, robotics, and quality control applications, this lens unlocks new possibilities in machine vision, providing clarity and detail that is crucial for today's demanding industrial environments. Upgrade your imaging experience with the VS Technology VS-3514H1 Megapixel Fixed Focal Length Lens and see the difference precision optics can make.

Features:

  • 1" sensor support
  • F1.4 brightness for high-speed CMOS
  • Range of focal lengths (f6 - 100mm)
  • Low distortion and high contrast
  • Precision optics for industrial imaging

Applications:

  • Automation
  • Machine vision systems
  • Quality control
  • Robotics
  • Inspection systems
Focal Length 35mm
Maximum Aperture Ratio 1:1.4
Aperture F 1.4 ~ 16
Angle Of View (1.1") 18.3° x 18.3° (Diagonal: 25.8°)
M.O.D 300 mm
TV Distortion (1.1") -0.31 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1"
Filter Thread M 30.5 P= 0.5
Weight (approx.) 92 g
Dimension Ø 38 (max.) x L = 35 mm
