VS Technology VS-2518VM High Contrast Megapixel Fixed Focal Length Lens
Unveiling the VS-2518VM High Contrast Megapixel Fixed Focal Length Lens

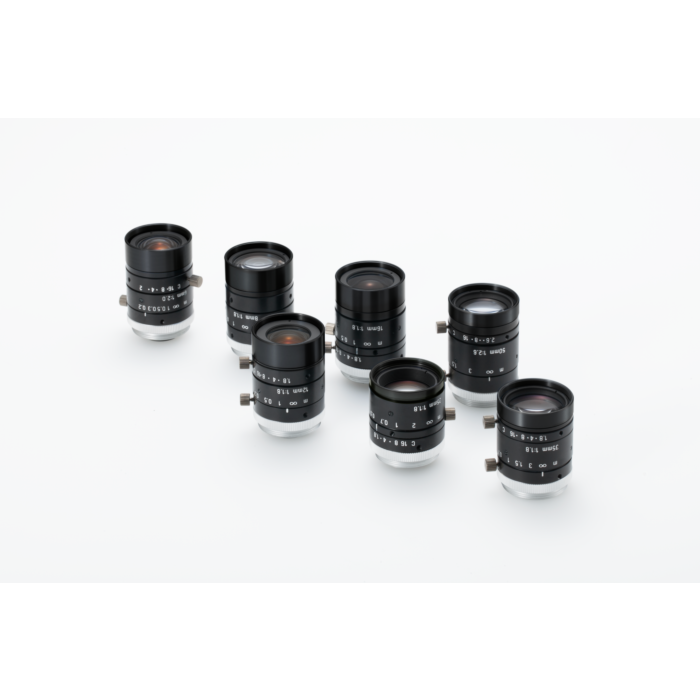

Immerse yourself in the world of industrial imaging with the VS-2518VM High Contrast Megapixel Fixed Focal Length Lens from VS Technology. Boasting a versatile range from f6mm to f50mm across seven models, these lenses deliver impeccable F1.8 brightness in a compact design. The vibration-resistant design ensures stability in diverse industrial environments, offering high contrast and resolution that meets the stringent demands of machine vision applications.
Featuring a C-Mount, these lenses showcase exceptional quality at a cost-effective price point, making them ideal for industrial automation and machine vision systems. The precision optics provide clarity that goes beyond expectations, making them indispensable for applications where image quality is paramount. The VS-2518VM lenses establish a new standard for efficiency and performance, offering a reliable solution for various industrial imaging needs.
Features:
- F6mm to f50mm range, 7 models
- F1.8 brightness in a compact design
- Vibration-resistant for stability
- C-Mount compatibility
- High contrast and resolution
- Cost-effective pricing
Applications:
- Industrial automation
- Machine vision systems
- Quality control
- Robotics
- Production line inspection
| Focal Length | 25mm |
| Maximum Aperture Ratio | 1:1.8 |
| Aperture | F 1.8 ~ Close |
| Angle Of View (1.1") | 12.1° x 15.9° (Diagonal: 19.9°) |
| M.O.D | 250 mm |
| TV Distortion (1.1") | -0.15 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1/1.8" |
| Filter Thread | M 27 P= 0.5 |
| Weight (approx.) | 60 g |
| Dimension | Ø 29.5 (max.) x L = 29 mm |
