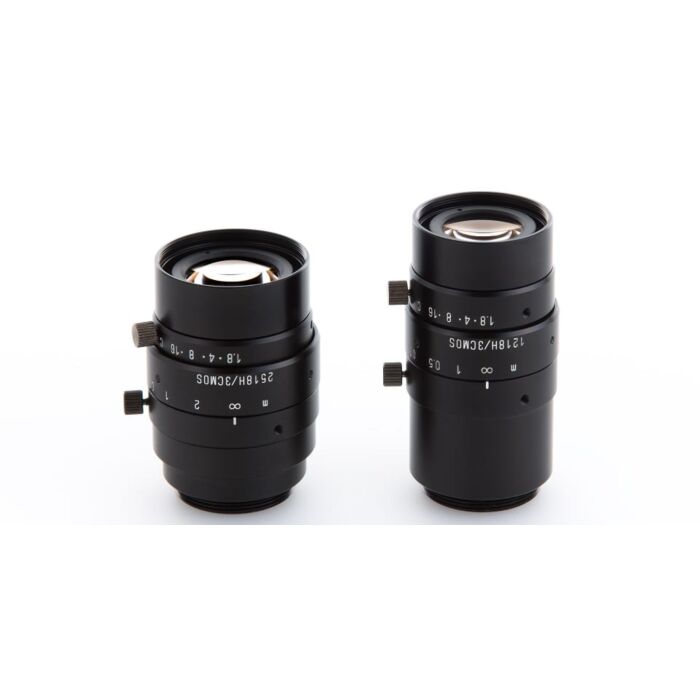

VS Technology VS-2518H/3CMOS Megapixel Lens for 3CMOS Cameras
Unlock Precision with VS-2518H/3CMOS Megapixel Lens
Discover the pinnacle of optical excellence with the VS-2518H/3CMOS Megapixel Lens from VS Technology, available through Aegis Electronic Group. Engineered specifically for multi-sensor 3CMOS cameras, these lenses deliver unparalleled image quality and optical precision. With support for 1/1.8" sensors and a range of focal lengths (f8mm, f12mm, f16mm, f25mm), this series provides versatile options to meet diverse industrial imaging needs.
Featuring cutting-edge technology, these lenses ensure high-resolution imaging for machine vision applications. The robust design and construction guarantee durability in challenging industrial environments. The VS-2518H/3CMOS lenses establish new standards in image clarity, making them ideal for automation, quality control, and inspection processes.
Features:
- Precision optics for 3CMOS cameras
- Versatile focal length options
- High-resolution imaging
- Robust and durable design
- Engineered for industrial applications
Applications:
- Automation
- Quality control
- Inspection processes
- Industrial imaging
- Machine vision systems
| Focal Length | 25mm |
| Maximum Aperture Ratio | 1: 1.8 |
| Aperture | F 1.8 ~ Close |
| Angle Of View (1.1") | 12.2° x 16.0° (Diagonal: 20.0°) |
| M.O.D | 200 mm |
| TV Distortion (1.1") | -0.16 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1/1.8" |
| Filter Thread | M 30.5 P= 0.5 |
| Weight (approx.) | 100 g |
| Dimension | Ø 36 (max.) x L = 47.5 mm |
