VS Technology VS-2514H1 Megapixel Fixed Focal Length Lens

Elevate industrial imaging with VS-2514H1 Megapixel Lens – optimized for 1" sensors, F1.4 brightness, and low distortion. Unleash precision and clarity in machine vision applications. Explore the future of imaging with Aegis Electronic Group.
SKU
VS-2514H1

Unlock Precision Imaging with the VS-2514H1 Megapixel Lens

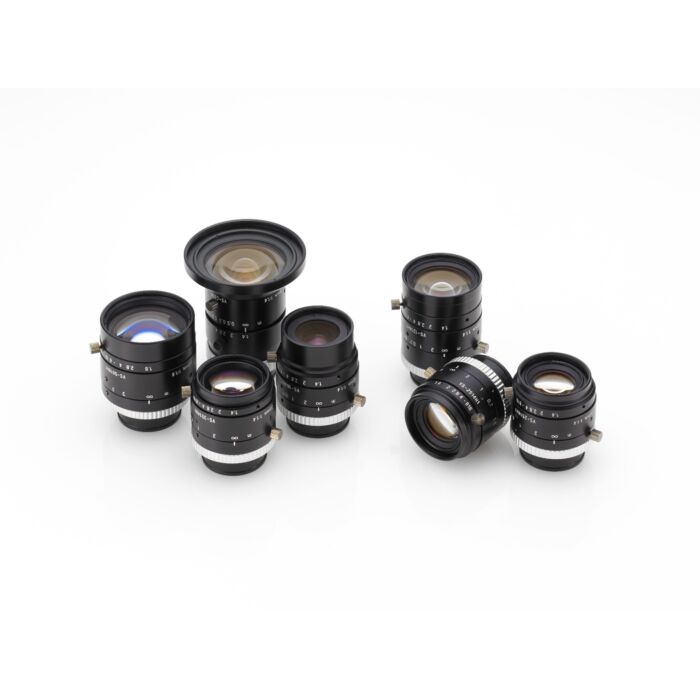

Delve into cutting-edge imaging with the VS-2514H1 Megapixel Fixed Focal Length Lens by VS Technology, meticulously crafted to support 1" sensors. With focal lengths ranging from f6 to 100mm across seven models, this lens delivers unparalleled clarity and detail for high-speed CMOS sensors. The F1.4 brightness ensures optimal performance in challenging lighting conditions, while the lens's low distortion and high contrast guarantee superior image quality.

Designed for seamless integration into industrial and machine vision applications, the VS-2514H1 lens establishes new benchmarks in imaging precision. Its versatility makes it an ideal choice for applications demanding accuracy and reliability. The lens features a range of connections to facilitate easy integration into diverse systems, ensuring a seamless imaging experience.

With a robust build and precision engineering, this lens transforms imaging processes across industries, setting a new standard for quality and performance. Elevate your imaging capabilities with the VS-2514H1 Megapixel Lens – where technological innovation meets industrial imaging excellence. Experience clarity, precision, and reliability in every detail, and revolutionize your approach to industrial and machine vision applications. Unleash the power of VS Technology, delivering imaging solutions that redefine industry standards.

Features:

  • 1" sensor support
  • F6 - 100mm focal lengths (7 models)
  • F1.4 brightness for high-speed CMOS sensors
  • Low distortion for superior image quality
  • High contrast for precision imaging

Applications:

  • Machine vision systems
  • Industrial inspection
  • Quality control
  • Robotics
  • Automation
  • Scientific imaging
  • Surveillance
Focal Length 25mm
Maximum Aperture Ratio 1:1.4
Aperture F 1.4 ~ 16
Angle Of View (1.1") 25.1° x 25.1° (Diagonal: 35.4°)
M.O.D 300 mm
TV Distortion (1.1") -0.46 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1"
Filter Thread M 30.5 P= 0.5
Weight (approx.) 84 g
Dimension Ø 38 (max.) x L = 33.5 mm
