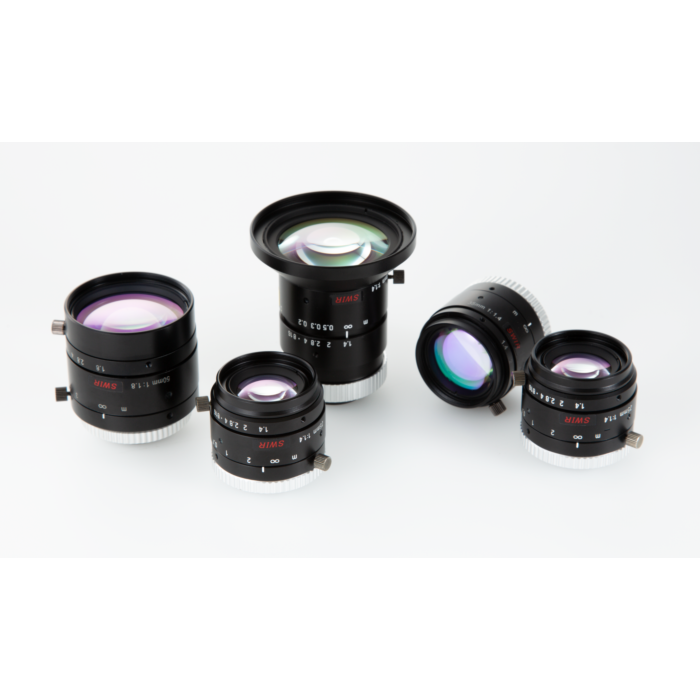

VS Technology VS-2514H1-SWIR 1" Support, SWIR Fixed Focal Length Lens
Unleash Precision with VS-2514H1-SWIR 1" Support Lens
Dive into the cutting-edge world of industrial imaging with the VS-2514H1-SWIR 1" Support Lens from VS Technology, available exclusively at Aegis Electronic Group. These SWIR fixed focal length lenses boast 1" support and cover an impressive focal range from f6mm to f50mm with seven meticulously crafted models. Designed for high transmittance across the 900nm to 2000nm spectrum, these lenses deliver megapixel resolution, ensuring unparalleled clarity in infrared imaging applications.
The VS-2514H1-SWIR lenses feature a versatile C-Mount, providing compatibility with a range of industrial cameras. Ideal for machine vision applications, these lenses offer precision optics for demanding tasks in industrial automation, quality control, and robotics. The durable construction ensures reliable performance in challenging environments, making them indispensable for professionals seeking superior image quality and accuracy.
Features:
- 1" support with seven models
- Focal range: f6mm to f50mm
- High transmittance (900nm - 2000nm)
- Megapixel resolution
- C-Mount compatibility
Applications:
- Industrial automation
- Quality control
- Robotics
- Machine vision tasks
- Infrared imaging applications
| Focal Length | 25mm |
| Maximum Aperture Ratio | 1: 1.4 |
| Aperture | F1.4 ～16 |
| Angle Of View (1") | 25.1° x 25.1° (Diagonal: 35.4°) |
| M.O.D | 300 mm |
| TV Distortion (1.1") | -0.46 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Short Wave IR |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Filter Thread | M 30.5 P=0.5 |
| Weight (approx.) | 84 g |
| Dimension | Ø 38 (max.) x L = 33.5 mm |
