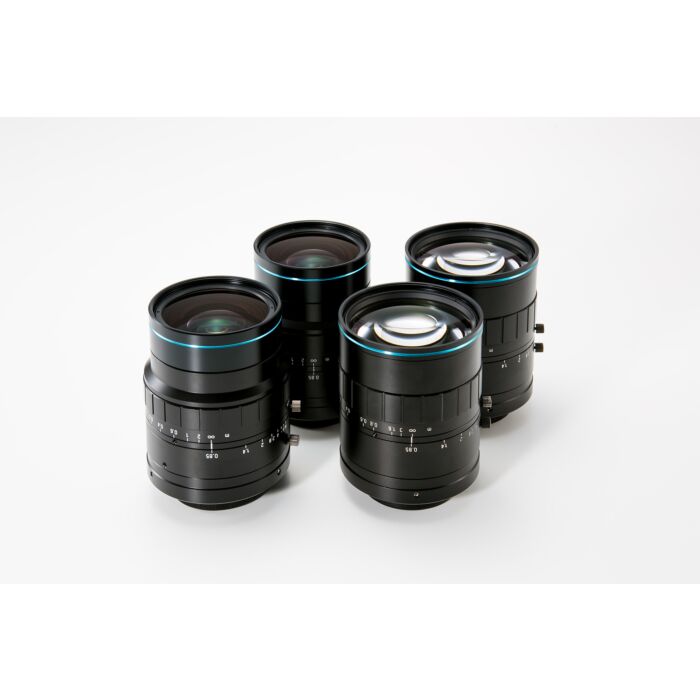

VS Technology VS-25085/C Fixed Focal Length Lens with F/0.85 for High Speed Cameras
Unleash Precision with VS-25085/C Fixed Focal Length Lenses
Enhance your industrial imaging capabilities with the VS Technology VS-25085/C Fixed Focal Length Lenses. Designed specifically for high-speed cameras, these lenses boast a remarkable F/0.85 brightness and 4/3" sensor support, ensuring unparalleled performance in demanding applications. The floating system guarantees optimal results at any magnification, while the M42-Mount (also available in C-Mount/BTO) provides versatile compatibility.
Experience low distortion and high contrast imaging, setting a new standard in optical precision for machine vision applications. The VS-25085/C lenses are meticulously crafted to meet the rigorous demands of industrial environments, offering a perfect balance between speed and accuracy. Ideal for use in robotics, quality control, and automated inspection systems, these lenses empower your vision systems with unmatched clarity and detail.
Features:
- F/0.85 Brightness
- 4/3" Sensor Support
- Floating System Design
- M42-Mount (C-Mount/BTO available)
- Low Distortion, High Contrast
- Precision Optical Performance
Applications:
- Robotics
- Quality Control
- Automated Inspection
- High-Speed Imaging Systems
- Industrial Machine Vision
| Focal Length | 25mm |
| Maximum Aperture Ratio | 1: 0.85 |
| Aperture | F 0.85 ~ 16 |
| Angle Of View (1.1") | 30.3° x 40.0° (Diagonal: 49.1°) |
| M.O.D | 170 mm |
| TV Distortion (1.1") | -1.21 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | M 42 P= 1.0 |
| Flange Back | 19.53 mm |
| Sensor Size (max.) | 4/3" |
| Filter Thread | M 55 P= 0.75 |
| Weight (approx.) | 570 g |
| Dimension | Ø 65 (max.) x L = 83.5 mm |
