VS Technology VS-1618VM High Contrast Megapixel Fixed Focal Length Lens

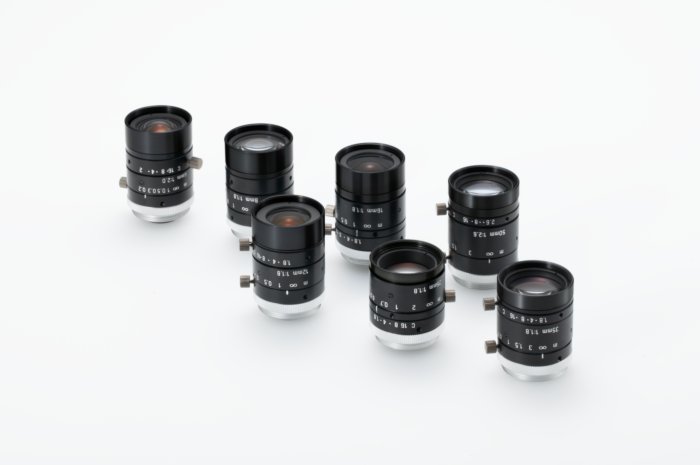

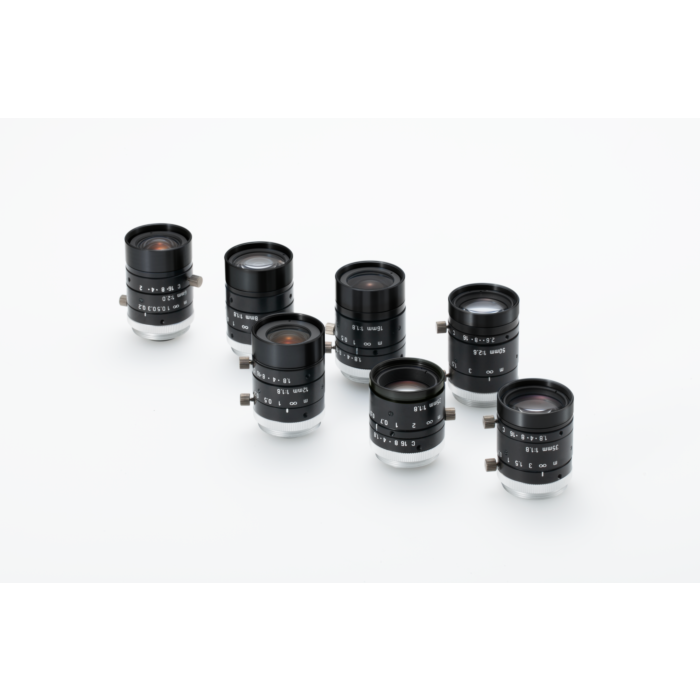

Unveiling VS-1618VM High Contrast Megapixel Fixed Focal Length Lens
Discover excellence in industrial imaging with the VS-1618VM High Contrast Megapixel Fixed Focal Length Lens by VS Technology. Offering a range from f6mm to f50mm across 7 models, this lens is designed for optimal performance in machine vision applications. Boasting an impressive F1.8 brightness and a compact design, the VS-1618VM ensures high contrast and resolution in diverse industrial settings.
Its vibration-resistant design enhances stability during operation, making it a reliable choice for demanding environments. With a C-Mount configuration, the lens provides versatility and compatibility with various industrial cameras. This lens strikes the perfect balance between high-quality imaging and cost-effectiveness, meeting the demands of industrial vision systems.
Features:
- High contrast and resolution
- F1.8 brightness in a compact design
- Vibration-resistant for stability
- Versatile C-Mount configuration
- Cost-effective pricing
Applications:
- Automated Inspection
- Quality Control
- Robotics Vision
- Object Recognition
- Production Line Monitoring
| Focal Length | 16mm |
| Maximum Aperture Ratio | 1:1.8 |
| Aperture | F 1.8 ~ Close |
| Angle Of View (1.1") | 18.8° x 24.6° (Diagonal: 30.6°) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | -0.14 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1/1.8" |
| Filter Thread | M 27 P= 0.5 |
| Weight (approx.) | 58 g |
| Dimension | Ø 29.5 (max.) x L = 39.5 mm |
