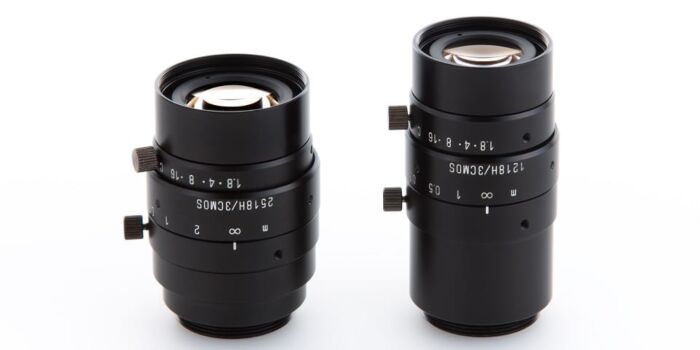

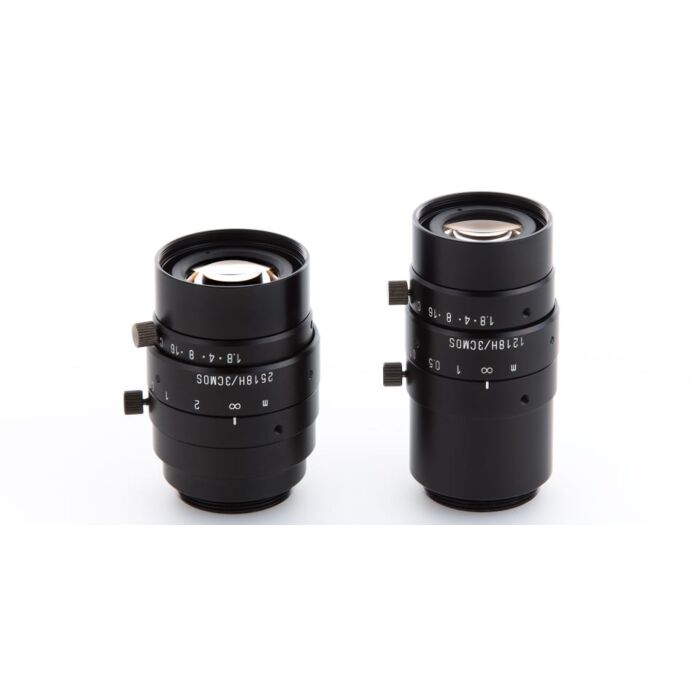

VS Technology VS-1618H/3CMOS Megapixel Lens for 3CMOS Cameras
Unlocking Precision: VS-1618H/3CMOS Megapixel Lens
The VS-1618H/3CMOS Megapixel Lens from VS Technology, available through Aegis Electronic Group, is engineered to meet the demanding requirements of multi-sensor 3CMOS cameras. With 1/1.8" sensor support and four versatile models (f8mm, f12mm, f16mm, and f25mm), this lens series delivers unparalleled image clarity and precision. The cutting-edge optics cater to industrial and machine vision applications where high-resolution imaging is paramount.
The lenses boast a design that aligns seamlessly with the needs of modern imaging systems, offering exceptional performance in various scenarios. The connections are meticulously crafted to ensure optimal data transfer and seamless integration with 3CMOS cameras. This lens series caters to the intricate demands of industrial and machine vision applications, providing an indispensable tool for tasks requiring meticulous imaging, accurate measurements, and superior clarity. Whether used in quality control, robotics, or inspection systems, the VS-1618H/3CMOS Megapixel Lens elevates the standards of imaging technology.
Features:
- Megapixel lenses for 3CMOS cameras
- 1/1.8" sensor support
- Four models: f8mm, f12mm, f16mm, f25mm
- Precision optics for high-resolution imaging
- Seamless integration with 3CMOS cameras
Applications:
- Industrial imaging
- Machine vision
- Quality control
- Robotics
- Inspection systems
| Focal Length | 16mm |
| Maximum Aperture Ratio | 1: 1.8 |
| Aperture | F 1.8 ~ Close |
| Angle Of View (1.1") | 19.1° x 25.1° (Diagonal: 31.6°) |
| M.O.D | 150 mm |
| TV Distortion (1.1") | -0.44 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1/1.8" |
| Filter Thread | M 30.5 P= 0.5 |
| Weight (approx.) | 114 g |
| Dimension | Ø 36 (max.) x L = 56 mm |
