Precision Imaging with VS-1614H1N Megapixel Fixed Focal Length Lens

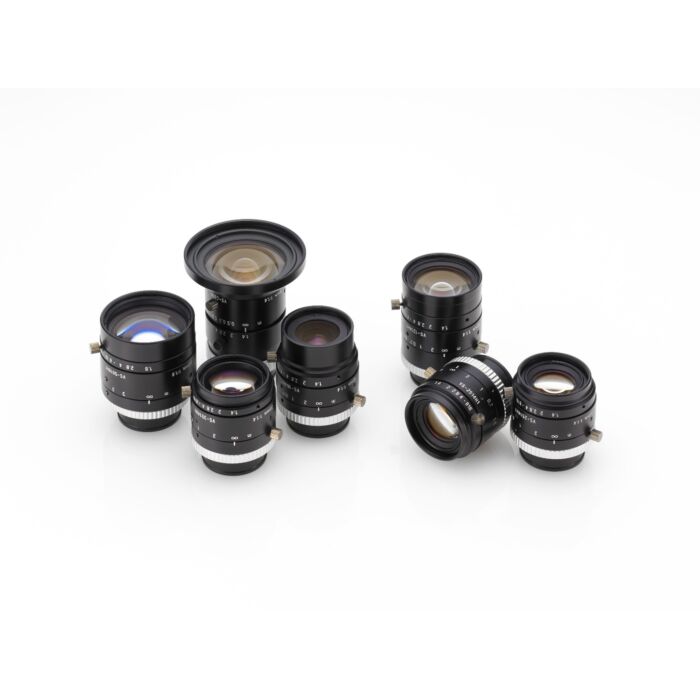

Unleash the power of precision imaging with the VS-1614H1N Megapixel Fixed Focal Length Lens by VS Technology, now available through Aegis Electronic Group. Engineered to support 1" formats, this lens series offers unparalleled versatility with focal lengths ranging from f6 to 100mm across seven meticulously crafted models, ensuring a tailored optical solution for a myriad of industrial and machine vision applications.
With a remarkable F1.4 brightness optimized for high-speed CMOS sensors, this lens guarantees exceptional image quality, making it an ideal choice for applications requiring swift and accurate imaging. The VS-1614H1N lens stands out with its low distortion and high contrast optics, providing unparalleled image clarity and precision.
Crafted with precision and durability, this lens is built to excel in demanding industrial automation tasks and rigorous factory inspection processes. Whether you're advancing imaging technology or seeking a reliable solution for machine vision applications, the VS-1614H1N Megapixel Fixed Focal Length Lens is your gateway to precision vision.
Features:
- 1" format support
- Versatile focal lengths (f6 - 100mm, 7 models)
- F1.4 brightness for high-speed CMOS sensors
- Low distortion and high contrast optics
Applications:
| Focal Length | 16mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F 1.4 ~ 16 |
| Angle Of View (1.1") | 38.6° x 38.6° (Diagonal: 53.5°) |
| M.O.D | 300 mm |
| TV Distortion (1.1") | -0.65 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Filter Thread | M 30.5 P= 0.5 |
| Weight (approx.) | 120 g |
| Dimension | Ø 38 (max.) x L = 45 mm |
