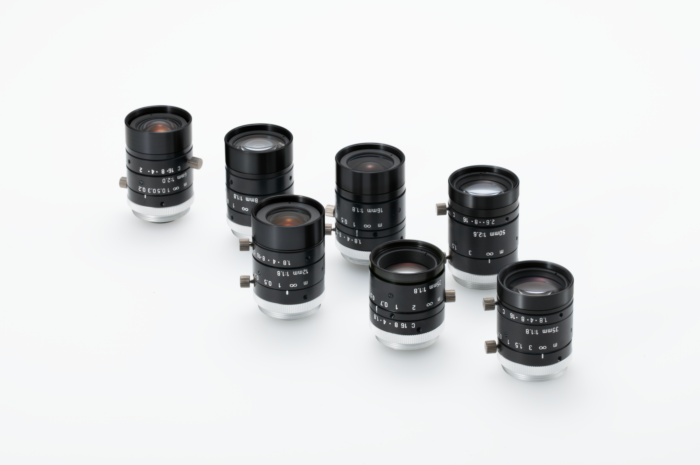

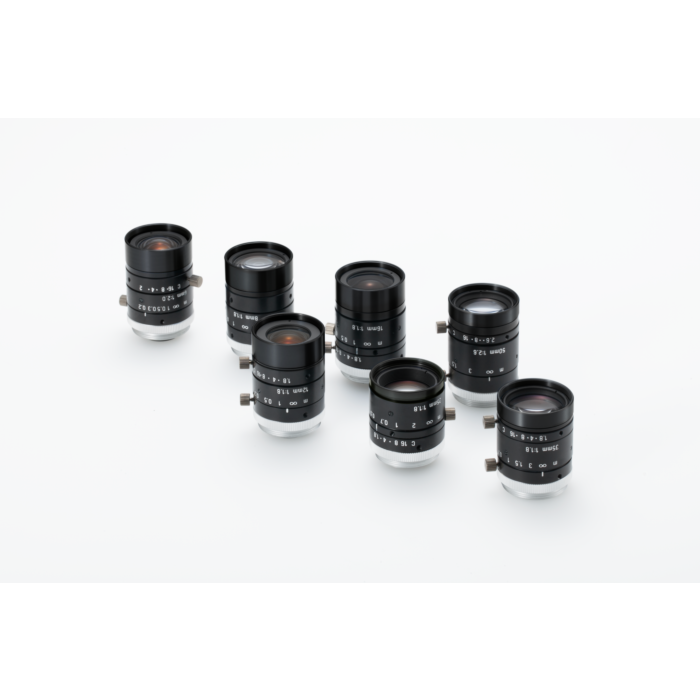

VS Technology VS-1218VM High Contrast Megapixel Fixed Focal Length Lens
Unleashing Precision: VS-1218VM High Contrast Megapixel Lens
Experience unmatched imaging precision with the VS-1218VM High Contrast Megapixel Fixed Focal Length Lens. Boasting a focal range from f6mm to f50mm across 7 models, this lens series combines F1.8 brightness with a compact design, ensuring optimal performance in diverse industrial and machine vision applications. The vibration-resistant design enhances stability, providing consistent high contrast and resolution.
Equipped with a versatile C-Mount, the VS-1218VM series delivers high-quality imaging at a cost-effective price point, making it an ideal choice for businesses seeking uncompromising performance without breaking the budget. The lens series excels in industrial inspection, offering unparalleled clarity for tasks requiring precision and accuracy.
Features:
- Focal Range: f6mm - f50mm (7 models)
- F1.8 Brightness and Compact Design
- Vibration Resistant for Stability
- High Contrast and Resolution
- Cost-Effective C-Mount Lens
Applications:
- Industrial Inspection
- Machine Vision Systems
- Precision Manufacturing
- Quality Control
- Imaging Solutions for Various Industries
| Focal Length | 12mm |
| Maximum Aperture Ratio | 1:1.8 |
| Aperture | F 1.8 ~ Close |
| Angle Of View (1.1") | 25° x 32.6° (Diagonal: 40.2°) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | -0.19 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1/1.8" |
| Filter Thread | M 27 P= 0.5 |
| Weight (approx.) | 60 g |
| Dimension | Ø 29 (max.) x L = 37.5 mm |
