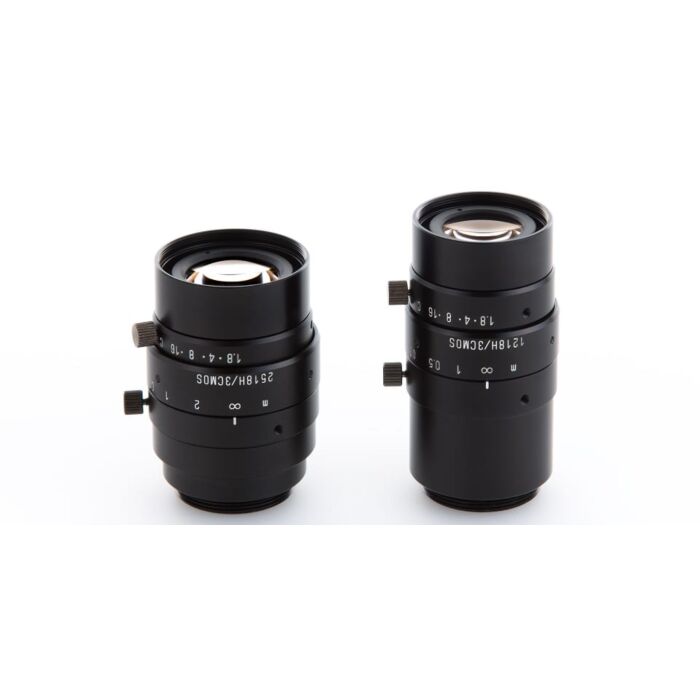

VS Technology VS-1218H/3CMOS Megapixel Lens for 3CMOS Cameras

Unlock unparalleled imaging with the VS-1218H/3CMOS Megapixel Lens. Precision-crafted for multi-sensor 3CMOS cameras, this lens delivers high-resolution clarity. Elevate your industrial vision systems with Aegis Electronic Group's cutting-edge technology. Explore now for advanced imaging solutions!
SKU
VS-1218H/3CMOS

Premium Megapixel Lens for 3CMOS Cameras

Discover the VS-1218H/3CMOS Megapixel Lens, meticulously crafted by VS Technology and available through Aegis Electronic Group. This lens is specifically designed to meet the demanding requirements of multi-sensor 3CMOS cameras, offering exceptional performance in industrial and machine vision applications. With support for the 1/1.8" format, it provides unparalleled image quality and clarity.

Featuring four models with focal lengths of f8mm, f12mm, f16mm, and f25mm, this lens caters to diverse imaging needs. The precision optics ensure high-resolution imaging, making it ideal for applications that demand detailed and accurate visual data.

The VS-1218H/3CMOS Megapixel Lens establishes a connection between cutting-edge technology and industrial imaging, enhancing the capabilities of vision systems. Its versatility extends to various machine vision applications, including quality control, robotic guidance, and automated inspection processes. Aegis Electronic Group brings you this top-tier lens, a testament to our commitment to providing the latest advancements in camera lens technology for industrial vision solutions.

Features:

  • Megapixel lenses for 3CMOS cameras
  • Versatile focal lengths: f8mm, f12mm, f16mm, f25mm
  • Designed for 1/1.8" format
  • Precision optics for high-resolution imaging
  • Tailored for multi-sensor 3CMOS cameras


Applications:

  • Quality control
  • Robotic guidance
  • Automated inspection processes
  • Industrial imaging
  • Machine vision systems



Focal Length 12mm
Maximum Aperture Ratio 1: 1.8
Aperture F 1.8 ~ Close
Angle Of View (1.1") 25.4° x 33.2° (Diagonal: 41.3°)
M.O.D 150 mm
TV Distortion (1.1") -0.80 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1/1.8"
Filter Thread M 27 P= 0.5
Weight (approx.) 94 g
Dimension Ø 32 (max.) x L = 56 mm
