VS Technology VS-1214H1 Megapixel Fixed Focal Length Lens
Unlock Precision Imaging with VS-1214H1 Megapixel Fixed Focal Length Lens

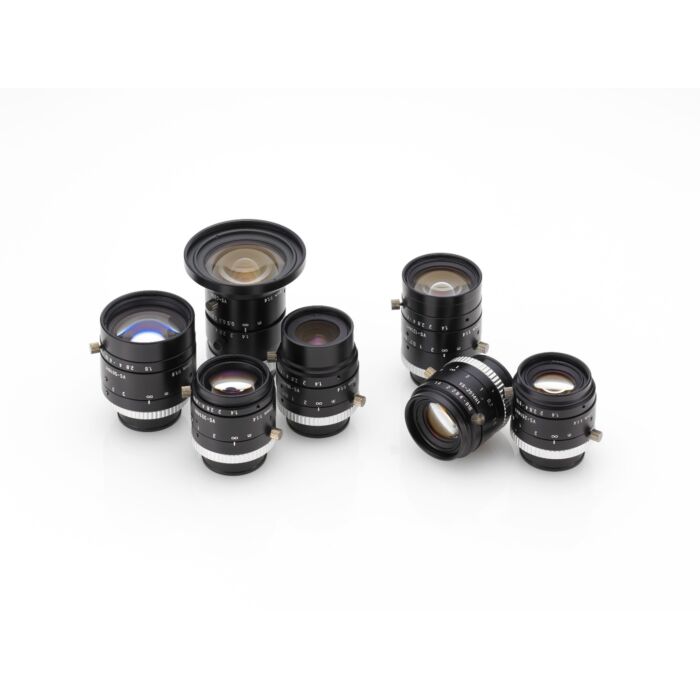

Delve into the cutting-edge VS-1214H1 Megapixel Fixed Focal Length Lens, a pinnacle in industrial camera optics. This lens is meticulously crafted to support 1" sensors, offering a range of focal lengths from f6 to 100mm across seven models. Boasting F1.4 brightness, it excels with high-speed CMOS sensors, ensuring optimal performance in dynamic industrial environments.
The lens distinguishes itself with low distortion and high contrast, delivering unparalleled image quality for machine vision applications. Its versatile connectivity options make it adaptable to various setups, enhancing its compatibility with different industrial systems. The VS-1214H1 is more than a lens; it's a gateway to precision imaging, providing clarity and detail crucial for industrial and machine vision applications.
Features:
- 1" sensor support
- F1.4 brightness for high-speed CMOS
- Versatile connectivity
- Low distortion
- High contrast
- Seven focal lengths (f6 - 100mm)
Applications:
- Industrial inspection
- Robotics vision systems
- Quality control
- Manufacturing processes
- Surveillance systems
- Scientific imaging
- Intelligent transportation systems
| Focal Length | 12mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F 1.4 ~ 16 |
| Angle Of View (1.1") | 50.8° x 50.8° (Diagonal: 68.2°) |
| M.O.D | 300 mm |
| TV Distortion (1.1") | -0.32 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Filter Thread | M 35.5 P= 0.5 |
| Weight (approx.) | 130 g |
| Dimension | Ø 38 (max.) x L = 48 mm |
