VS Technology VS-1214H1-SWIR 1" Support, SWIR Fixed Focal Length Lens
Unveiling Precision: VS-1214H1-SWIR 1" Support, SWIR Fixed Focal Length Lens

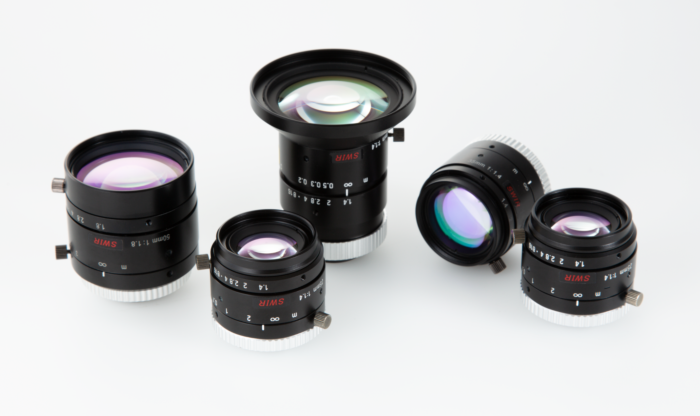

Delve into the world of cutting-edge imaging with the VS1214H1SWIR 1" Support, SWIR Fixed Focal Length Lens by VS Technology, now offered by Aegis Electronic Group. These lenses, with 1" support and ranging from f6mm to f50mm across seven models, provide unparalleled clarity in industrial and machine vision applications. Designed with high transmittance from 900nm to 2000nm, these lenses ensure optimal performance in the Short-Wave Infrared (SWIR) spectrum. With C-Mount compatibility and megapixel resolution, these lenses seamlessly integrate into diverse optical systems.
These lenses cater to a myriad of industrial applications, from quality control in manufacturing to infrared surveillance. The robust construction and advanced optics make them ideal for demanding environments. The C-Mount design facilitates effortless connections with a variety of industrial cameras, enhancing versatility in imaging setups. Elevate your industrial and machine vision capabilities with the VS-1214H1-SWIR lenses, setting new standards for precision and reliability.
Features:
- 1" support with seven models (f6mm - f50mm)
- High transmittance from 900nm to 2000nm
- Megapixel resolution for superior imaging
- C-Mount compatibility for versatile connections
Applications:
- Quality control in manufacturing
- Infrared surveillance
- Industrial automation
- Semiconductor inspection
- Medical imaging
| Focal Length | 12mm |
| Maximum Aperture Ratio | 1: 1.4 |
| Aperture | F1.4 ～16 |
| Angle Of View (1") | 50.8° x 50.8° (Diagonal: 68.2°) |
| M.O.D | 300 mm |
| TV Distortion (1.1") | -0.32 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Short Wave IR |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Filter Thread | M 35.5 P=0.5 |
| Weight (approx.) | 130 g |
| Dimension | Ø 38 (max.) x L = 48 mm |
