VS Technology VS-0818VM High Contrast Megapixel Fixed Focal Length Lens
Unleash the potential of industrial imaging with the VS-0818VM High Contrast Megapixel Fixed Focal Length Lens. Precision optics, compact design, and vibration resistance converge for unparalleled image quality at a cost-effective price. Elevate your vision solutions today!
SKU
VS-0818VM
High Contrast Megapixel Fixed Focal Length Lens - VS-0818VM

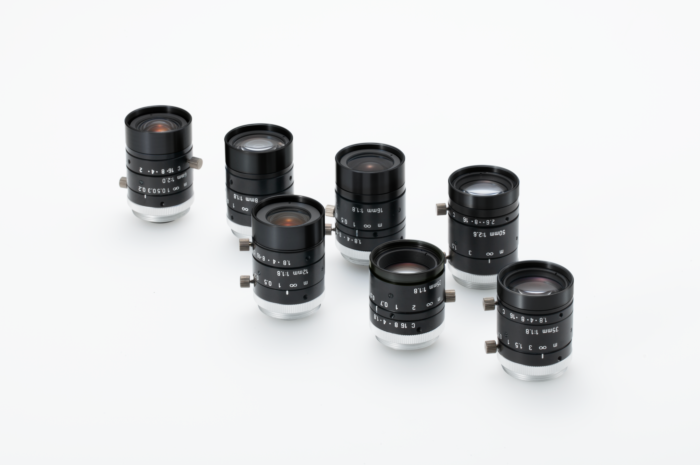

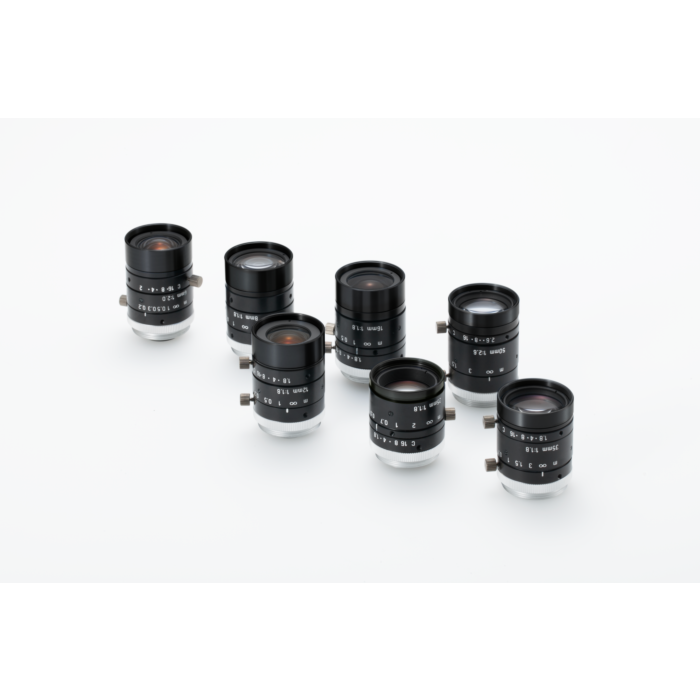

Unveiling the VS-0818VM, a pinnacle in high contrast megapixel fixed focal length lenses designed for industrial and machine vision applications. With a focal range from 6mm to 50mm across seven models, these lenses boast F1.8 brightness, ensuring optimal performance in diverse lighting conditions. The compact design and vibration-resistant features make them ideal for challenging environments.
Crafted with precision, the VS-0818VM delivers high contrast and resolution, setting a new standard in imaging technology. The C-Mount compatibility enhances flexibility for various camera setups. Despite its superior quality, this lens remains cost-effective, providing an unparalleled combination of performance and value.
Features:
- Focal Range: 6mm to 50mm
- F1.8 Brightness
- Vibration Resistant Design
- High Contrast and Resolution
- Compact and Cost-Effective
- C-Mount Compatibility
Applications:
- Machine Vision Systems
- Industrial Automation
- Quality Control
- Robotics and Inspection
- Surveillance and Security
| Focal Length | 8mm |
| Maximum Aperture Ratio | 1:1.8 |
| Aperture | F 1.8 ~ Close |
| Angle Of View (1.1") | 37.2° x 48.2° (Diagonal: 59.1°) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | -1.19 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1/1.8" |
| Filter Thread | M 27 P= 0.5 |
| Weight (approx.) | 64 g |
| Dimension | Ø 29 (max.) x L = 38.5 mm |
