VS Technology VS-0814H1 Front Angled View

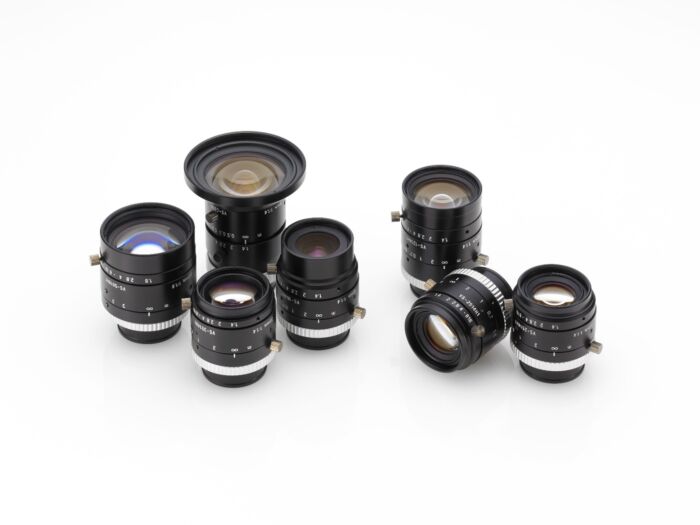

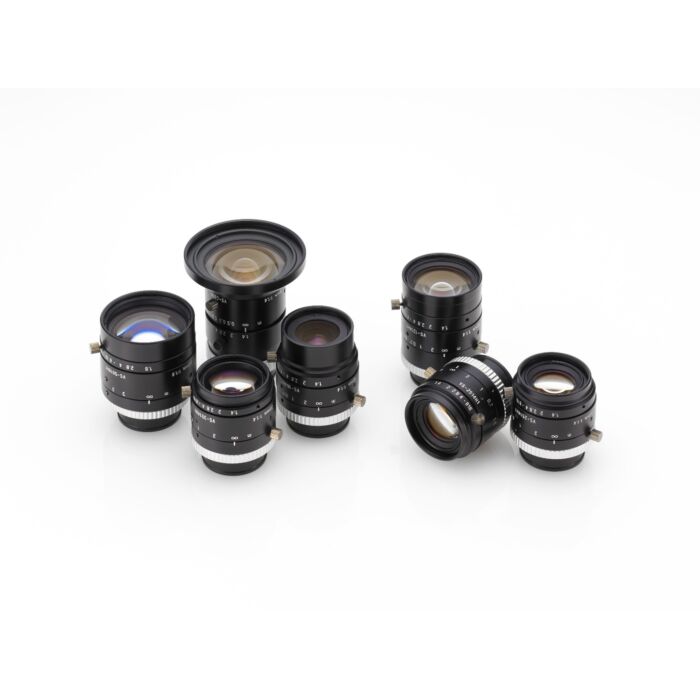

VS Technology VS-0814H1 Megapixel Fixed Focal Length Lens

VS Technology VS-1214H1 Front Angled View

VS Technology VS-1214H1 Megapixel Fixed Focal Length Lens

VS Technology VS-0814H1N Megapixel Fixed Focal Length Lens

Elevate your industrial imaging with the VS-0814H1N Megapixel Lens. Unmatched precision, low distortion, and high contrast for superior performance. Explore now for unparalleled clarity!
SKU
VS-0814H1N

Unlock Precision with VS-0814H1N Megapixel Lens

Elevate your industrial imaging capabilities with the VS Technology VS-0814H1N Megapixel Fixed Focal Length Lens, available exclusively from Aegis Electronic Group. This cutting-edge lens series is meticulously crafted to meet the rigorous demands of industrial and machine vision applications. With robust 1" sensor support, the VS-0814H1N offers unparalleled versatility across seven models, featuring focal lengths ranging from f6 to 100mm.

Designed to complement high-speed CMOS sensors, the lens boasts an impressive F1.4 brightness, ensuring exceptional image clarity even in dynamic, fast-paced environments. Precision optics lie at the core of this lens series, delivering low distortion and high contrast for flawless imaging performance. The integrated connectivity options ensure seamless integration into your imaging setup, providing reliable connections for enhanced usability.

Ideal for a spectrum of applications, from quality inspection to factory automation, the VS-0814H1N Megapixel Lens stands as a testament to precision engineering in the industrial imaging landscape. Immerse yourself in the world of superior image quality and explore the unmatched clarity offered by the VS-0814H1N Megapixel Fixed Focal Length Lens—your gateway to a new era of imaging excellence.


Features:

  • 1" Sensor Support
  • F6 to 100mm Focal Lengths
  • F1.4 Brightness for High-Speed CMOS
  • Low Distortion
  • High Contrast
  • Seamless Connectivity

Applications:

  • Quality Inspection
  • Factory Automation
  • Industrial Imaging
  • Machine Vision
  • Precision Imaging Tasks
Focal Length 8mm
Maximum Aperture Ratio 1:1.4
Aperture F 1.4 ~ 16
Angle Of View (1.1") 72.7° x 72.7° (Diagonal: 92.5°)
M.O.D 100 mm
TV Distortion (1.1") -0.35 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1"
Filter Thread M 55 P= 0.75
Weight (approx.) 185 g
Dimension Ø 57.5 (max.) x L = 59 mm
