VS Technology VS-0618H1 Front Angled View

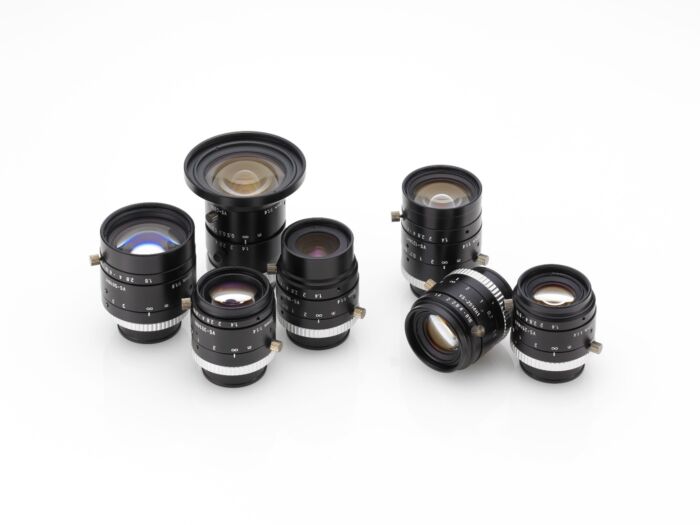

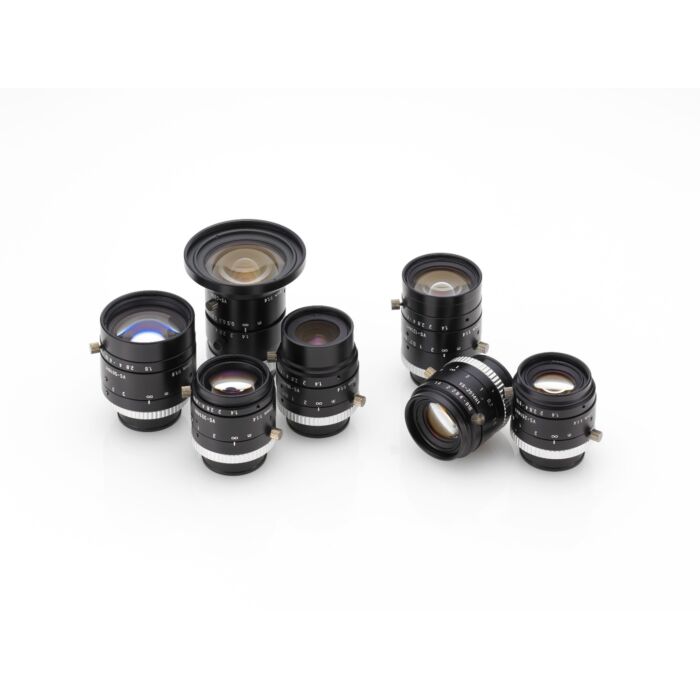

VS Technology VS-0618H1 Support 1” Megapixel Fixed Focal Length Lens

VS Technology VS-0814H1N Front Angled View

VS Technology VS-0814H1N Megapixel Fixed Focal Length Lens

VS Technology VS-0814H1 Megapixel Fixed Focal Length Lens

Elevate your industrial imaging with the VS-0814H1 Megapixel Fixed Focal Length Lens. Precision optics, 1" format support, and F1.4 brightness ensure high-speed excellence. Unleash superior imaging clarity – explore our lens series now!
SKU
VS-0814H1

Precision Optics for Industrial Imaging Excellence

Elevate your industrial imaging capabilities with the VS-0814H1 Megapixel Fixed Focal Length Lens, a pinnacle of precision optics offered exclusively by Aegis Electronic Group. Engineered for 1" format support, this lens series encompasses seven models, each featuring focal lengths ranging from f6 to 100mm. The F1.4 brightness is meticulously crafted for high-speed CMOS sensors, ensuring unparalleled performance in dynamic industrial environments.

Experience imaging perfection with the VS-0814H1's commitment to low distortion and high contrast optics, delivering crystal-clear images that meet the stringent demands of industrial and machine vision applications. Whether utilized in robotics, automation, semiconductor manufacturing, or quality control and inspection systems, this lens series consistently provides exceptional clarity and reliability.

Unleash the full potential of your imaging systems with the VS-0814H1 Megapixel Fixed Focal Length Lens, a testament to cutting-edge optics in the industrial camera industry. Explore our lens series today and witness the difference in precision, performance, and imaging excellence.


Features:

  • 1" format support
  • F6 to 100mm focal lengths (7 models)
  • F1.4 brightness for high-speed CMOS sensors
  • Low distortion and high contrast optics

Applications:

  • Machine Vision Systems
  • Robotics and Automation
  • Quality Control and Inspection
  • Semiconductor Manufacturing
  • Industrial Imaging and Surveillance
Focal Length 8mm
Maximum Aperture Ratio 1:1.4
Aperture F 1.4 ~ 16
Angle Of View (1.1") 71.8° x 71.8° (Diagonal: 91.8°)
M.O.D 100 mm
TV Distortion (1.1") -0.54 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1"
Filter Thread M 55 P= 0.75
Weight (approx.) 175 g
Dimension Ø 57 (max.) x L = 59 mm
