VS Technology VS-0814H1-SWIR 1" Support, SWIR Fixed Focal Length Lens
Enhance Industrial Imaging with VS-0814H1-SWIR 1" Support Lens

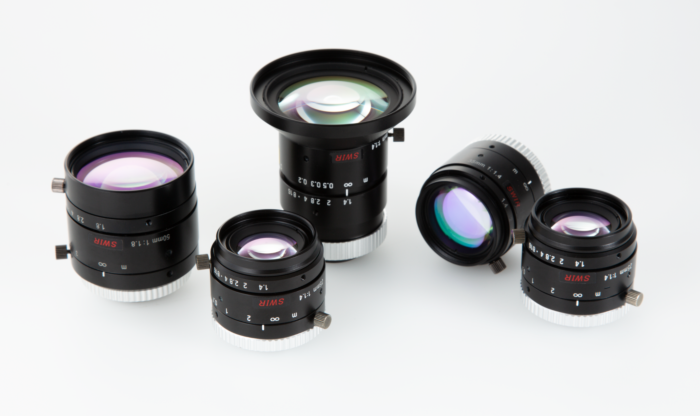

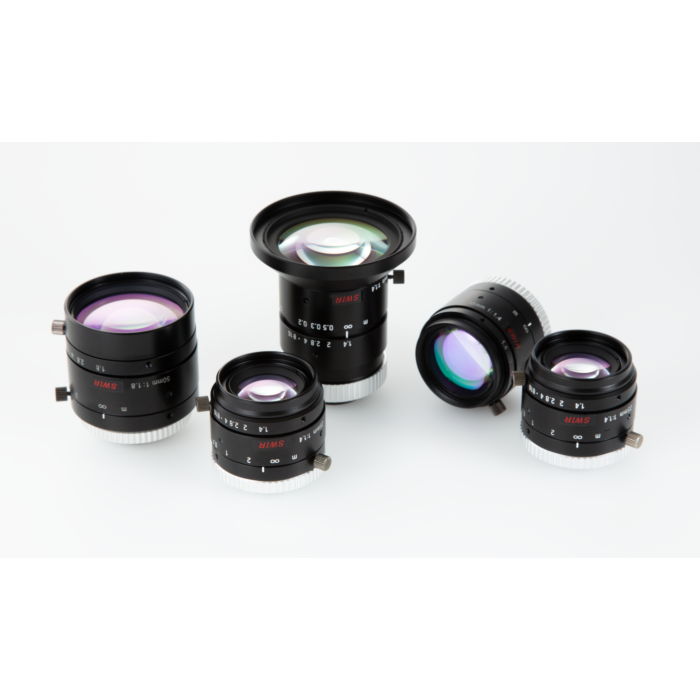

Unleash the power of cutting-edge imaging technology with the VS-0814H1-SWIR 1" Support, SWIR Fixed Focal Length Lens from VS Technology. This series, featuring seven models ranging from f6mm to f50mm, delivers impeccable megapixel resolution and optimal performance in the short-wave infrared (SWIR) spectrum from 900nm to 2000nm. The robust C-Mount ensures compatibility with a variety of industrial cameras.
Built with precision and reliability, these lenses provide 1" support for seamless integration into your imaging setup. The high transmittance capabilities make them ideal for demanding applications in industrial and machine vision, where clarity and accuracy are paramount. Whether used in quality control, defect inspection, or surveillance, these lenses offer unparalleled imaging solutions.
Features:
- Seven models from f6mm to f50mm
- Megapixel resolution
- C-Mount for versatile compatibility
- High transmittance from 900nm to 2000nm
- Precision optics technology
Applications:
| Focal Length | 8mm |
| Maximum Aperture Ratio | 1: 1.4 |
| Aperture | F1.4 ～16 |
| Angle Of View (1") | 71.8° x 71.8° (Diagonal: 91.8°) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | -0.54 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Short Wave IR |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Weight (approx.) | 175 g |
| Dimension | Ø 57 (max.) x L = 59 mm |
