VS Technology VS-0620VM High Contrast Megapixel Fixed Focal Length Lens
Unlock Precision with VS Technology SV-10035V Compact & Wide Angle Lenses

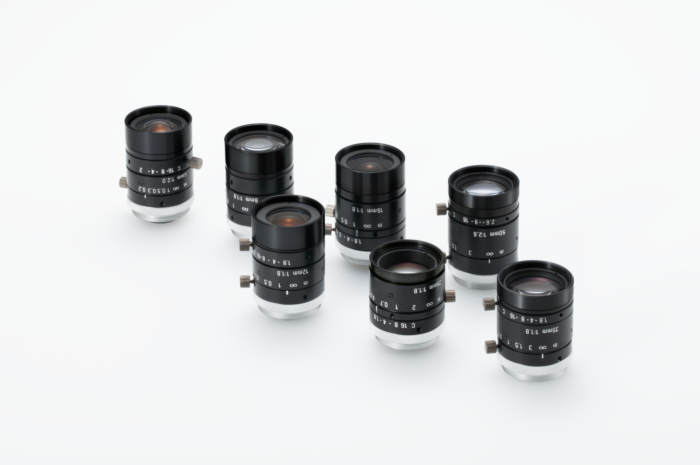

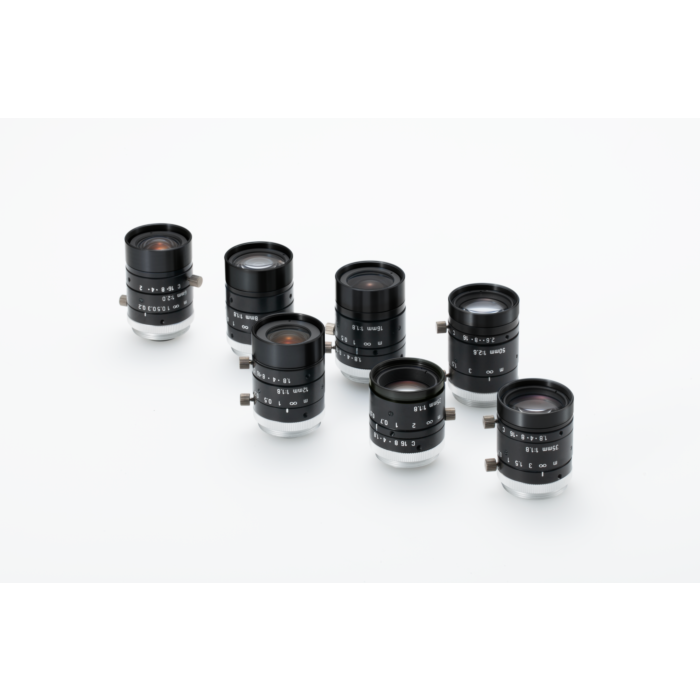

Delve into the cutting-edge world of industrial imaging with the VS-0620VM High Contrast Megapixel Fixed Focal Length Lenses from VS Technology. Offering a range from f6mm to f50mm across seven models, these lenses provide unparalleled clarity and resolution for machine vision applications. The F1.8 brightness and compact C-Mount design ensure optimal performance in diverse industrial settings.
Crafted with a vibration-resistant design, these lenses excel in environments with mechanical stress, delivering consistent high-quality imaging. The lenses' high contrast capability ensures the capture of intricate details, while their cost-effective pricing makes them an attractive choice for businesses seeking superior imaging solutions without compromising on budget.
Features:
- F1.8 brightness & compact C-Mount design
- Vibration-resistant for stable imaging
- High contrast & resolution for detailed captures
- Cost-effective pricing across 7 models
- Versatile focal lengths from f6mm to f50mm
Applications:
- Industrial automation
- Quality control inspection
- Robotics vision systems
- Pharmaceutical manufacturing
- Electronics assembly
| Focal Length | 6mm |
| Maximum Aperture Ratio | 1:2.0 |
| Aperture | F 2 ~ Close |
| Angle Of View (1.1") | 48.4° x 61.9° (Diagonal: 74.7°) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | -1.42 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1/1.8" |
| Filter Thread | M 27 P= 0.5 |
| Weight (approx.) | 62 g |
| Dimension | Ø 29 (max.) x L = 39 mm |
