VS Technology VS-0814H1 Front Angled View

VS Technology VS-0814H1 Megapixel Fixed Focal Length Lens

VS Technology VS-0618H1 Support 1” Megapixel Fixed Focal Length Lens

Unlock unrivaled imaging precision with the VS-0618H1 Megapixel Lens. Perfect for industrial applications, its 1" support, F1.4 brightness, and low distortion redefine image quality. Elevate your machine vision with Aegis Electronic Group today.
SKU
VS-0618H1

Unveiling Precision: VS-0618H1 Megapixel Fixed Focal Length Lens

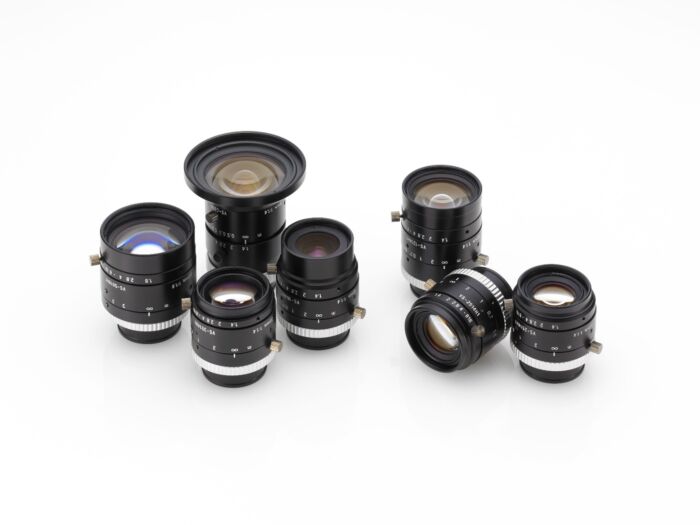

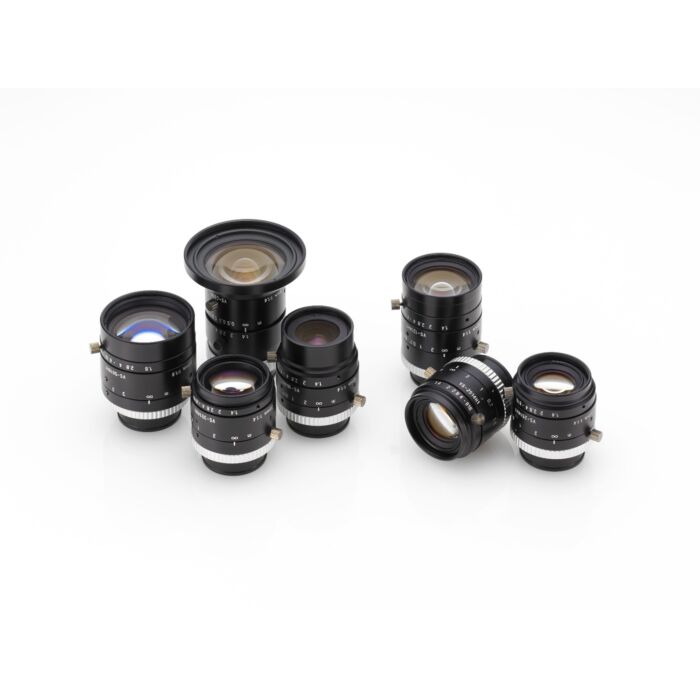

Elevate your industrial imaging capabilities with the VS-0618H1 Megapixel Fixed Focal Length Lens from VS Technology, available through Aegis Electronic Group. Specifically engineered for 1" format support, this lens series offers a diverse range of focal lengths, spanning from f6 to 100mm across seven meticulously crafted models. The impressive F1.4 brightness is tailored to complement high-speed CMOS sensors, ensuring optimal performance in dynamic environments.

What sets this lens apart is its commitment to delivering superior image quality. Boasting low distortion and high contrast, the VS-0618H1 lens provides unparalleled precision in capturing and analyzing intricate details. Its adaptability extends to seamless connectivity options, facilitating effortless integration into diverse industrial and machine vision systems.

Ideal for applications such as quality control, robotics, and inspection processes, the VS-0618H1 lens transforms the landscape of imaging technology. Experience the clarity and accuracy demanded by industrial professionals, redefining the standard for precision imaging. Aegis Electronic Group invites you to explore the future of machine vision with the VS-0618H1 Megapixel Fixed Focal Length Lens today.

Features:

  • 1" format support
  • F6 to 100mm focal lengths (7 models)
  • F1.4 brightness for high-speed CMOS sensors
  • Low distortion
  • High contrast
  • Precision imaging

Applications:

  • Quality control
  • Robotics
  • Inspection processes
  • Industrial imaging solutions
  • Machine vision applications
Focal Length 6mm
Maximum Aperture Ratio 1:1.8
Aperture F 1.8 ~ 16
Angle Of View (1.1") 87.3° x 87.3° (Diagonal: 107.0°)
M.O.D 100 mm
TV Distortion (1.1") -0.61 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1"
Weight (approx.) 205 g
Dimension Ø 64.5 (max.) x L = 57.2 mm
