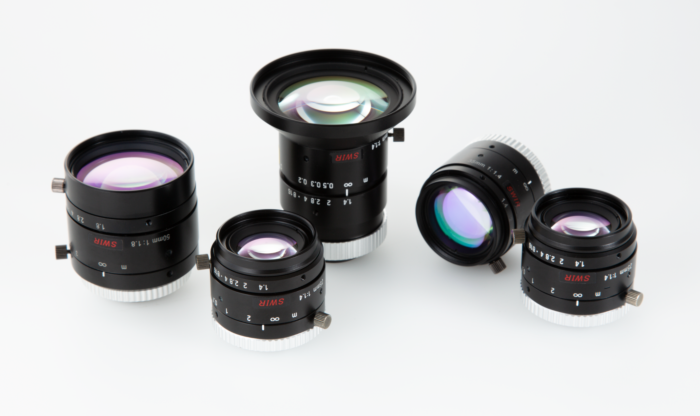

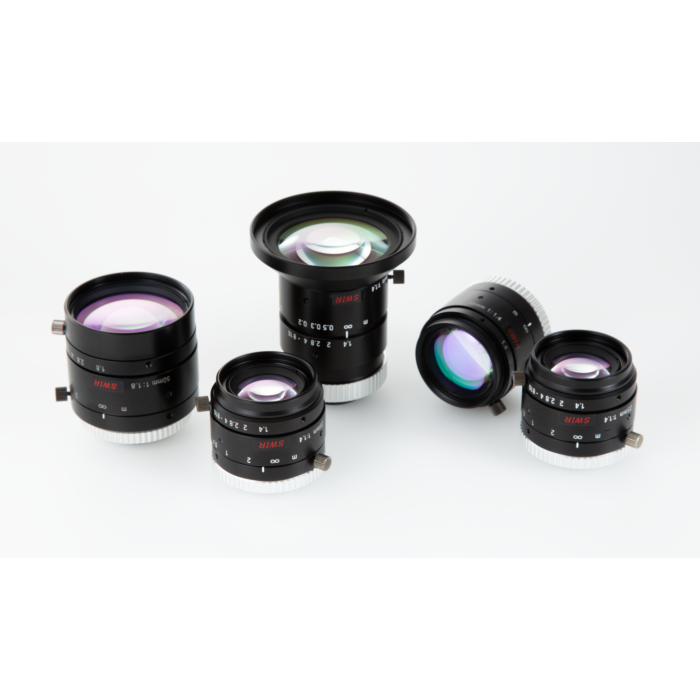

VS Technology VS-0618H1-SWIR 1" Support, SWIR Fixed Focal Length Lens
Discover Unrivaled Imaging Precision with VS-0618H1-SWIR Lens
Unleash the power of advanced imaging with the VS-0618H1-SWIR 1" Support, SWIR Fixed Focal Length Lens from VS Technology, exclusively available at Aegis Electronic Group. Designed with precision in mind, these lenses offer a versatile range from f6mm to f50mm across seven distinct models. With high transmittance capabilities spanning 900nm to 2000nm, these lenses ensure clarity in infrared imaging, catering to diverse industrial and machine vision needs.
Featuring a robust C-Mount design, these lenses deliver megapixel resolution, elevating imaging solutions to unprecedented heights. Ideal for 1" support applications, these lenses provide unparalleled optics for industrial cameras. Whether you're in manufacturing, quality control, or research and development, the VS-0618H1-SWIR lens enhances visibility and accuracy.
Features:
- 1" support with seven models
- Focal lengths from f6mm to f50mm
- High transmittance: 900nm to 2000nm
- Megapixel resolution
- C-Mount design
Applications:
- Infrared industrial imaging
- Manufacturing and quality control
- Research and development in various industries
- Machine vision applications
| Focal Length | 6mm |
| Maximum Aperture Ratio | 1: 1.8 |
| Angle Of View (1") | 87.3° x 87.3° (Diagonal: 107.0°) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | -0.61 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Short Wave IR |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Weight (approx.) | 205 g |
| Dimension | Ø 64.5 (max.) x L = 57.2 mm |
