VS Technology SV-5026H Megapixel Fixed Focal Length Lens
VS Technology SV-5026H Megapixel Fixed Focal Length Lens

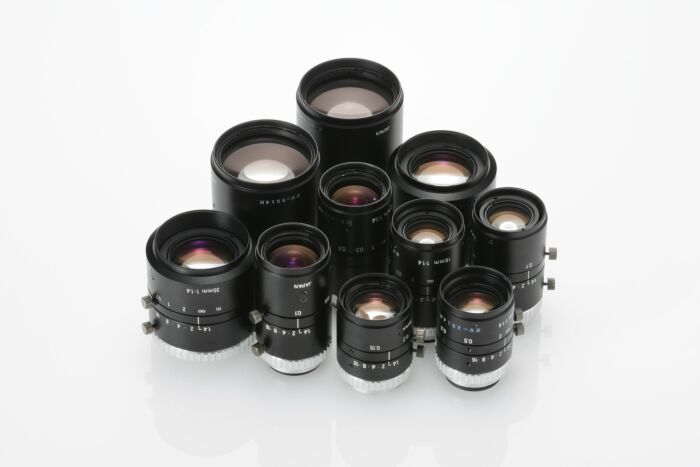

Immerse yourself in cutting-edge industrial imaging with the VS Technology SV5026H Megapixel Fixed Focal Length Lens, available at Aegis Electronic Group. Designed for precision and clarity, this lens series offers a versatile range from 6mm to 100mm with 13 distinct models. The adjustable iris and focus empower users to fine-tune their imaging requirements, ensuring optimal performance across various applications.
These lenses boast remarkable features such as F1.4 brightness (exclusive to SV-5026H), accommodating 2/3" sensor support. The f75mm and f100mm models extend compatibility to 1" sensors, broadening the scope of industrial and machine vision applications. Every model is filter-ready, with VST filters readily available for enhanced customization. Aegis Electronic Group takes pride in delivering optics solutions that meet the rigorous demands of modern industries, providing high-resolution imaging that transcends expectations.
Features:
- F1.4 brightness (exclusive to SV-5026H)
- Adjustable iris and focus
- 2/3" sensor support
- f6mm to f100mm, 13 models
- Filter-ready (VST filters available)
- f75mm and f100mm models support 1" sensor
Applications:
- Industrial automation
- Robotics
- Quality control
- Inspection systems
- Surveillance
- Manufacturing processes
| Focal Length | 50mm |
| Maximum Aperture Ratio | 1:2.6 |
| Aperture | F 2.6 ~ Close |
| Angle Of View (1.1") | 8.1° x 9.6° (Diagonal: 12.5°) |
| M.O.D | 500 mm |
| TV Distortion (1.1") | 0.01 % |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3" |
| Filter Thread | M 27 P= 0.5 |
| Weight (approx.) | 54 g |
| Dimension | Ø 29 (max.) x L = 39 mm |
