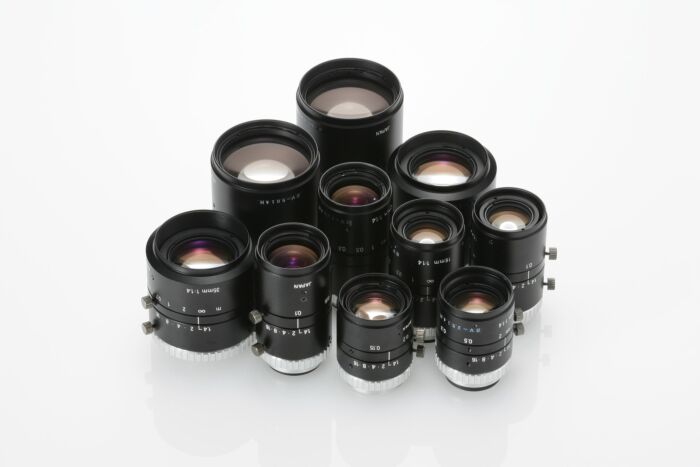

VS Technology SV-5014H Megapixel Fixed Focal Length Lens
Unveiling the Versatile VS Technology SV-5014H Megapixel Fixed Focal Length Lens
Discover unparalleled imaging excellence with the VS Technology SV5014H Megapixel Fixed Focal Length Lens, available at Aegis Electronic Group. This lens series boasts a remarkable f6mm to f100mm range across 13 models, catering to diverse industrial and machine vision applications. Offering adjustable iris and focus, these lenses provide precise control over imaging parameters for optimal results. With support for 2/3" sensors and impressive F1.4 brightness (except SV-5026H), they excel in capturing high-resolution visuals.
All 13 models are filter-ready, accommodating VST filters for enhanced customization. Notably, the f75mm and f100mm variants extend their prowess by supporting 1" sensors, ensuring compatibility with a broad spectrum of imaging systems. Ideal for industrial settings, these lenses find applications in robotics, quality control, and automated inspection processes.
Features:
- F6mm to F100mm range (13 models)
- Adjustable iris and focus
- F1.4 brightness (except SV-5026H)
- 2/3" sensor support
- Filter-ready design
- Compatibility with VST filters
- Enhanced support for 1" sensors (f75mm and f100mm models)
Applications:
- Robotics
- Quality control
- Automated inspection
- Industrial imaging systems
- Machine vision applications
| Focal Length | 50mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F 1.4 ~ 16 |
| Angle Of View (1.1") | 8.1° x 9.6° (Diagonal: 12.5°) |
| M.O.D | 300 mm |
| TV Distortion (1.1") | 0.02 % |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3" |
| Filter Thread | M 40.5 P= 0.5 |
| Weight (approx.) | 165 g |
| Dimension | Ø 44 (max.) x L = 57.5 mm |
