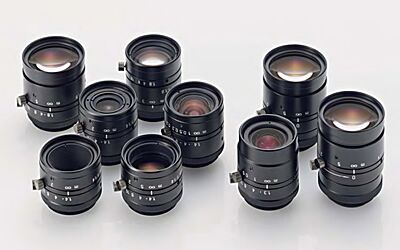

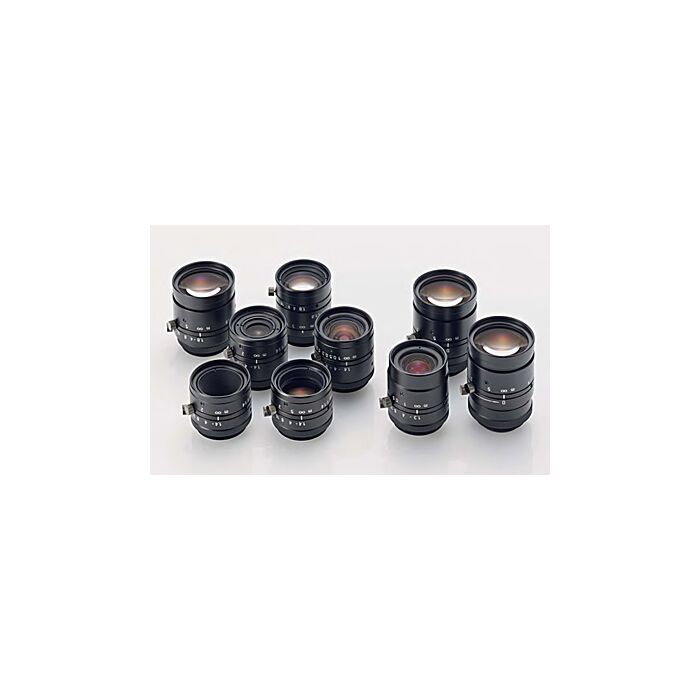

VS Technology SV-3518V Compact & Wide Angle Fixed Focal Length Lens

Elevate your imaging capabilities with VS Technology SV-3518V Compact & Wide Angle Lenses from Aegis Electronic Group. Unrivaled precision, versatile focal lengths, and seamless connections for industrial and machine vision applications.

*Product is discontinued

SKU
SV-3518V

Unlock Precision with VS Technology SV-3518V Compact & Wide Angle Lenses

Experience the pinnacle of imaging precision with VS Technology's SV-3518V Compact & Wide Angle Fixed Focal Length Lenses, available through Aegis Electronic Group. These lenses redefine industry standards, offering a versatile range from f3.5 to f100mm across 11 models, providing optimal solutions for 1/2" to 1" sensors. With an Fno1.4 brightness, these C-Mount lenses deliver exceptional clarity and detail.

Built for industrial and machine vision applications, the SV-3518V lenses boast a compact design without compromising performance. The lenses establish connections seamlessly, fitting into diverse setups effortlessly. These lenses find their applications in robotics, quality control, and automated inspection systems, ensuring superior image quality and accuracy. Their precision optics and wide-angle capabilities make them indispensable for tasks requiring detailed imaging in tight spaces.

Features:

  • Wide focal length range (f3.5 - f100mm)
  • Compact C-Mount design
  • High brightness (Fno1.4)
  • Suitable for 1/2" to 1" sensors
  • Precision optics with 11 available models


Applications:

  • Robotic vision systems
  • Quality control inspections
  • Automated inspection processes
  • Industrial imaging solutions
Focal Length 35mm
Maximum Aperture Ratio 1:1.8
Aperture F 1.8 ~ Close
Angle Of View (1.1") 11.7° x 13.8° (Diagonal: 18.0°)
M.O.D 300 mm
TV Distortion (1.1") -0.12 %
Operation Manual (Lock screw M1.7)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 2/3"
Filter Thread M 27 P= 0.5
Weight (approx.) 48 g
Dimension Ø 29 (max.) x L = 33.5 mm
