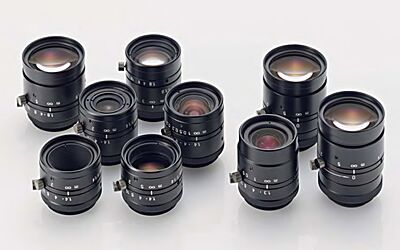

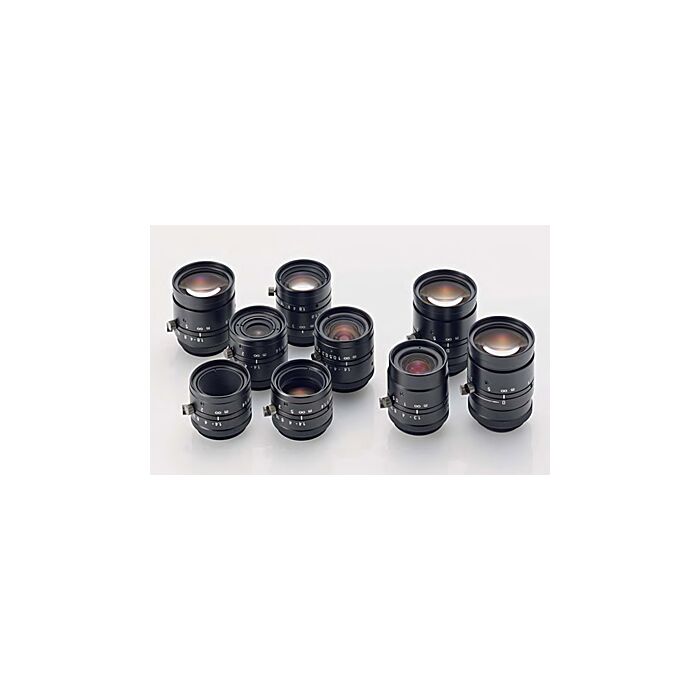

VS Technology SV-2514V Compact & Wide Angle Fixed Focal Length Lens
Precision Imaging with VS Technology SV-2514V Compact & Wide Angle Fixed Focal Length Lenses
Discover the superior imaging capabilities of VS Technology's SV-2514V Compact & Wide Angle Fixed Focal Length Lenses, available through Aegis Electronic Group. These lenses, part of the basic standard fixed focal length series, support 1/2" - 1" sensors and offer a versatile range from f3.5 to f100mm with 11 available models. With an impressive Fno1.4 brightness, these C-Mount lenses provide optimal optical precision for industrial and machine vision applications.
The lenses are designed to meet the demanding requirements of industrial automation, offering a perfect balance between compact form factor and wide-angle coverage. The C-Mount ensures compatibility with various camera systems. Whether you're engaged in robotics, quality control, or inspection tasks, these lenses provide the imaging solutions you need for accurate and efficient results.
Features:
- Basic standard fixed focal length lenses
- Supports 1/2" - 1" sensors
- Versatile focal lengths from f3.5 to f100mm
- Fno1.4 brightness for optimal performance
- C-Mount for compatibility with various camera systems
Applications:
- Industrial automation
- Machine vision systems
- Robotics
- Quality control
- Inspection tasks
| Focal Length | 25mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F 1.4 ~ Close |
| Angle Of View (1.1") | 16.1° x 19.0° (Diagonal: 24.9°) |
| M.O.D | 500 mm |
| TV Distortion (1.1") | -0.33 % |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Filter Thread | M 27 P= 0.5 |
| Weight (approx.) | 36 g |
| Dimension | Ø 29.5 (max.) x L = 24.5 mm |
