VS Technology SV-1614V Compact & Wide Angle Fixed Focal Length Lens

Unlock unparalleled precision with VS Technology SV-1614V Compact & Wide Angle Lenses. Elevate your industrial imaging with 11 models, Fno1.4 brightness, and C-Mount compatibility. Explore clarity in confined spaces and diverse lighting for optimal machine vision.

*Product is discontinued

SKU
SV-1614V

Unleash Precision with VS Technology SV-1614V Compact & Wide Angle Lenses

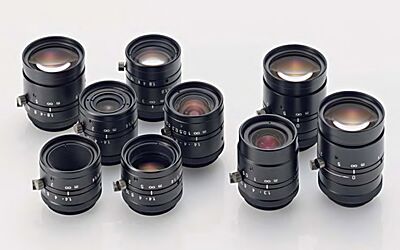

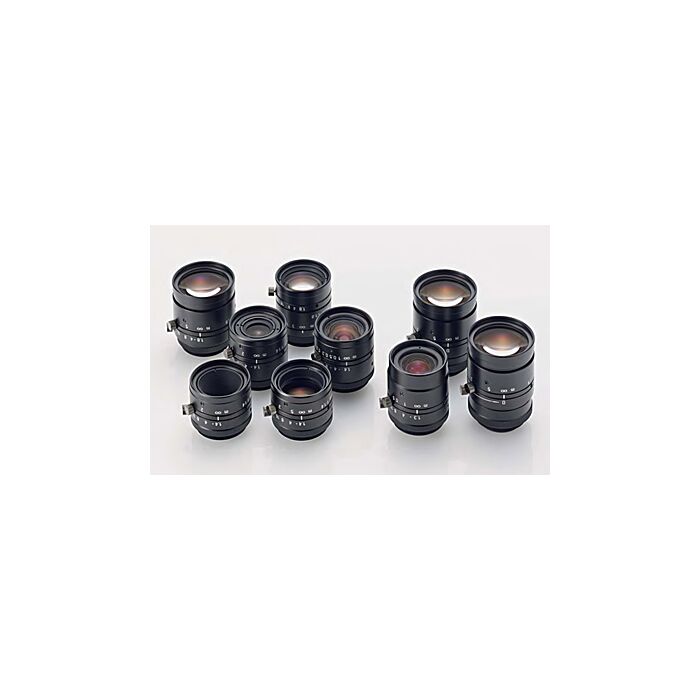

Aegis Electronic Group presents the VS Technology SV-1614V Compact & Wide Angle Fixed Focal Length Lenses, setting the standard for industrial camera optics. With support for 1/2" - 1" sensors and 11 available models ranging from f3.5 to f100mm, these lenses deliver exceptional image clarity. The Fno1.4 brightness ensures optimal performance in various lighting conditions. Designed with C-Mount compatibility, these lenses cater to diverse industrial imaging setups.

The SV-1614V lenses boast precision manufacturing, making them ideal for applications in factory automation and robotic vision. Their compact form factor and wide-angle capabilities make them versatile for use in confined spaces while capturing a broader field of view. The lenses ensure high-quality imaging in demanding industrial environments, providing the clarity needed for critical inspections and machine vision tasks.

Features:

  • 11 models (f3.5 - f100mm)
  • Fno1.4 brightness
  • Compact form factor
  • Wide-angle capabilities
  • C-Mount compatibility


Applications:

  • Factory Automation
  • Robotic Vision
  • Precision Inspection
  • Machine Vision Systems
  • Industrial Imaging
Focal Length 16mm
Maximum Aperture Ratio 1:1.4
Aperture F 1.4 ~ Close
Angle Of View (1.1") 24.6° x 28.9° (Diagonal: 37.3°)
M.O.D 400 mm
TV Distortion (1.1") -0.08 %
Operation Manual (Lock screw M1.7)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 2/3"
Filter Thread M 27 P= 0.5
Weight (approx.) 34 g
Dimension Ø 29.5 (max.) x L = 24 mm
