VS Technology SV-1614H Megapixel Fixed Focal Length Lens

Experience precision imaging with VS Technology SV-1614H Megapixel Lens. Versatile, adjustable, and filter-ready, these lenses are tailored for industrial vision. Explore our range at Aegis Electronic Group and elevate your vision system.
SKU
SV-1614H

Unleash Precision with SV-1614H Megapixel Fixed Focal Length Lens

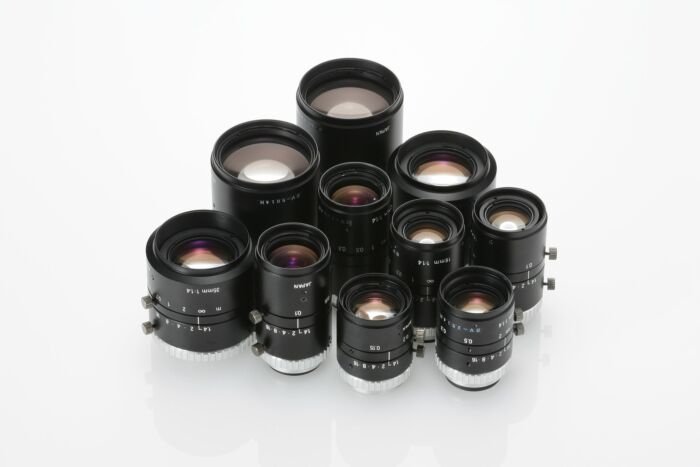

Immerse yourself in the pinnacle of optical performance with the VS Technology SV-1614H Megapixel Fixed Focal Length Lens, now available at Aegis Electronic Group. These lenses redefine clarity and precision in industrial imaging, boasting a remarkable F1.4 brightness across a focal range from 6mm to 100mm. With 13 meticulously crafted models, each lens offers adjustable iris and focus, providing unparalleled flexibility for a myriad of industrial and machine vision applications.

Designed to support 2/3" sensors, the f75mm and f100mm models extend their compatibility to 1" sensors, ensuring adaptability to diverse imaging setups. The robust construction of these lenses, coupled with their advanced optics, guarantees exceptional performance even in the most demanding environments. Every model is filter-ready, accommodating VST filters for tailored imaging solutions.

From robotics and quality control to automation and beyond, the SV-1614H lenses deliver unmatched precision. Aegis Electronic Group invites you to explore this range, providing a comprehensive selection of vision system components. Elevate your imaging capabilities and discover a new standard in industrial optics with the VS Technology SV-1614H Megapixel Fixed Focal Length Lens.

Features:

  • F1.4 brightness
  • Adjustable iris and focus
  • Filter-ready design
  • Supports 2/3" sensors (f75mm and f100mm models support 1" sensors)
  • Wide focal range from 6mm to 100mm
  • 13 models for diverse applications

Applications:

  • Robotics
  • Quality control
  • Automation
  • Industrial imaging
  • Machine vision systems

Focal Length 16mm
Maximum Aperture Ratio 1:1.4
Aperture F 1.4 ~ 16
Angle Of View (1.1") 24.8° x 29.2° (Diagonal: 37.7°)
M.O.D 100 mm
TV Distortion (1.1") -0.16 %
Operation Manual (Lock screw M1.7)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 2/3"
Filter Thread M 27 P= 0.5
Weight (approx.) 76 g
Dimension Ø 30 (max.) x L = 47.5 mm
