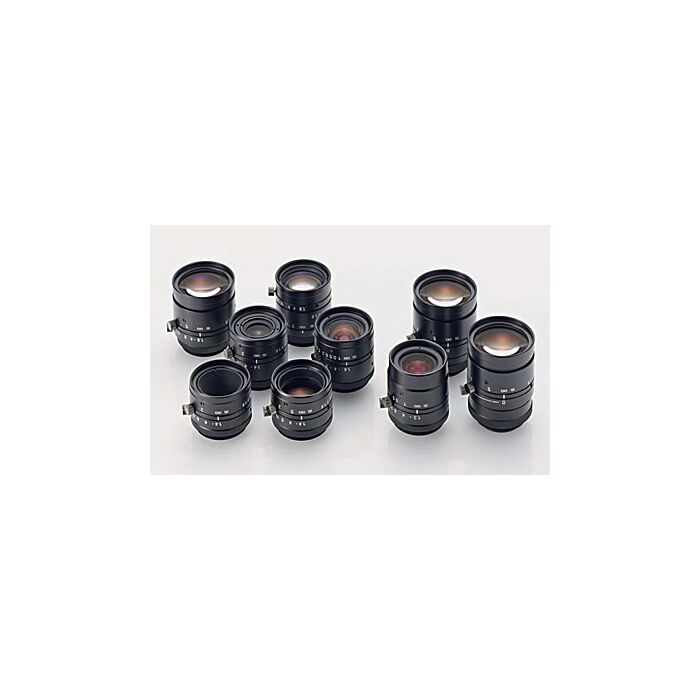

VS Technology SV-1214V Compact & Wide Angle Fixed Focal Length Lens
Unlocking Precision and Versatility: VS Technology SV-1214V Compact & Wide Angle Fixed Focal Length Lenses
Discover the pinnacle of imaging precision with VS Technology's SV-1214V Compact & Wide Angle Fixed Focal Length Lenses, offered exclusively by Aegis Electronic Group. These lenses, available in 11 distinct models, cater to a range of industrial applications with their 1/2" to 1" support. Ranging from f3.5 to f100mm, these C-Mount lenses provide optimal optical performance with an impressive Fno1.4 brightness.
The SV-1214V lenses are meticulously engineered to deliver unparalleled clarity and versatility for machine vision applications. Their C-Mount compatibility ensures easy integration with a variety of industrial cameras. Whether you're engaged in quality control, robotics, or automation, these lenses offer a crucial edge in precision imaging. The lenses' wide-angle capability opens new dimensions in capturing expansive scenes with exceptional detail.
Features:
- 11 models: Focal lengths from f3.5 to f100mm
- Fno1.4 brightness for optimal imaging
- C-Mount compatibility for seamless integration
- Versatile 1/2" to 1" sensor support
Applications:
- Quality control in manufacturing
- Robotics and automation
- Industrial imaging and inspection
- Machine vision systems
| Focal Length | 8mm |
| Maximum Aperture Ratio | 1:1.3 |
| Aperture | F 1.3 ~ Close |
| Angle Of View (1.1") | 49.0° x 57.2° (Diagonal: 72.3°) |
| M.O.D | 200 mm |
| TV Distortion (1.1") | -1.57 % |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3" |
| Filter Thread | M 25.5 P= 0.5 |
| Weight (approx.) | 54 g |
| Dimension | Ø 29.5 (max.) x L = 34 mm |
