VS Technology SV-0814H Megapixel Fixed Focal Length Lens
Unleashing Precision: VS Technology SV-0814H Megapixel Lens
Discover unrivaled imaging precision with the VS Technology SV-0814H Megapixel Fixed Focal Length Lens. Boasting F1.4 brightness, this lens delivers exceptional clarity and detail for industrial and machine vision applications. With support for 2/3" sensors and a versatile range from f6mm to f100mm across 13 models, the lens ensures optimal imaging flexibility. The adjustable iris and focus provide unparalleled control, allowing users to fine-tune their vision systems with ease.

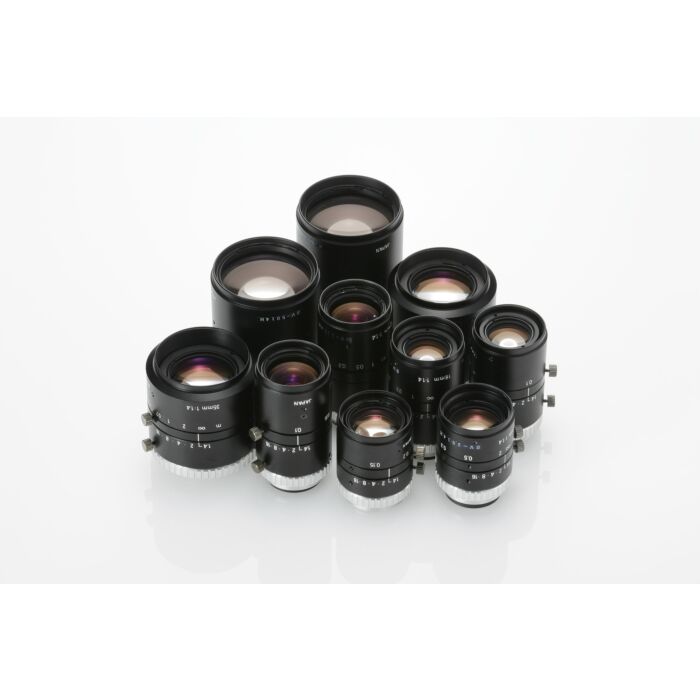

All 13 models are filter-ready, and VST filters are available for further customization. Notably, the f75mm and f100mm models are tailored to support 1" sensors, enhancing compatibility for diverse imaging setups. Whether your application demands high-resolution inspection, quality control, or precise measurements, the SV-0814H lens stands out as the pinnacle of machine vision optics.
Features:
- F1.4 brightness (exc:SV-5026H)
- Adjustable iris and focus
- Filter-ready models
- Support for 2/3" sensors
- Versatile f6mm to f100mm range
- VST filters compatibility
Applications:
- Quality control
- High-resolution inspection
- Precision measurements
- Imaging for manufacturing processes
- Robotics vision systems
| Focal Length | 8mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F 1.4 ~ 16 |
| Angle Of View (1.1") | 47.9° x 55.4° (Diagonal: 68.8°) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | 0.10 % |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3" |
| Filter Thread | M 35.5 P= 0.5 |
| Weight (approx.) | 124 g |
| Dimension | Ø 39 (max.) x L = 52.5 mm |
