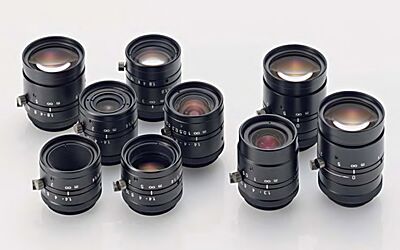

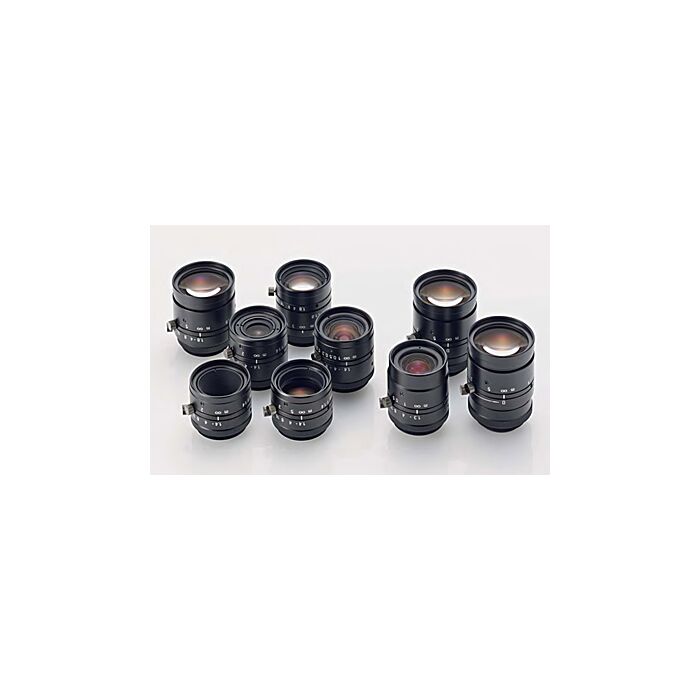

VS Technology SV-0614V Compact & Wide Angle Fixed Focal Length Lens

Discover the VS Technology SV-0614V Compact & Wide Angle Lenses at Aegis Electronic Group. Elevate industrial imaging with precision optics, C-Mount compatibility, and Fno1.4 brightness. Unleash clarity in machine vision applications today.

*Product is discontinued

SKU
SV-0614V

Unlock Precision with VS Technology SV-0614V Compact & Wide Angle Lenses

Elevate your industrial imaging capabilities with the VS Technology SV-0614V Compact & Wide Angle Fixed Focal Length Lenses, offered exclusively by Aegis Electronic Group. Designed as VS Technology's basic standard fixed focal length lenses, these optics support 1/2" to 1" sensors with f3.5 to f100mm focal lengths across 11 available models. Featuring an impressive Fno1.4 brightness, these lenses ensure optimal image clarity and precision in diverse industrial settings. With a C-Mount compatibility, they seamlessly integrate into existing camera setups, providing flexibility and ease of use.

The VS Technology SV-0614V lenses are crafted for demanding industrial and machine vision applications, offering high-resolution optics for unparalleled performance. These lenses establish a new standard for imaging solutions in factory automation, ensuring that every detail is captured with exceptional clarity. Elevate your imaging capabilities with the reliability and precision of VS Technology, available through Aegis Electronic Group.

Features:

  • Compact and wide-angle design
  • 1/2" to 1" sensor support
  • F3.5 to F100mm focal lengths
  • Fno1.4 brightness
  • C-Mount compatibility


Applications:

  • Machine vision systems
  • Factory automation
  • Industrial imaging
  • High-resolution inspections
  • Precision measurement systems
Focal Length 6mm
Maximum Aperture Ratio 1:1.4
Aperture F 1.4 ~ Close
Angle Of View (1.1") 43.4° x 56.6° (Diagonal: 68.5°)
M.O.D 200 mm
TV Distortion (1.1") -1.36 %
Operation Manual (Lock screw M1.7)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1.2"
Filter Thread M 27 P= 0.5
Weight (approx.) 47 g
Dimension Ø 29.5 (max.) x L = 30 mm
