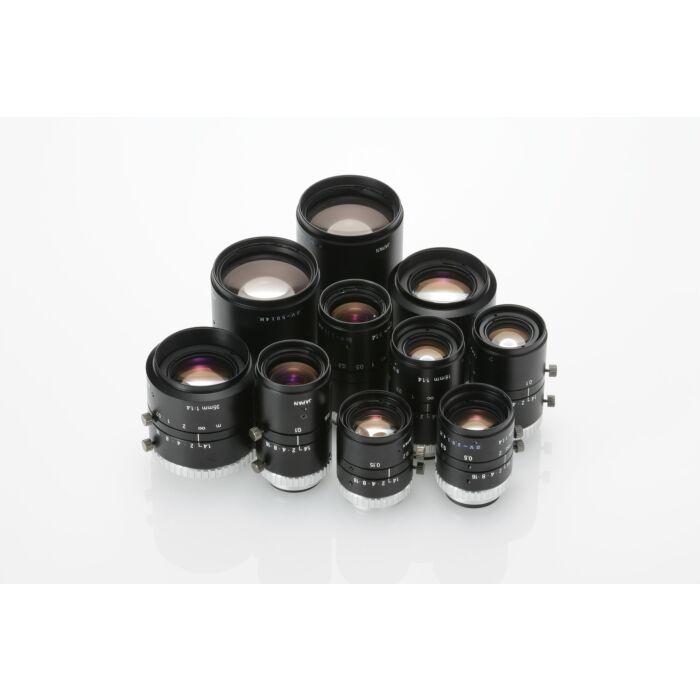

VS Technology SV-0614H Megapixel Fixed Focal Length Lens
Revolutionize Industrial Imaging with VS Technology SV-0614H Megapixel Lens
The VS Technology SV-0614H Megapixel Fixed Focal Length Lens, available in 13 models from f6mm to f100mm, is designed to elevate industrial and machine vision applications. With support for 2/3" sensors and exceptional F1.4 brightness, this lens ensures high-resolution imaging, especially in low-light conditions. Both iris and focus are adjustable, providing flexibility for various applications.
Connectivity is seamless, making it ideal for industrial cameras, and all models are filter-ready, with VST filters available. Notably, the f75mm and f100mm models support 1" sensors, broadening the range of compatible devices. Precision optics and durability characterize these lenses, ensuring consistent performance in demanding environments.
Features:
- Megapixel resolution
- Adjustable iris and focus
- Filter-ready models
- Wide range of focal lengths (f6mm to f100mm)
- Support for 2/3" sensors
- F1.4 brightness (excluding SV-5026H)
- Connectivity for industrial cameras
Applications:
- Machine vision systems
- Industrial automation
- Quality control
- Robotics
- Inspection systems
| Focal Length | 6mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F 1.4 ~ 16 |
| Angle Of View (1.1") | 60.3° x 69.0° (Diagonal: 83.8°) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | -0.06 % |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3" |
| Filter Thread | M 40.5 P= 0.5 |
| Weight (approx.) | 142 g |
| Dimension | Ø 42 (max.) x L = 57.5 mm |
