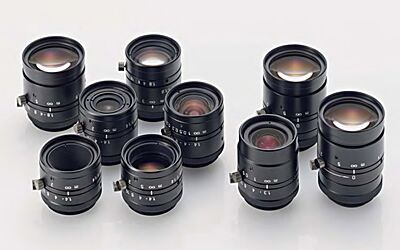

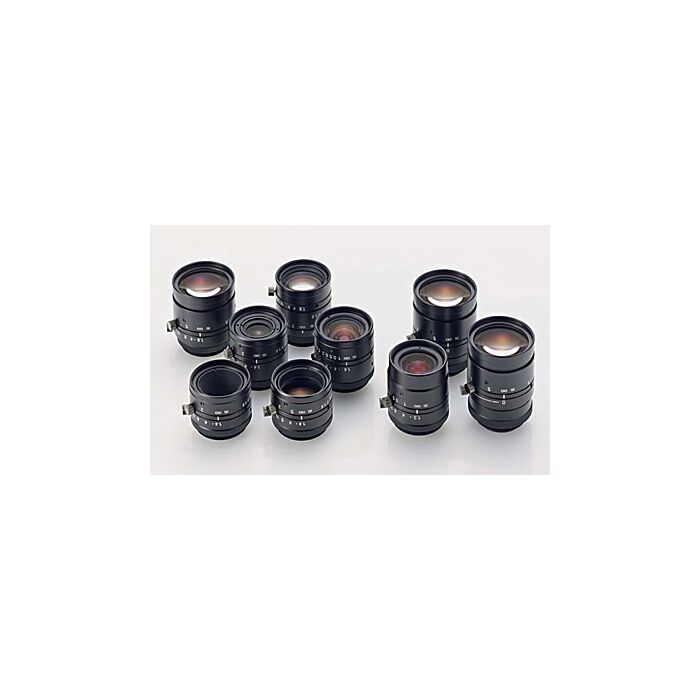

VS Technology SV-04514V Compact & Wide Angle Fixed Focal Length Lens
Unlock Precision Vision with VS Technology SV-04514V Lenses
Discover excellence in industrial imaging with VS Technology's SV-04514V Compact & Wide Angle Fixed Focal Length Lenses, offered by Aegis Electronic Group. These lenses, equipped with C-Mount technology, provide support for sensors ranging from 1/2" to 1". With a versatile focal length range from f3.5 to f100mm across 11 available models, they ensure optimal image clarity and adaptability for various applications.
The Fno1.4 brightness of these lenses enhances low-light performance, making them ideal for challenging industrial environments. The lenses boast a compact design, perfectly suited for space-conscious installations without compromising on image quality. Aegis Electronic Group brings you the reliability and precision of VS Technology optics, ensuring your machine vision applications benefit from top-notch imaging solutions.
Features:
- C-Mount technology
- 1/2" - 1" sensor support
- F3.5 - F100mm focal length
- 11 models available
- Fno1.4 brightness
- Compact design
Applications:
- Industrial automation
- Machine vision systems
- Imaging solutions
- Precision measurement
- Robotics
- Quality control
| Focal Length | 3.5mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F 1.4 ~ Close |
| Angle Of View (1.1") | 77.8° x 105.9° (Diagonal: 136.8°) |
| M.O.D | 200 mm |
| TV Distortion (1.1") | -14.65 % |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1.2" |
| Weight (approx.) | 52 g |
| Dimension | Ø 29.5 (max.) x L = 30.4 mm |
