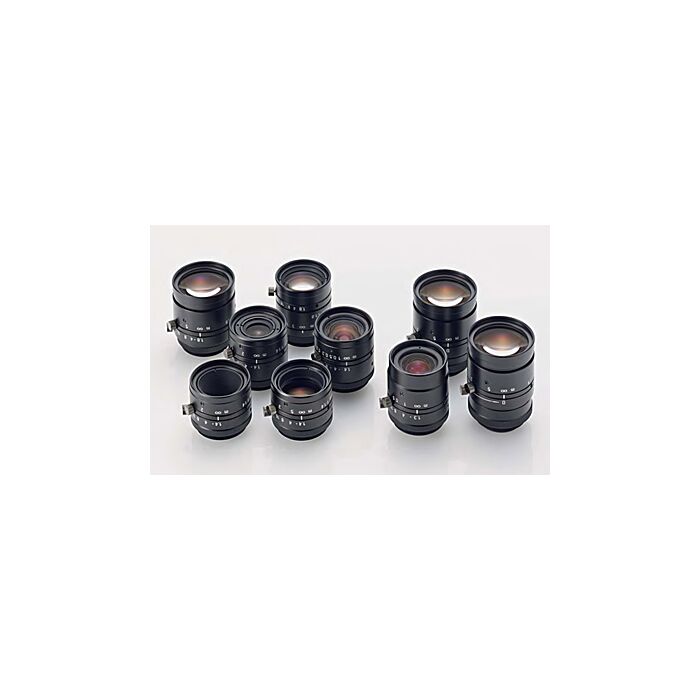

VS Technology SV-03514V Compact & Wide Angle Fixed Focal Length Lens
Unveiling the Versatility of VS Technology SV-03514V Compact & Wide Angle Fixed Focal Length Lenses
Delve into the world of industrial imaging with the VS Technology SV-03514V Compact & Wide Angle Fixed Focal Length Lenses, offered by Aegis Electronic Group. These lenses epitomize excellence as basic standard fixed focal length optics, supporting 1/2" to 1" sensors. With a remarkable focal length range from f3.5 to f100mm across 11 models, and an impressive Fno1.4 brightness, these lenses are ideal for capturing detailed images in diverse industrial applications.
Designed with a C-Mount for seamless integration, these lenses offer unparalleled optical connectivity. Their compact design and wide-angle capabilities make them suitable for various machine vision setups, ensuring precision and high resolution. Whether you're in manufacturing, robotics, or quality control, these lenses deliver exceptional imaging performance.
Features:
- Basic standard fixed focal length lenses
- Supports 1/2" to 1" sensors
- F3.5 to F100mm focal length range
- Fno1.4 brightness for high-quality imaging
- C-Mount for seamless integration
- Compact design for versatile applications
Applications:
- Manufacturing
- Robotics
- Quality control
- Industrial inspection
- Machine vision systems
| Focal Length | 3.5mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F 1.4 ~ Close |
| Angle Of View (1.1") | 77.8° x 105.9° (Diagonal: 136.8°) |
| M.O.D | 200 mm |
| TV Distortion (1.1") | -14.65 % |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1.2" |
| Weight (approx.) | 52 g |
| Dimension | Ø 29.5 (max.) x L = 30.4 mm |
