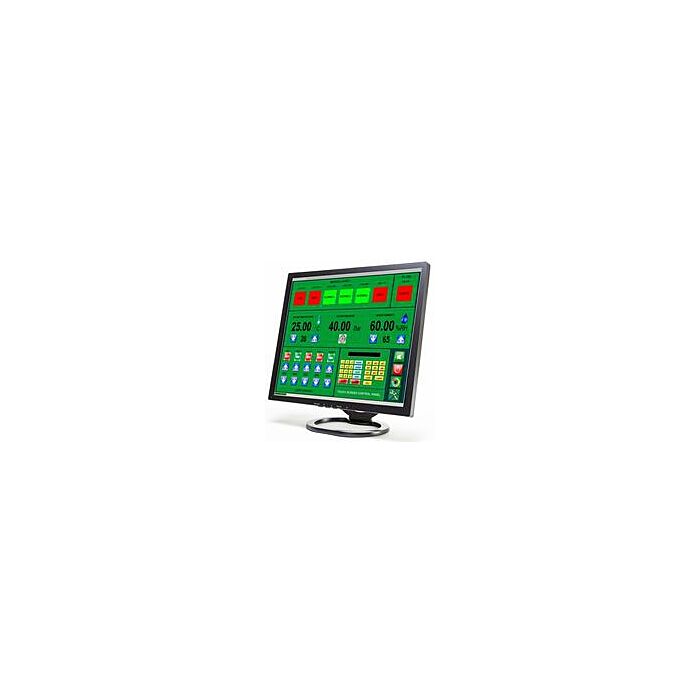

Tru-Vu VMTRWP-15 (VMTRWP15) 15” Panel-Mount Waterproof Touch Screen Monitor (Discontinued)
SKU
VMTRWP-15
Quick Overview
*Product is Discontinued, Call For Replacement Options
The VMTRWP-15 Series 15” industrial-grade touch screen monitors feature rugged NEMA 4X waterproof stainless steel panel-mount enclosures. The 5-wire resistive touchscreen can be activated by almost any object— gloved finger, stylus, pen, etc.
They are ideal for wash-down environments in manufacturing plants, food processing or any other areas where liquids, steam or moisture may damage standard monitors. An extensive list of OEM options enables you to customize the VMTRWP-15 Series monitors to meet your exact needs.
Features:
Applications:
| Model | VMTRWP-15C-24 VMTRWP-15R-24 |
| LCD Panel | 15” Color TN LCD Panel (LED Backlights) |
| Touch Technology | 5-Wire Resistive Touch |
| Tiouch Interface | USB |
| Resolution | 1024 x 768 (XGA) |
| Viewable Area | 11.97” (W) x 8.98” (H) (304.12 x 228.09 mm) |
| Pixel Pitch | 0.297mm |
| Display Color | 16.2 M |
| Aspect Ratio | 4:3 |
| Brightness | 350 nits |
| Contrast Ratio | 700:1 |
| Viewing Angle | 160° (H) x 150° (W) |
| Response Time | 8 msec Trf |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons |
| Video Inputs | VGA, DVI-D VGA, HDMI, DisplayPort |
| Power Requirement | 12-24VDC (2.5mm Barrel Plug) |
| Enclosure | Waterproof Stainless Steel Panel-Mount (Rear Clamp) |
| Rating | NEMA 4X / IP65 |
| Mounting | 100 x 100mm Rear VESA Mount Holes |
| Operating Temperature | 32 ̊ to 149 ̊F (0 to 65 ̊C) |
| Humidity | 8-90%RH |
| Shock | 50 G (20 msec, 1⁄2 sine) |
| Vibration | 1.5G RMS 10-200 HZ |
| Dimensions | 15.98” (W) x 12.39” (H) (405.80 x 314.60 mm) |
VMTRWP-15 Series · 15” Waterproof. Panel-Mount Touch Screen Monitor. · 5-Wire Resistive. Touch Screen. · Stainless Steel. Panel-Mount Enclosure · Waterproof. NEMA 4X/IP65.
