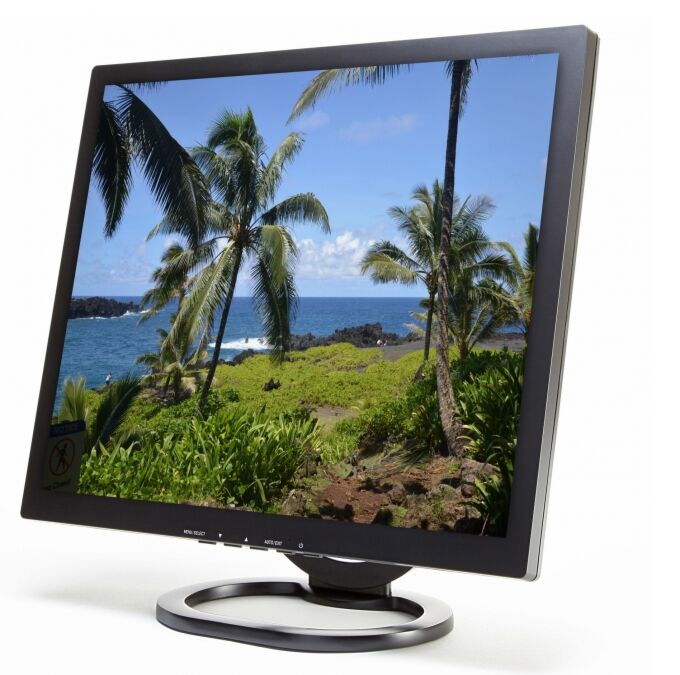

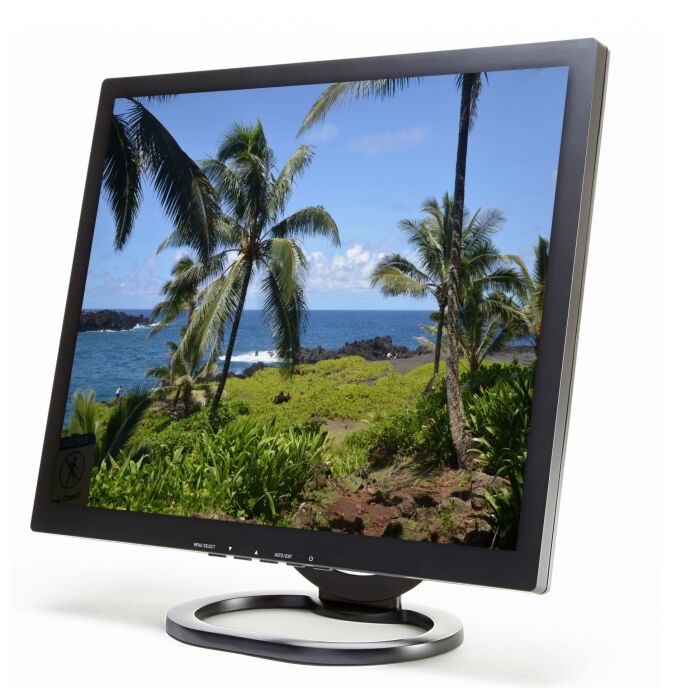

Tru-Vu VMM-19U (VMM19U) 19” TFT Active Matrix Color LCD Monitor (Discontinued)
SKU
VMM-19U-TruVu
Quick Overview
*Product is Discontinued, Call For Replacement Options
The VMM-19 Series monitors offer a variety of video inputs, 400 nits brightness, and reliable long-term performance.
TRU-Vu industrial LCD monitors are specifically designed for use in demanding industrial, commercial, medical and A/V applications.
Features:
Applications:
| Display | VMM-19U | VMM-19S | VMM-19B | VMM-19C |
| LCD Panel | 19” Color LCD; LED Backlights | |||
| Resolution | 1280 x 1024 (SXGA) | |||
| Viewing Area | 14.81” (W) x 11.85” (H) (376.17 x 300.98 mm) | |||
| Pixel Pitch | 0.294mm x 0.294mm | |||
| Display Colors | 16.7 Million | |||
| Aspect Ratio | 4:3 (5:4) | |||
| Brightness | 400 nits | |||
| Contrast Ratio | 1,000:1 | |||
| Viewing Angle | 170° (H) x 160° (V) | |||
| Response Time | 5 msec Trf | |||
| Control | OSD (On-Screen Display) via Front Panel Pushbuttons | |||
| Video Inputs | VGA, HDMI, BNC Loop-Thru | VGA, S-Video, Composite NTSC/PAL Auto-Recognition | VGA, Composite (BNC Loop-Thru) NTSC/PAL Auto | VGA-DVI-D |
| Analog Video In / Out | 1 BNC Input/1 BNC Output | 1 BNC Input | 1 BNC Input/1 BNC Output | ----- |
| In / Output Impedance | 75Ω / Auto Terminating Output | ----- | ||
| Audio | Optional | Dual Front Speakers | ||
| Power Requirement | 12 VDC (90-240 VAC with Included Power Brick) | |||
| Power Consumption | 37 Watts | |||
| Enclosure | ABS | |||
| Mounting | Via Included Mounting Stand or Rear 75 x 75mm Rear VESA Mount Holes | |||
| Operating Temperature | 32° to 140° F (0° to 60° C) | |||
| Operating Altitude | To 18,000 Ft. | |||
| Humidity | 5-90% RH | |||
| Shock | 50 G (20 msec, 1/2 sine) | |||
| Vibration | 1.5G RMS 10-200 HZ | |||
| Approvals | UL/cUL, FCC, CE, TUV, RoHS | |||
| Dimensions | 16.5” (W) x 13.75” (H) x 1.95” (D) (419.1 x 349.25 x 49.53 mm) | 16.75” (W) x 14.83” (H) x 1.95” (D) (425.45 x 376.68 x 49.52 mm) | ||
| Weight | 11 lbs. / 5 kg | |||
| Warranty | 3 Years | |||
