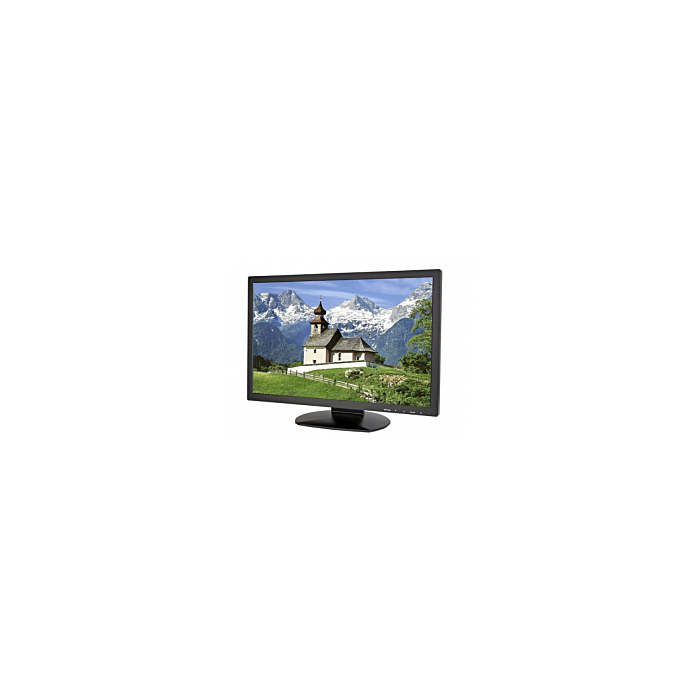

Tru-Vu VM-32Z (VM32Z) 32” Customizable Industrial HD LCD Monitor
SKU
VM-32Z
$1,415.00
Quick Overview
The VM-32D HD monitor is ideal for industrial, commercial, A/V, broadcast, and other applications. It provides crystal-clear HD images, picture-in-picture, and more. It is available in a standard enclosure, open frame or touch screen configurations.
All TRU-Vu industrial LCD monitors are specifically designed for use in demanding industrial, commercial, medical, and A/V applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
Features:
Applications:
| Model | VM-32Z |
| LCD Panel | 32” TFT Color MVA-Type; LED Backlights |
| Display Resolution | 1920 x 1080 (Full HD) |
| Viewable Area | 27.48” (W) x 15.46” (H) (698.4 x 392.9 mm) |
| Pixel Pitch | 0.364mm X 0.364mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 350 nits |
| Contrast Ratio | 3,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 6.5 msec (gray to gray) |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons or Remote Control |
| VGA Inputs | VGA, HDMI, HD-SDI, Composite BNC |
| VGA Outputs | HD-SDI, Composite (BNC) |
| In / Out Impedance | 75Ω / Auto Terminating Output |
| Power Requirement | 24 VDC / 90-240VAC |
| Power Consumption | 100 Watts |
| Enclosure | Black Powder-Coated Steel |
| Mounting | Mounting Stand (shown) Included; VESA Mounting 100x100mm, 100x200mm, 200x200mm |
| Operating Temperature | +32° to +122° F (0º to +50º C) |
| Humidity | 10-90% RH |
| Shock | 50 G (1/2 sine, 20 msec) +/-X, +/-Y, +/-Z (one time each axis) |
| Vibration | 1.0 G RMS (Random Wave, 10-300Hz) 10 minutes each axis (X,Y,Z) |
| Approvals | UL/cUL, FCC, CE, RoHS |
| Dimensions | 29.33” (W) x 17.8” (H) x 2.2” (D) (745 x 452 x 56.80 mm) |
| Weight | 32 lbs. (14.5 kg) |
| Warranty | 3-Years |
