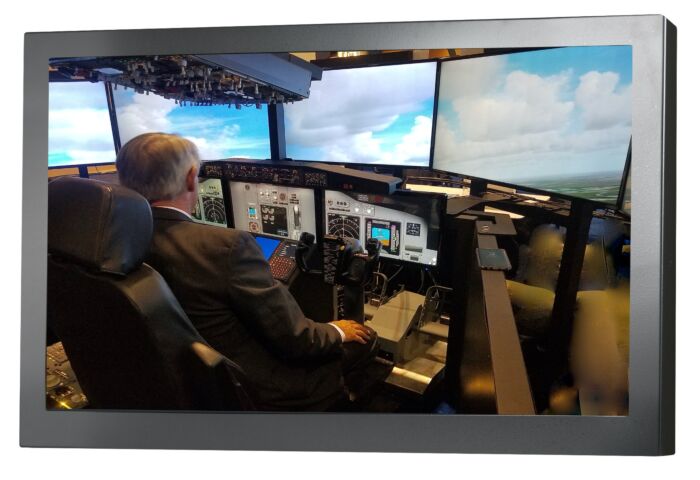

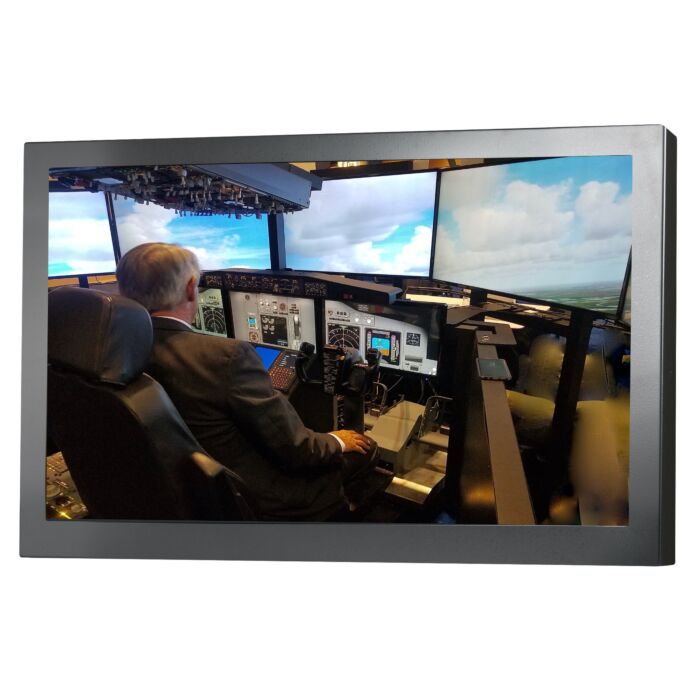

Tru-Vu VM-10.1R 10.1” Industrial-Grade LCD Monitor (Discontinued)
*Product is discontinued, Replacement Option: VM-10.1U
The VM-10.1R is a rugged, industrial-grade 10.1” LCD monitor. It can accept video inputs up to 1920 x 1080 full HD resolution. It will display up to its full 1280 x 800 native resolution. HDMI and VGA inputs enable integration with a wide range of systems and devices.
The VM-10.1R also features TRU-Vu’s exclusive TRU-Tuf treatment, which ensures maximum resistance to shock and vibration. The TRU-Tuf process includes: RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged powder-coated steel enclosure, ensures the VM-10.1R will provide years of reliable service.
The VM-10.1R is designed for 24/7/365 operation in a wide range of demanding industrial, military, medical, A/V and commercial applications, and is backed by a full 3 Year Warranty.
Features:
Applications:
VM-10.1R | |
| LCD Panel | 10.1” IPS Panel Color LCD; LED Backlights |
| Resolution | 1280 x 800 |
| Display Area | 8.54” (W) x 5.34” (H) (216.96 x 135.60 mm) |
| Pixel Pitch | 0.00222” (W) x 0.00667” (H) (0.0565 x 0.1695 mm) |
| Display Colors | 16.9m |
| Aspect Ratio | 16:10 |
| Brightness | 350 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170° (H) x 170° (V) |
| Response Time | 25 msec Trf |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI |
