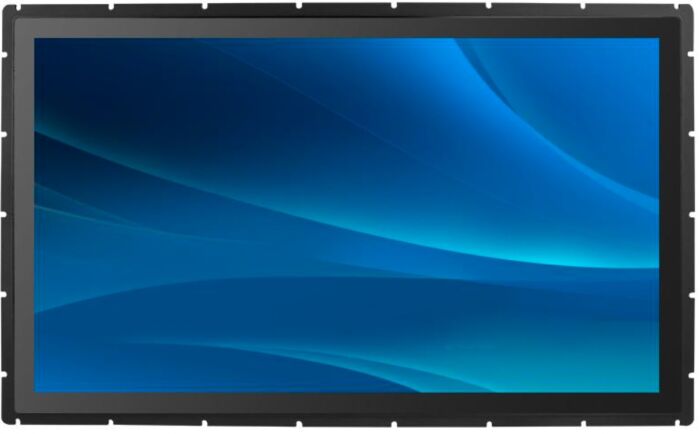

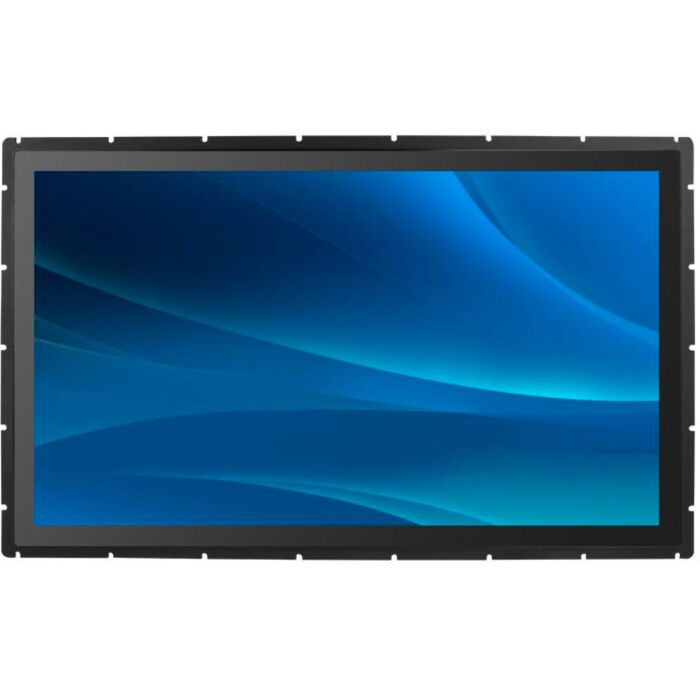

Tru-Vu VL-SRMHTP-32A 32" Sunlight Readable Touchscreen Monitor | 1500 Nit IP65 P-CAP Touch Display
The VL-SRMHTP-32A is a professional-grade 32" sunlight readable touchscreen monitor designed for applications where standard LCD displays are not bright enough to perform reliably. With a powerful 1500 nit LED-backlit LCD panel, this display produces clear, sharp images even in direct sunlight or high ambient-light conditions.
Built for industrial, commercial, and outdoor environments, the VL-SRMHTP-32A combines Full HD 1920 x 1080 resolution, a wide 16:9 aspect ratio, and projected capacitive touch technology for responsive, modern touch control. The P-CAP touchscreen supports operation with dry or wet fingers and allows up to 10 simultaneous touch points, making it a strong fit for interactive control systems, rugged kiosks, command centers, security stations, and embedded display applications.
This 32" rugged touchscreen monitor features an IP65-rated edge-to-edge all-glass front surface, helping protect the display from dust, water, liquids, and harsh operating conditions. The anti-glare tempered glass improves visibility in bright environments, while the zero-bezel painted steel enclosure allows clean flush mounting into panels, walls, cabinets, doors, and equipment enclosures.
For added durability, the VL-SRMHTP-32A is built with industrial-grade components and receives a ruggedized treatment that helps secure internal wiring, connections, screws, and critical components against vibration and shock. With HDMI, DVI, and VGA video inputs, this sunlight readable touchscreen monitor can be integrated into a wide range of industrial computers, surveillance systems, automation equipment, transportation displays, and machine control platforms.
Key Features:
- 32" sunlight readable touchscreen monitor for indoor and outdoor applications
- 1500 nit high-brightness LCD panel for direct sunlight and high ambient-light visibility
- Full HD 1920 x 1080 resolution with 16:9 widescreen aspect ratio
- Projected capacitive touchscreen with USB touch interface
- Supports wet finger operation and multi-touch control
- Up to 10 simultaneous touch points
- IP65-rated edge-to-edge all-glass front surface
- Anti-glare tempered glass for improved outdoor readability
- Zero-bezel painted steel enclosure for clean flush-mount installation
- HDMI, DVI, and VGA video inputs for flexible system integration
- 178° horizontal and vertical viewing angles
- Integrated ambient light sensor
- Rugged steel enclosure for shock and vibration resistance
- Designed for kiosks, outdoor control panels, automation, surveillance, transportation, and industrial display systems
Applications:
- Outdoor touchscreen kiosks
- Industrial control panels
- Machine vision display stations
- Factory automation HMI systems
- Security and surveillance monitoring
- Transportation and intelligent traffic systems
- UAV, robotics, and field control stations
- Medical and laboratory equipment displays
- Marine, outdoor, and rugged enclosure installations
- Public information displays and interactive signage
- Command centers and operator workstations
| Model | VL-SRMHTP-32A |
| Display Size | 32" Color LCD with LED Backlights |
| Touch Screen Type | Projected Capacitive Touchscreen |
| Touch Interface | USB |
| Resolution | 1920 x 1080p Full HD |
| Viewing Area | 27.5" W x 15.5" H / 698.4 W x 392.85 H mm |
| Pixel Pitch | 0.294 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 1500 nits |
| Ambient Light Sensor | Standard |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178° Horizontal x 178° Vertical |
| Response Time | 6.5 ms Trf |
| Video Input | VGA, DVI, HDMI |
| Power Requirement | 24VDC / 100-240VAC via Included AC Adapter |
| Enclosure | Zero-Bezel / Painted Steel |
| Enclosure Rating | IP65 Front |
| Mounting | Perimeter Mounting Flanges |
| Operating Temperature | 32°F to 122°F / 0°C to +50°C |
| Dimensions | 30.71" W x 18.66" H x 3.31" D / 780 W x 474 H x 84.2 D mm |
| Approvals | CCC, UL, FCC, CE, CB, RoHS |
| Warranty | 1-Year |
