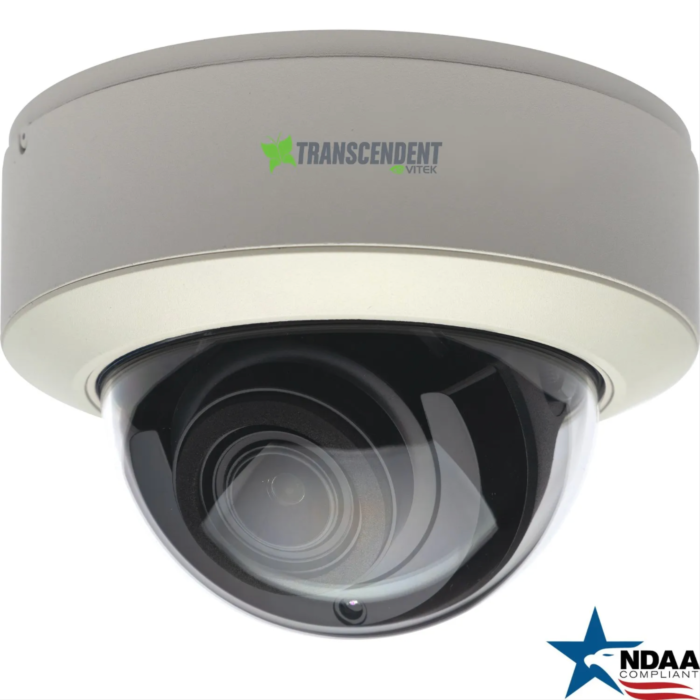

Vitek VTD-TND8RMEA Transcendent Series 8 MP Indoor/Outdoor WDR IP Motorized Dome Camera with Matrix IR's
Vitek VTD-TND8RMEA Transcendent Series 8MP WDR IP Motorized Dome Camera
The Vitek VTD-TND8RMEA Transcendent Series 8MP Indoor/Outdoor WDR IP Motorized Dome Camera offers exceptional clarity and performance for a wide range of surveillance applications. With its 1/2.8” 8.0 MegaPixel (4K) CMOS image sensor, this camera delivers stunning 8MP resolution (3840 × 2160) at up to 20fps, making it perfect for high-definition monitoring. The 2.8-12mm motorized varifocal lens provides flexibility in adjusting the field of view, while the Matrix IR illuminates up to 165 feet in complete darkness.
The Vitek VTD-TND8RMEA’s advanced features, including True Wide Dynamic Range (120dB), true mechanical day/night function, and XD-DNR noise reduction, ensure clear image capture even in challenging lighting conditions. This camera is built for durability with an IP67 weatherproof and IK10 impact-resistant housing, making it ideal for both indoor and outdoor environments. It also supports programmable analytics such as region intrusion detection and line crossing, providing enhanced security monitoring.
This NDAA-compliant camera is compatible with PoE, has a built-in MicroSD card slot for local recording, and offers remote viewing via CMS, Internet Explorer, and mobile apps, ensuring seamless integration into any security system. The Vitek VTDTND8RMEA is a reliable choice for retail, corporate, and residential surveillance.
*Available in Ivory or Charcoal Color (VTD-TND8RMEAB)
Features:
- 1/2.8” 8.0 Megapixel (4K) CMOS Image Sensor
- Resolution: 8MP (3840 × 2160) at 1~20fps
- Motorized 2.8~12mm Varifocal Lens
- Matrix IR with up to 165’ range for night vision
- True Wide Dynamic Range (120dB) for enhanced image quality
- True Day/Night by ICR (Infrared Cut Filter)
- XD-DNR (3D & 2D-DNR) Noise Reduction
- Programmable Analytics: Intrusion Detection, Scene Change, Line Crossing
- H.265+/H.265/H.264+/H.264/MJPEG compression
- IP67 Weatherproof and IK10 Impact Resistant
- MicroSD Card Slot for Local Storage (up to 256GB)
- PoE and 12VDC power options
- Remote Viewing via CMS, IE, and mobile apps (iOS/Android)
- ONVIF compliant for integration with other security systems
- NDAA compliant for federal use
Applications:
- Commercial and corporate buildings surveillance
- Retail stores and shopping centers security
- Industrial and manufacturing facility monitoring
- Residential neighborhood security
- Parking lot and garage surveillance
- Government and public infrastructure security
- Warehouses and distribution centers
- Schools and university campus monitoring
- Healthcare facilities and hospital security
- Hotels and hospitality industry security systems
| Image Sensor | 1/2.7" 8.0 Megapixel[4K] Progressive Scan CMOS |
| Image Size | 8 MegaPixel (3840 × 2160) |
| Resolution | Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ),5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240 |
| Minimum Illumination | 0.02 lux @ F1.6, AGC ON; 0 lux with IR, [email protected], AGC ON; 0 lux with IR |
| Electronic Shutter Speed | 1s ~ 1 / 100000s |
| Lens | 2.8~12mm Motorized Varifocal Lens |
| Day/Night | True Day/Night by ICR |
| IR LED's | 3 Matrix IRs |
| IR Distance | Up to 165' |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 /MJPEG |
| Audio Compression | G.711A / G.711U |
| Main Stream | 8MP [4K] (1~20fps) / 6MP / 5MP / 720P / D1 / CIF / 480 x 240 (1~30fps) |
| Sub Stream, Third Stream | 60Hz: 720P/D1/480 × 240(1~30fps), 60Hz: D1/CIF/480 × 240 (1~30fp) |
| Bit Rate / Type | 64 Kbps ~ 12 Mbps / VBR + CBR |
| WDR | 120dB Super WDR |
| DNR | 3D-DNR |
| Backlight Compensation | Yes |
| Highlight Compensation | Yes |
| Defog | Yes |
| Image Setting | ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; Adjustable through client software or browser |
| Analytics | Region Intrusion, Scene Change Detection, Line Crossing, Video Blur, Video Color Cast Detection |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full |
| General Functions | Watermark, IP Filter, Video Mask, Illegal Login Lock |
| Region of Interest (ROI) | Each ROI to be configured separately |
| Hardware Reset | Yes |
| Analog Video Output | No |
| Audio | 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic* + CVBS Alarm 1 Ch. Alarm In + 1 Ch. Alarm Out |
| Local Storage | Built-in Micro SD card slot up to 256GB |
| Remote Viewing | CMS / Web Browser / Mobile (iOS/Android) |
| Supported Browsers | ONVIF |
| Weather Resistance | IP67 Weather Resistance |
| Impact Rating | IK10 |
| Power Input | 12VDC / PoE |
| Power Consumption | 12VDC 30mA (LEDs Off) / 875mA (LEDs On) |
| Power Consumption | PoE < 10.5W |
| Working Environment | -22° ~140° / < 95% Humidity |
| Weight Net (Shipping) | 33.51oz / 2.01lb / 950g (52.91oz / 3.31lb / 1500g) |
| Dimensions (Dia×H) | 5.55 × 3.95” (141.0 × 100.2mm) |
