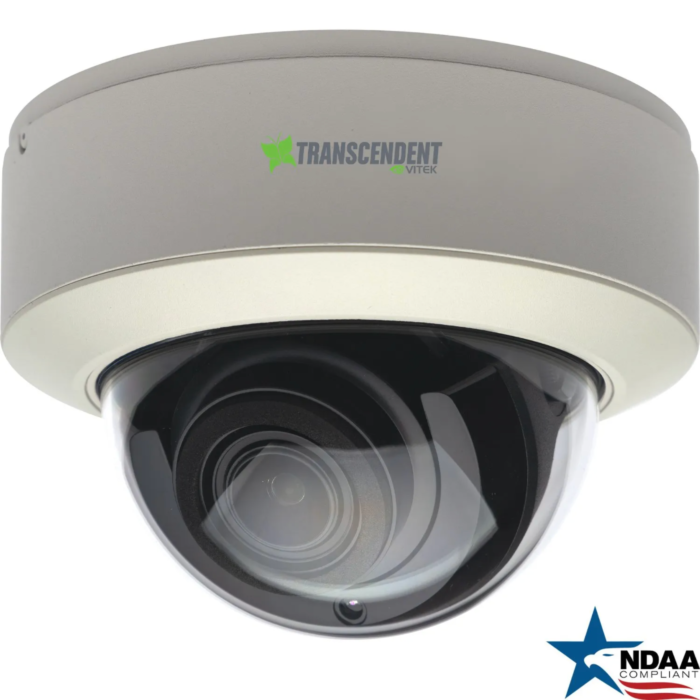

Vitek VTD-TND8RMA4 8 MegaPixel GEN IV Advanced A.I. Motorized IP Vandal Dome Camera
Vitek VTD-TND8RMA4 8MP GEN IV Advanced A.I. Motorized IP Vandal Dome Camera
The Vitek VTD-TND8RMA4 8 MegaPixel GEN IV Advanced A.I. Motorized IP Vandal Dome Camera is an exceptional choice for high-security surveillance applications. Equipped with a 1/2.8” 8MP 4K progressive scan CMOS sensor, it delivers crystal-clear video with up to 30fps at full 8MP resolution. The camera's 2.8~12mm motorized varifocal lens allows for flexible field-of-view adjustments, while Matrix IR technology provides enhanced night vision up to 165 feet, making it ideal for both daytime and nighttime monitoring.
This camera's standout feature is its GEN IV Advanced Analytics, which includes human and vehicle classification for tasks like regional entrance/exiting detection, line crossing, target counting, and face detection. It also offers sophisticated security tools such as abnormal video alerts and object detection. Its rugged design boasts an IP67 weather-resistant rating and IK10 impact protection, ensuring durability in harsh environments. Remote viewing via CMS, mobile apps, or web browsers ensures seamless access to live feeds from anywhere. With its combination of advanced technology, vandal resistance, and A.I.-powered analytics, the Vitek VTDTND8RMA4 is a top-tier solution for securing sensitive locations such as banks, offices, or public spaces.
Features:
- 8 MegaPixel (4K) Resolution: Crystal-clear imaging with up to 3840x2160 resolution.
- Motorized Varifocal Lens: 2.8~12mm lens for flexible zoom and field-of-view adjustments.
- GEN IV Advanced Analytics: Includes regional detection, line crossing, target counting, face detection, and more.
- Matrix IR Technology: Up to 165 feet of night vision.
- Wide Dynamic Range (120dB): Enhanced image clarity in challenging lighting conditions.
- IP67 & IK10 Ratings: Weather and impact resistance for harsh environments.
- Remote Viewing: Access live feeds via CMS, mobile apps, or web browsers.
- NDAA Compliant: Meets national defense regulations.
- H.265+ Video Compression: Efficient data storage and transmission.
Applications:
- Banking and Financial Institutions: Enhanced security for sensitive areas.
- Retail and Commercial Spaces: Monitor customer behavior and prevent theft.
- Public Transportation Hubs: Ensure safety in high-traffic areas.
- Government Facilities: Secure critical infrastructure and access points.
- Educational Institutions: Protect school grounds and facilities.
- Corporate Offices: Surveillance for large office complexes and campuses.
| Image Sensor | 1/2.8” 8.0 Megapixel [4K] Progressive Scan CMOS |
| NDAA Compliant | Yes |
| Image Size | 8 MegaPixel (3840 × 2160) |
| Resolution | 8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240 |
| Min. Illumination | 0.01 lux @ F1.2, AGC ON; 0 lux with IR; 0.015 lux @ F1.4, AGC ON; 0 lux with IR |
| Lens | 2.8mm~12mm Motorized Varifocal |
| Day/Night Function | True Day/Night by ICR |
| IR LEDs / IR Distance | 3 Matrix Style IRs / Up to 165’ |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Audio Compression | G.711A / G.711U |
| Main-Stream | 60Hz: 8/6/5/4MP/2K/3MP/1080P/720P (1~30fps), 50Hz: (1~25fps); HFR: 1080P 60Hz: 1~60fps; 50Hz: 1~50fps |
| Sub/Third Stream | 1080P/720P/D1/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps), 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Bit Rate / Type | 64 Kbps ~ 12 Mbps / VBR, CBR |
| Wide Dynamic Range | 120dB Super WDR |
| Other Features | Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset |
| Digital Noise Reduction | XD-DNR (3D-DNR & 2D-DNR) |
| Image Setting | ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software / web browser |
| GEN IV Advanced Analytics | Regional Intrusion Detection, Regional Entrance/Exit Detection, Line Crossing, Target Counting (Human/Motor Vehicle), Face Detection, Crowd Density, Abandoned/Missing Object, Abnormal Video, Smart Alarm, Motion Detection, SD Card Error, SD Card Full |
| Region of Interest (ROI) | Each ROI to be configured separately |
| Audio | 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic* |
| Video Output | 1 Ch. CVBS Video Out |
| Alarm | 1 Ch. Alarm In + 1 Ch. Alarm Out |
| Local Storage | Built-in MicroSD Card Slot (up to 256GB) |
| Remote Viewing | CMS / Web Browser / Mobile (iOS/Android) |
| Supported Browsers | Internet Explorer, Chrome and Firefox with IE Tab |
| Connection Protocol | ONVIF |
| Ingress Protection / Impact | IP67 + IK10 |
| Power Input | 12VDC / PoE |
| Power Consumption | 12VDC, PoE 500mA (LEDs Off) / 1050mA (LEDs On), 10.5W |
| Working Environment | -22° ~ 140° / < 95% Humidity |
| Weight | 38.80 oz. / 2.42 lbs. / 1.1kg (NET) 48.86 oz. / 2.87 lbs/ 1.3kg (SHIPPING) |
| Dimensions | 6.52" x 2.70" x 2.56" (166.2mm x 68.6mm x 65.0mm) |
