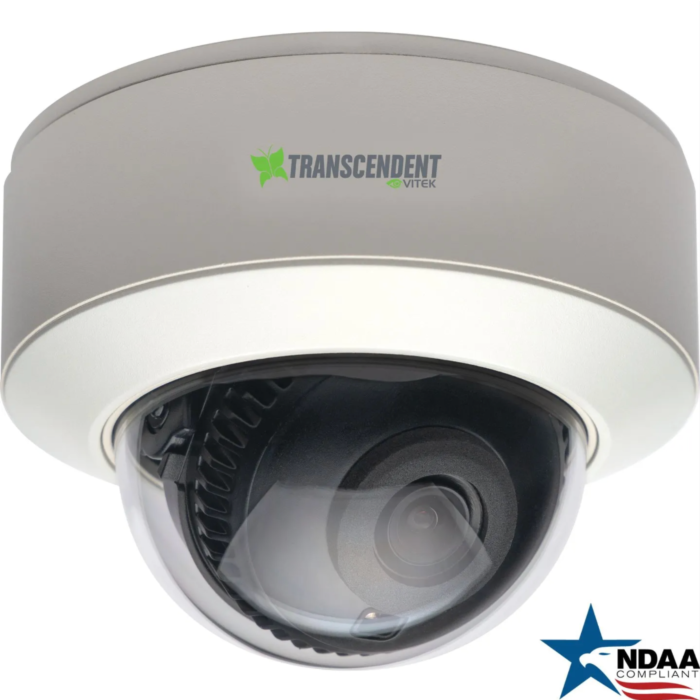

Vitek VTD-TND4FLN-2 Transcendent Lite 4 MegaPixel Fixed Lens IP Dome Camera with Programmable Analytics
Vitek VTD-TND4FLN-2: Advanced 4MP IP Dome Camera with Programmable Analytics
The Vitek VTD-TND4FLN-2 Transcendent Lite 4 Megapixel Fixed Lens IP Dome Camera delivers exceptional performance, combining robust features with ease of use for advanced surveillance applications. Built with a 1/3” 4.0 Megapixel CMOS image sensor, this camera captures sharp, high-resolution video at up to 30fps across multiple resolutions, including 4MP, 3MP, and 1080P. The 2.8mm fixed iris lens ensures wide-angle coverage, while Matrix IR technology provides up to 100 feet of night vision, making it ideal for low-light environments.
Designed to withstand harsh conditions, this camera boasts IP67 weather resistance and an IK10 impact rating, making it perfect for outdoor and high-risk areas. It supports intelligent, programmable analytics such as region intrusion, object removal, and line crossing, providing proactive security management. The VTDTND4FLN2 H.265+ compression reduces bandwidth without compromising quality, while a built-in MicroSD card slot allows for up to 256GB of local storage.
Remote monitoring is made simple through VMS, mobile apps, and web browsers, enhancing flexibility for any security setup. This camera is ideal for monitoring retail stores, parking lots, warehouses, and industrial facilities, where reliable, round-the-clock surveillance is critical.
Features:
- 1/3” 4.0 Megapixel CMOS sensor
- 2.8mm fixed lens with up to 100’ IR range
- True 120dB Wide Dynamic Range (WDR)
- Programmable analytics for proactive security
- H.265+/H.264 compression for efficient storage
- IP67 and IK10 ratings for outdoor durability
- PoE and MicroSD support for flexible installation
Applications:
- Retail store monitoring
- Parking lot surveillance
- Industrial facility security
- Office building entrances
- High-risk environments (e.g., warehouses)
- Perimeter protection for residential areas
- Government buildings and infrastructure
| Image Sensor & Size | 1/3” 4.0 Megapixel CMOS Image Sensor |
| Resolution | 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240 |
| Min. Illumination | 0.005 lux @ F1.6, AGC ON; 0 lux with IR |
| Lens | 2.8mm Fixed Iris Lens |
| Day / Night | True Day/Night by ICR |
| IR LEDs / IR Distance | 1 Matrix IR up to 100’ Range |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264, Sub: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Main-Stream | 60Hz: 4MP/3MP/1080P (1~30fps), 50Hz: 4MP/3MP/1080P (1~25fps) |
| Sub-Stream | 60Hz: 720P (1~30fps) / D1 / CIF (1~30fps), 50Hz: 720P / D1 / CIF (1~25fps) |
| Bit Rate | 64Kbps ~ 8Mbps |
| Bit Rate Type | VBR / CBR |
| BLC Control | Backlight & Highlight Compensation |
| Wide Dynamic Range (WDR) | True WDR (120dB) |
| Digital Noise Reduction (DNR) | XD-DNR (2D-DNR & 3D-DNR) |
| Image Setting | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Noise Reduction, etc., Adjustable Through Client Software or Web Browser |
| Programmable Analytics | Region Intrusion, Object Removal / Missing, Scene Change, Line Crossing, Video Blur Detection, Video Cast Detection |
| Smart Alarm | Motion Alarm, SD Card Error, SD Card Full |
| Region Of Interest (ROI) | Each ROI to be Configured Separately |
| Network | RJ45 |
| Audio | 1 Ch. Audio In + Built-in Mic* |
| Storage | MicroSD Card Slot (up to 256GB) |
| Remote Viewing | VMS / Web Browser / Mobile (iOS/Android) |
| Reset | YES |
| Supported Browsers | Internet Explorer (IE) – Plug-in Required, Edge in IE Mode |
| Connection Protocol | ONVIF |
| Ingress Protection | IP67 + IK10 Impact Rating |
| Power Input | 12VDC / PoE |
| Power Consumption (12VDC) | 300mA (LEDs Off) / 450mA (LEDs On) |
| Power Consumption (PoE) | <4.5W |
| Working Environment | -22° ~140°F (-30°~60°C) / < 95% Humidity |
| Weight NET (SHIPPING) | 22.58oz / 1.41lb / 640g (28.22oz / 1.76lb / 800g) |
| Dimensions (Dia × H) | 3.44 × 4.69” [87.4 × 119mm] |
