Vitek VTC-TNT4FLN-2 Transcendent Lite 4 MegaPixel Fixed Lens IP Turret Camera with Programmable Analytics

SKU
VTC-TNT4FLN-2
Quick Overview
The VTC-TNT4FLN-2 4MP IP67-rated camera offers a 1/3" 4.0 Megapixel CMOS sensor, true day/night functionality with ICR, and advanced video compression, making it ideal for surveillance in harsh environments. It supports PoE, microSD storage, and remote viewing on multiple platforms.

Vitek VTC-TNT4FLN-2 Transcendent Lite 4MP Fixed Lens IP Turret Camera

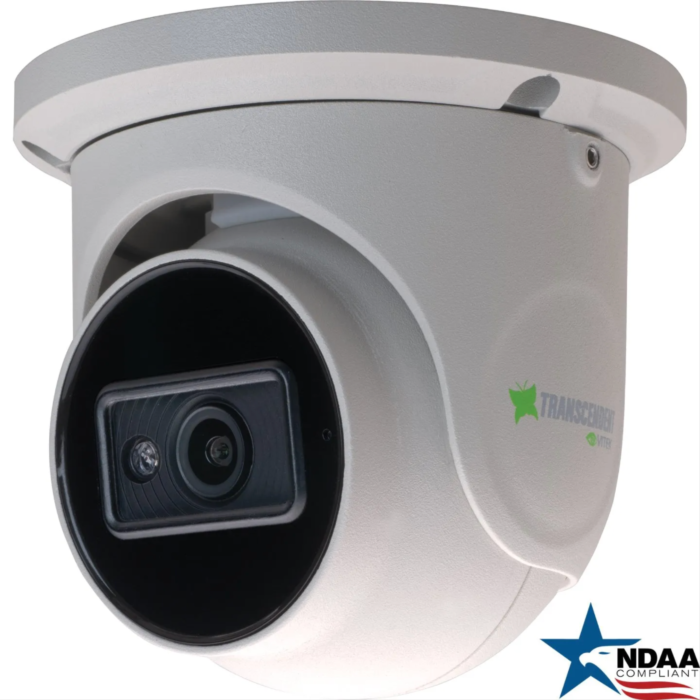

The Vitek VTC-TNT4FLN-2 Transcendent Lite 4 MegaPixel Fixed Lens IP Turret Camera is a powerful surveillance solution built to handle various security needs. Featuring a 1/3” 4.0 Megapixel CMOS image sensor, it captures crystal-clear images at resolutions up to 2560 × 1440, ensuring top-quality footage for security operations. The 2.8mm fixed iris lens provides a broad field of view, making it ideal for monitoring open areas.

Equipped with True 120dB Wide Dynamic Range and XD-DNR noise reduction, the camera excels in diverse lighting conditions, offering sharp, clear images both day and night. The Matrix IR illuminates up to 100 feet in total darkness, while the True Mechanical Day/Night function enhances low-light performance. Additionally, programmable analytics like region intrusion, line crossing, and object removal detection make the VTC-TNT4FLN-2 adaptable to various security requirements.

Designed for durability, its IP67-rated weather resistance protects it from harsh environmental conditions, and its PoE capability simplifies installation. Remote viewing via mobile apps and web browsers allows for easy access and management of video feeds, making this camera suitable for commercial, industrial, and residential security applications.

Features:

  • 4MP CMOS image sensor
  • Programmable analytics: Region intrusion, line crossing, and more
  • True 120dB Wide Dynamic Range
  • XD-DNR (2D & 3D) noise reduction
  • IR range up to 100 feet
  • H.265+ compression for optimized storage
  • IP67 weather-resistant housing
  • PoE operation for simple installation
  • MicroSD card slot (up to 256GB)
  • Remote viewing via mobile apps and web browsers

Applications:

  • Commercial property surveillance
  • Industrial facility monitoring
  • Residential security systems
  • Parking lot and garage monitoring
  • Perimeter security for warehouses and factories
  • Outdoor surveillance in harsh weather environments
  • Real-time monitoring for retail spaces
  • Public area surveillance (parks, streets)
Image Sensor & Size1/3” 4.0 Megapixel CMOS Image Sensor
Resolution4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
Min. Illumination0.005 lux @ F1.6, AGC ON; 0 lux with IR
Lens2.8mm Fixed Iris Lens
Day / NightTrue Day/Night by ICR
IR LEDs / IR Distance1 Matrix IR up to 100’ Range
Video CompressionMain stream: H.265+ / H.265 / H.264+ / H.264, Sub: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Main-Stream60Hz: 4MP/3MP/1080P (1~30fps), 50Hz: 4MP/3MP/1080P (1~25fps)
Sub-Stream60Hz: 720P (1~30fps) / D1 / CIF (1~30fps), 50Hz: 720P / D1 / CIF (1~25fps)
Bit Rate64Kbps ~ 8Mbps
Bit Rate TypeVBR / CBR
BLC ControlBacklight & Highlight Compensation
Wide Dynamic Range (WDR)True WDR (120dB)
Digital Noise Reduction (DNR)XD-DNR (2D-DNR & 3D-DNR)
Image SettingROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Noise Reduction, etc., Adjustable Through Client Software or Web Browser
Programmable AnalyticsRegion Intrusion, Object Removal / Missing, Scene Change, Line Crossing, Video Blur Detection, Video Cast Detection
Smart AlarmMotion Alarm, SD Card Error, SD Card Full
Region of Interest (ROI)Each ROI to be Configured Separately
NetworkRJ45
Audio1 Ch. Audio In + Built-in Mic*
StorageMicroSD Card Slot (up to 256GB)
Remote ViewingVMS / Web Browser / Mobile (iOS/Android)
ResetYES
Supported BrowsersInternet Explorer (IE) – Plug-in Required, Edge in IE Mode
Connection ProtocolONVIF
Ingress ProtectionIP67
Power Input12VDC / PoE
Power Consumption (12VDC)300mA (LEDs Off) / 600mA (LEDs On)
Power Consumption (PoE)<5W
Working Environment-22°~140°F (-30°C ~ 60°C) / < 95% Humidity
Weight (Net)16.23oz / 1.01lb / 460g
Weight (Shipping)19.75oz / 1.235lb / 560g
Dimensions (Dia × H)3.77 × 4.25” [95.7 × 108mm]
