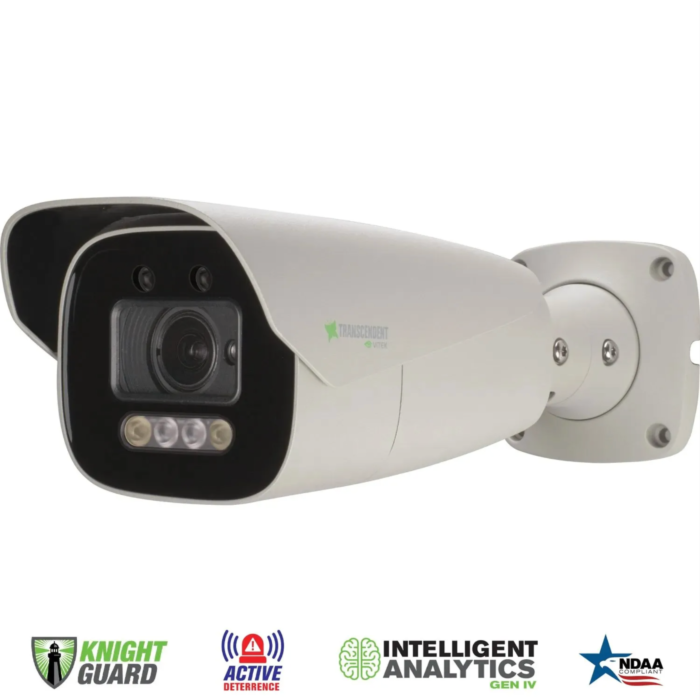

Vitek VTC-TNB8MADW Transcendent 8 MegaPixel (4K) WDR Knight Guard + Active Deterrence Motorized AF IP Bullet Camera
Vitek VTC-TNB8MADW 4K WDR IP Bullet Camera with Active Deterrence
The Vitek VTC-TNB8MADW Transcendent 8 MegaPixel (4K) WDR Knight Guard + Active Deterrence Motorized AF IP Bullet Camera represents the pinnacle of security camera technology. Equipped with a high-performance 1/1.8” 8.0 MegaPixel CMOS sensor, this camera delivers stunning 4K resolution with up to 30fps, ensuring every detail is captured with clarity. The 2.8~12mm motorized autofocus lens allows for precise adjustments, offering flexibility to cover a wide range of viewing angles.
Designed to excel in both day and night conditions, this camera features True Wide Dynamic Range (120dB) and full-color night vision capabilities, supported by white light or matrix IR illumination for up to 165 feet. The active deterrence functionality includes alternate flashing red and blue warning lights and user-defined voice commands, adding an extra layer of protection by actively deterring potential intruders.
Advanced analytics powered by GEN IV technology provide robust features such as regional entrance detection, line crossing, and human/motor vehicle classification. The Vitek VTC-TNB8MADW also supports triple streaming (H.265+, H.264+, MJPEG) and includes built-in audio, local storage up to 256GB, and IP66 weather resistance, making it ideal for comprehensive, high-security applications across various environments.
Features:
- 8 MegaPixel (4K) CMOS Image Sensor: Delivers ultra-high-definition video with vibrant detail.
- True Wide Dynamic Range (120dB): Provides clear images in challenging lighting conditions.
- 2.8~12mm Motorized Autofocus Lens: Adjustable lens for flexible field-of-view.
- Active Deterrence: Flashing red and blue lights and customizable voice alerts to deter intruders.
- Full Color at Night: Maintains color clarity in low-light environments.
- Advanced Analytics: Includes regional entrance detection, line crossing, face detection, and more.
- Triple Streaming: Supports H.265+, H.264+, and MJPEG compression for efficient data transmission.
- Built-in MicroSD Card Slot: Local storage up to 256GB for recording video footage.
- Weatherproof IP66 Rating: Resistant to dust and water for reliable outdoor use.
- PoE and 12VDC Operation: Flexible power options for easy installation.
Applications:
- Perimeter Security: Effective for monitoring large outdoor areas and entry points.
- High-Security Facilities: Ideal for environments requiring advanced deterrence and analytics.
- Retail and Commercial Surveillance: Provides high-resolution footage for loss prevention and safety.
- Parking Lots: Enhances security with night vision and active deterrence features.
- Transportation Hubs: Suitable for bus stations, airports, and train stations needing detailed surveillance.
| Image Sensor | 1/1.8” 8.0 MegaPixel (4K) Progressive Scan CMOS |
| Image Size | 8 MegaPixel (3840 × 2160) |
| Resolution | 8MP (3840×2160 ), 6MP (3072×2048), 5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), CIF (480×240) |
| Frame Rate | 30fps @ 8MP (4K) and Lower (50Hz: 1~25fps) |
| Main-Stream | 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P |
| Sub-Stream | 1080P/720P/D1/VGA/CIF |
| Third-Stream | D1/VGA/CIF/480×240 |
| Min. Illumination | 0.008lux @ F1.6 with AGC ON, 0 lux with IR, 0 lux with LED |
| Lens | 2.8~12mm Motorized AutoFocus Varifocal Lens |
| Field of View | Horizontal: 113°~46°, Vertical: 59°~26°, Diagonal: 136°~54° |
| Angle Adjustment | Wall Mount: Pan: 0°~180°, Tilt:0°~90°, Rotation: 0°~180°, Ceiling Mount: Pan: 0°~360°, Tilt:0°~90°, Rotation: 0°~180° |
| Electronic Shutter | 1/2s ~ 1/100,000s |
| S/N Ratio | ≥50dB |
| Day / Night | True Day / Night by ICR |
| Night Vision / Range | White Light or Matrix IR / Up to 165’ |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG (Triple Streaming) |
| Audio Compression | G.711A / G.711U |
| Audio | 1Ch. Audio Input, 1Ch. Audio Output + Built-in Speaker + Built-in Microphone* |
| Alarm | 1Ch. Alarm Input, 1Ch. Alarm Output |
| CVBS Video Out | Yes (BNC × 1) |
| Bit Rate / Type | 64 Kbps ~ 12 Mbps / VBR, CBR |
| Wide Dynamic Range | 120dB Super WDR |
| Other Features | Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset |
| Digital Noise Reduction | XD-DNR (3D-DNR & 2D-DNR) |
| Image Setting | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic Range, Sharpness, Image Flip, Image Mirror, Noise Reduction (Adjustable through client software or web browser) |
| Advanced Analytics | Intrusion Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification], Face Detection, Scene Change, Video Blur, Abnormal Color Detection, Heat Map |
| Smart Alarm | Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable Connection |
| Region of Interest (ROI) | Each ROI to be Configured Separately |
| Sound / Light Warning | Flashing White Lights (Red and Blue) + Speaker with User-Defined Warning Voice Import |
| DORI (W) | Detect: 249’ (76m), Observe: 102’ (31m), Recognize: 49’ (15m), Identify: 26’ (8m) |
| DORI (T) | Detect: 614’ (187m), Observe: 246’ (75m), Recognize: 121’ (37m), Identify: 62’ (19m) |
| Local Storage | Built-in MicroSD Card Slot (up to 256GB) |
| Remote Viewing | VMS / Web Browser / Mobile (iOS/Android) |
| Online Connection | Supports Simultaneous Monitoring for up to 10 Users, Support multi-stream real-time transmission |
| Supported Browsers | IE or Edge in IE mode, Chrome, Firefox |
| Network Connection | RJ45 10M/100M Self-Adaptive Ethernet port |
| Network Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS |
| Connection Protocol | VITEK/ONVIF |
| Ingress Protection | IP66 |
| Security | Video Encryption, Firmware Encryption, HTTPs Encryption, Configuration Encryption, Illegal Login Lock, IP Address Filtering, 802.1x Authentication, Basic and Digest Authentication for HTTP/HTTPs |
| PoE | Yes, IEEE802.3af |
| Power Input | 12VDC / PoE |
| Power Consumption (PoE) | <14W |
| Power Consumption (12VDC) | 600mA (LEDs Off) / 1200mA (LEDs On) |
| Working Environment | -22° ~140°F (-30°~60°C) / < 95% Humidity |
| Storage Environment | -22° ~149°F (-30°~65°C) / < 95% Humidity |
| Weight Net (Gross) | 23.99oz / 1.50lb / 1040g (29.27oz / 1.83lb / 1200g) |
| Dimensions L × W × H | 10.96 × 3.95 × 3.49” (278.3 × 100.2× 88.7mm) |
| Certificates | CE, FCC — Complies with Directive EU RoHS, WEEE(2012/19/EU), Directive 94/62/EC and REACH(EC1907/2006) |
