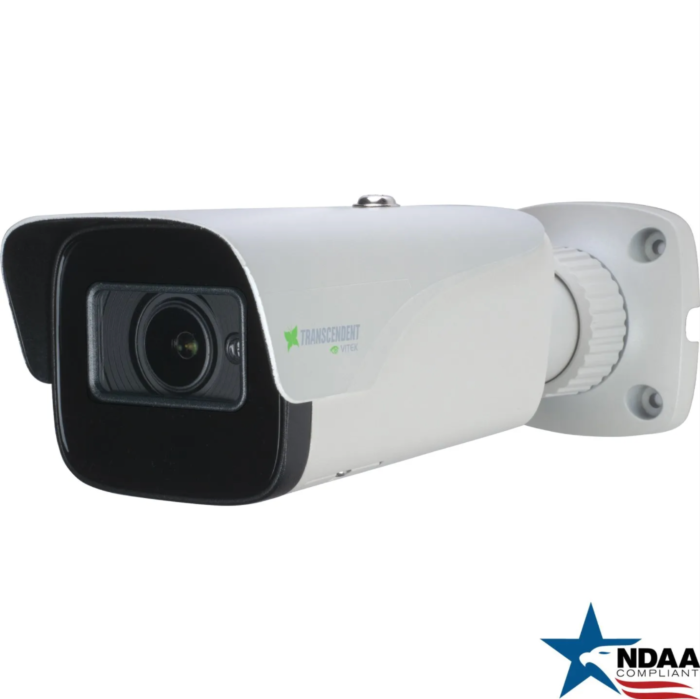

Vitek VTC-TNB5RMEA Transcendent 5 MegaPixel Motorized Lens WDR Motorized IP Bullet Camera

SKU
VTC-TNB5RMEA
Quick Overview
The Vitek VTC-TNB5RMEA Transcendent 5MP IP Bullet Camera offers high-definition video with a 5MP resolution, motorized lens, and exceptional Wide Dynamic Range. Designed for both indoor and outdoor use, it features robust weather resistance, advanced video compression, and remote viewing capabilities. Ideal for commercial, residential, and industrial security applications, this camera ensures comprehensive monitoring with high clarity and reliability.

High-Definition Security with the Vitek VTC-TNB5RMEA 5MP IP Bullet Camera

The Vitek VTC-TNB5RMEA Transcendent 5 Megapixel IP Bullet Camera stands out as a top-tier choice for advanced security and surveillance applications. Featuring a 1/2.7” progressive scan CMOS image sensor, this camera delivers crisp, high-definition images with resolutions up to 5MP (2880 × 1620) at 20fps. With its 2.8~12mm motorized varifocal lens, it offers a wide field of view and flexible zoom capabilities, enhancing its adaptability to various surveillance scenarios.

The camera's True Wide Dynamic Range (120dB) ensures clear image quality even in challenging lighting conditions, while the Matrix IR LEDs provide up to 165 feet of infrared coverage for nighttime monitoring. It also incorporates advanced features like XD-DNR for noise reduction, and multiple analytics functions, including region intrusion detection and scene change detection, to enhance security monitoring.

Designed to withstand harsh environments, the VTCTNB5RMEA is IP67 rated for weather resistance and supports both 12VDC and Power over Ethernet (PoE) for flexible installation. Its compatibility with ONVIF standards ensures seamless integration with various network video systems, while the MicroSD card slot allows for local video storage. Ideal for both indoor and outdoor use, this camera is perfect for applications requiring reliable, high-resolution surveillance with advanced features and robust performance.

Features:

  • 5 Megapixel Resolution: Delivers high-definition video up to 2880 × 1620 at 20fps.
  • Motorized Varifocal Lens: 2.8~12mm lens with a wide field of view for flexible zoom and focus.
  • Wide Dynamic Range (120dB): Ensures clear images in varying lighting conditions.
  • Matrix IR LEDs: Provides up to 165 feet of infrared range for night vision.
  • Advanced Video Compression: Supports H.265+, H.265, H.264+, H.264, and MJPEG formats.
  • Digital Noise Reduction: XD-DNR for reduced image noise in low-light conditions.
  • Local Storage: MicroSD card slot supports up to 256GB for video recording.
  • Weather-Resistant Design: IP67 rated for protection against dust and water.
  • Remote Viewing: Accessible via VMS, web browsers, and mobile apps (iOS & Android).
  • ONVIF Compliance: Ensures compatibility with various network video systems.
  • Power Options: Operates on 12VDC or Power over Ethernet (PoE).

Applications:

  • Commercial Security: Ideal for monitoring retail stores, offices, and warehouses.
  • Residential Surveillance: Enhances security for homes and private properties.
  • Parking Lots: Provides surveillance in outdoor parking areas.
  • Industrial Facilities: Suitable for monitoring large industrial sites.
  • Public Spaces: Effective in keeping an eye on public areas such as parks and transit stations.
Image Sensor1/2.7” 5.0 Megapixel CMOS Image Sensor
Image Size5 MegaPixel (2880 × 1620)
ResolutionUp to 20fps @ 5MP (2880 × 1620), Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480 × 240, CIF
Min. Illumination0.007 lux @ F1.6, AGC ON; 0 lux with IR
Electronic Shutter1 s ~ 1 / 100000 s
Lens2.8~12mm Motorized Varifocal Lens, FoV H: 110.5°, FoV V: 57°, FoV Diag: 131°
IR LEDs (Range)2 Matrix Style IR (up to 165’)
Video CompressionH.265+ / H.265 / H.264+ / H.264 / MJPEG
Audio CompressionG.711A / G.711U
Main-Stream5MP(1~20fps)/4MP/3MP/1080P/720P(1~30fps)
Sub, Third Stream720P/D1/CIF (1~30fps), 60Hz: D1/480 × 240/CIF (1~30fps)
Bit Rate / Type64 Kbps ~ 8 Mbps / VBR + CBR
Wide Dynamic Range120dB WDR
Digital Noise Reduction3D-DNR
Other FeaturesBack Light Compensation, Highlight Compensation
NDAA CompliantYes
Image SettingROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR
AnalyticsRegion Intrusion, Abandoned Object, Scene Change, Line Crossing, Video Blur, Video Color Cast Detection
Smart AlarmMotion Detection, SD Card Error, SD Card Full
General FunctionsWatermark, IP Filter, Video Mask, Illegal Login Lock
Region of Interest (ROI)Each ROI to be configured separately
Hardware ResetYes
Analog Video OutputNo
Audio1 Ch. Audio In + Built-in Mic*</td
Local StorageBuilt-in Micro SD card slot up to 256GB
Remote ViewingVMS / Web Browser / iOS & Android Apps
Supported BrowsersInternet Explorer (IE) – Plug-in Required, Edge in IE Mode
Connection ProtocolONVIF
Weather ResistanceIP67
Power Input12VDC / PoE
Power Consumption (12VDC)350mA (LEDs Off) / 800mA (LEDs On)
Power Consumption (PoE)<9W
Working Environment-22° ~140°F (-30°~60°C) / < 95% Humidity
Weight25.75oz / 1.61lbs / .73kg (NET) 31.75oz / 1.98lbs / .90kg (SHIPPING)
Dimensions (L × W × H)8.68 × 3.15 × 2.78” (220.5 × 80.1 × 70.5mm)
