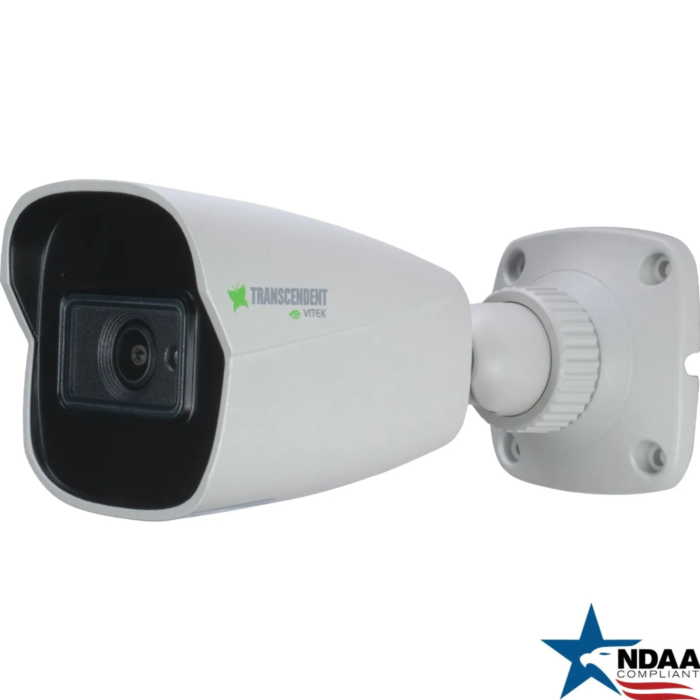

Vitek VTC-TNB4FLN-2 Transcendent 4 MegaPixel Fixed Lens IP Bullet Camera with Programmable Analytics

Advanced 4MP CMOS Industrial Camera with IR and WDR

The Vitek VTC-TNB4FLN-2 Transcendent 4 MegaPixel Fixed Lens IP Bullet Camera exemplifies top-tier security and surveillance technology. Featuring a 1/3” 4.0 Megapixel CMOS image sensor, this high-definition camera captures crystal-clear images with resolutions up to 2560 × 1440. It offers flexibility with multiple resolution settings including 4MP, 3MP, 1080P, and 720P, making it suitable for various monitoring needs.

Its advanced 2.8mm fixed iris lens and Matrix IR LEDs provide exceptional night vision with an impressive range of up to 100 feet, ensuring reliable performance even in low-light conditions. The True 120dB Wide Dynamic Range (WDR) and XD-DNR noise reduction technology further enhance image quality, making it effective in challenging lighting environments.

The camera supports intelligent analytics features such as region intrusion detection, object tracking, and scene change alerts, which are critical for proactive security measures. With compatibility for H.265 and H.264 compression, it ensures efficient video storage and transmission. The Vitek VTCTNB4FLN2 also supports remote viewing through various platforms, including web browsers and mobile apps, providing convenient access to live footage and recordings. Its robust IP67 weather resistance rating makes it ideal for both indoor and outdoor use, offering reliable protection in diverse environmental conditions.

Features:

• Image Sensor: 1/3” 4.0 Megapixel CMOS Image Sensor
• Resolution Options: 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
• Min. Illumination: 0.005 lux @ F1.6 with AGC ON; 0 lux with IR
• Lens: 2.8mm Fixed Iris Lens
• Day/Night Functionality: True Day/Night by ICR
• IR LEDs/Distance: 1 Matrix IR LED up to 100’ Range
• Video Compression: H.265 / H.264 (Main), H.265 / H.264 / MJPEG (Sub)
• Wide Dynamic Range: True WDR (120dB)
• Digital Noise Reduction: XD-DNR (2D-DNR & 3D-DNR)
• Analytics: Region Intrusion Detection, Object Tracking, Scene Change, Line Crossing, Video Blur, Video Cast Detection
• Smart Alarm: Motion Alarm, SD Card Error, SD Card Full
• Network Connectivity: RJ45
• Audio: 1 Channel Audio In
• Storage: MicroSD Card Slot (up to 256GB)
• Remote Viewing: VMS, Web Browser, Mobile (iOS/Android)
• Power Input: 12VDC / PoE
• Ingress Protection: IP67
• Working Environment: -22°~140°F (-30°C ~ 60°C), < 95% Humidity

Applications:

• Industrial Surveillance: High-resolution imaging and IR capabilities for 24/7 monitoring in harsh environments.
• Security Systems: Enhanced day/night functionality and wide dynamic range for effective security applications.
• Remote Monitoring: Suitable for remote access and management via web browsers and mobile devices.
• Analytics and Detection: Ideal for applications requiring motion detection, intrusion alarms, and video analytics.
