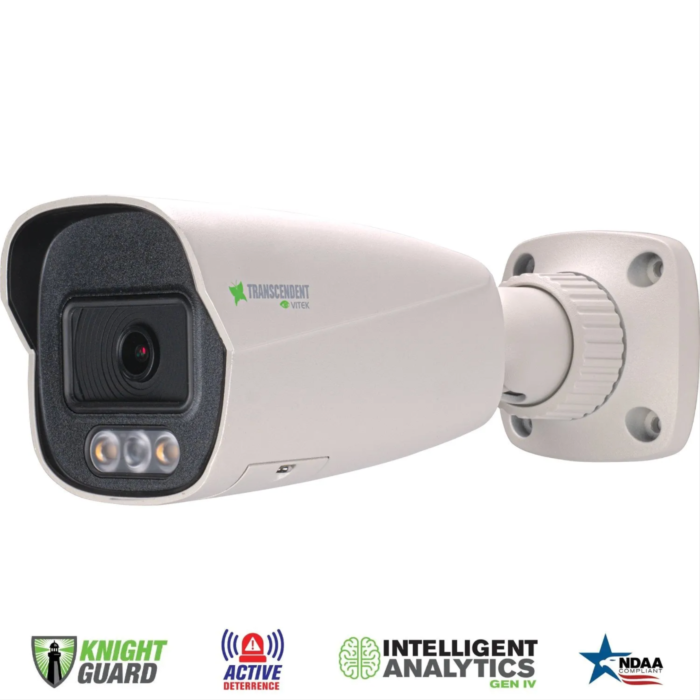

Vitek VTC-TNB4FADW-2 Transcendent 4 MegaPixel Knight Guard + Active Deterrence Fixed IP Bullet Camera
Vitek VTC-TNB4FADW-2 Transcendent 4MP Knight Guard + Active Deterrence Fixed IP Bullet Camera
The Vitek VTC-TNB4FADW-2 Transcendent 4MP Knight Guard + Active Deterrence Fixed IP Bullet Camera offers unparalleled security and surveillance performance. Designed for both residential and commercial applications, this camera delivers crisp 4MP (2592 x 1520) resolution at up to 30fps, ensuring high-quality video monitoring. With a 2.8mm fixed iris lens and wide 96° horizontal field of view, it captures expansive scenes in full detail. What sets this camera apart is its innovative Knight Guard technology, providing full-color imaging even in total darkness, along with active deterrence features like flashing red and blue warning lights and customizable voice commands.
This camera is ideal for environments requiring enhanced perimeter protection, such as warehouses, parking lots, retail stores, and public areas. Its advanced GEN IV analytics, including face detection, line crossing, and human/vehicle classification, ensure accurate monitoring while minimizing false alarms. With triple streaming capability, H.265+ video compression, and IP66 weather resistance, the Vitek VTCTNB4FADW2 is built to perform in harsh conditions, offering reliability and smart security solutions. Powered by PoE and equipped with a MicroSD slot for local recording, this camera is versatile, efficient, and easy to install.
Features:
- 4MP CMOS sensor with 30fps live view
- Full-color night vision with Knight Guard technology
- Active deterrence with flashing lights and voice commands
- GEN IV advanced analytics, including face detection
- Triple streaming with H.265+ compression
Applications:
- Perimeter security for warehouses and industrial complexes
- Parking lot surveillance
- Retail store security
- Public area monitoring
- Building entrances and exit points
| Image Sensor | 1/3.0” 4.0 MegaPixel Progressive Scan CMOS |
| Image Size | 4 MegaPixel (2592×1520) |
| Resolution | 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), CIF, 480×240 |
| Frame Rate | 30fps @ 4MP and Lower |
| Main Stream | 4MP/2K/3MP/1080P/720P (60Hz: 1~30fps) |
| Sub-Stream | 720P/D1/VGA/CIF (60Hz: 1~30fps) |
| Third-Stream | D1/VGA/CIF/480×240 (60Hz: 1~30fps) |
| Min. Illumination | 0.03 lux @ F1.6 with AGC ON, 0 lux with IR, 0 lux with LED |
| Lens | 2.8 mm @ F1.6, H FoV: 96°, V FoV: 54.5°, D FoV: 113° – M12 Mount |
| Angle Adjustment | Wall: Pan: 0°~180°, Tilt: 0°~90°, Rotation: 0°~180°, Ceiling: Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~180° |
| S/N Ratio | ≥50dB |
| Day / Night | True Day / Night by ICR |
| Night Vision / Range | White Light or Matrix IR / Up to 130’ |
| Wide Dynamic Range | 120dB Super WDR |
| Other Features | Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset |
| Digital Noise Reduction | XD-DNR (3D-DNR & 2D-DNR) |
| Image Setting | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic Range, Sharpness, Image Flip, Image Mirror, Noise Reduction (Adjustable through client software or web browser) |
| Advanced Analytics | Intrusion Detection, Line Crossing, Target Counting (Human / Motor Vehicle Classification), Face Detection, Scene Change, Video Blur, Abnormal Color Detection, Heat Map |
| Smart Alarm | Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable Connection |
| Region of Interest (ROI) | Each ROI to be Configured Separately |
| Sound / Light Warning | Flashing White Lights (Red and Blue) + Speaker with User-Defined Warning Voice Import |
| DORI | Detect: 195.73’ (59.66m), Observe: 72.28’ (23.86m), Recognize: 39.14’ (11.93m), Identify: 19.55’ (5.96m) |
| Local Storage | Built-in MicroSD Card Slot (up to 256GB) |
| Remote Viewing | VMS / Web Browser / Mobile (iOS/Android) |
| Online Connection | Supports Simultaneous Monitoring for up to 10 Users, Support multi-stream real time transmission |
| Supported Browsers | IE11 (plug-in required) / Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+ |
| Network Connection | RJ45 10M/100M Self-Adaptive Ethernet port |
| Network Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS |
| Connection Protocol | ONVIF |
| Ingress Protection | IP66 |
| Security | Video Encryption, Firmware Encryption, HTTPS Encryption, Configuration Encryption, Illegal Login Lock, IP Address Filtering, 802.1x Authentication, Basic and Digest Authentication for HTTP/HTTPS |
| PoE | Yes, IEEE802.3af |
| Power Input | 12VDC / PoE |
| Power Consumption (PoE) | <12W |
| Power Consumption (12VDC) | 500mA (LEDs Off) / 1050mA (LEDs On) |
| Working Environment | -22° ~ 140°F (-30°~60°C) / < 95% Humidity |
| Storage Environment | -22° ~ 149°F (-30°~65°C) / < 95% Humidity |
| Weight | Net (Gross) 24.0oz / 1.50lb / 680g (29.3oz / 1.83lb / 830g) |
| Dimensions | L × W × H 8.57” × 3.20” × 3.16” (217.8mm × 80.5mm × 80.3mm) |
| Certificates | CE, FCC — Complies with Directive EU RoHS, WEEE(2012/19/EU), Directive 94/62/EC and REACH(EC1907/2006) |
