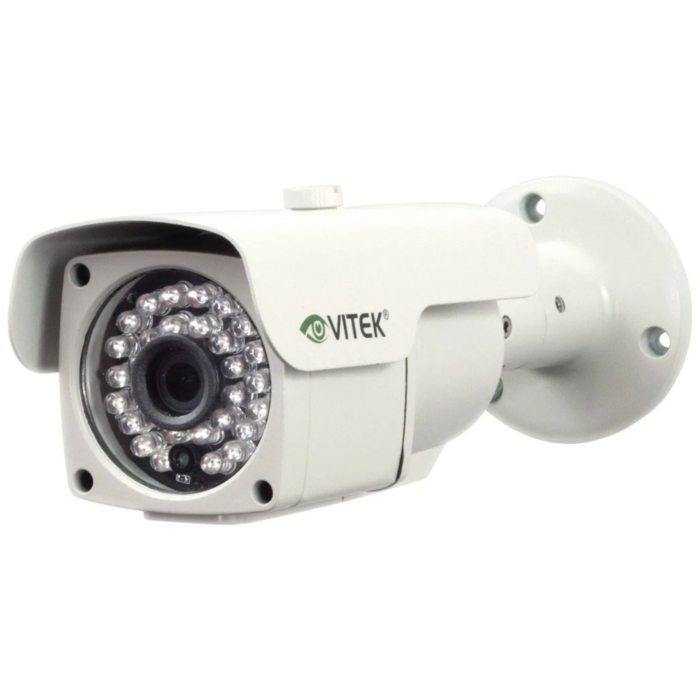

Vitek VTC-BHOC6R4F OnCue 2.1MP 3G-SDI WDR True Day/Night Bullet Camera with 3.6mm Lens & 30 IR LED's
Boost Your Surveillance with the Vitek VTC-BHOC6R4F 2.1MP 3G-SDI Bullet Camera for Superior Night Vision and Durability
The Vitek VTC-BHOC6R4F OnCue 2.1MP 3G-SDI WDR True Day/Night Bullet Camera is a high-performance security solution designed for both indoor and outdoor surveillance. Featuring a 1/3” 2.1MP progressive scan CMOS sensor with NVP2420 DSP, this camera delivers stunning 1080p resolution at 60fps or 30fps for clear, detailed footage. Equipped with 30 dynamic intensity IR LEDs, it provides a remarkable 115-foot IR range for night vision, ensuring reliable security monitoring even in complete darkness. The mechanical IR cut filter enables true day/night performance, while XD-DNR noise reduction, wide dynamic range (WDR), and advanced OSD functions such as defog and motion detection ensure optimal image quality in various lighting conditions.
Built for durability, the VTC-BHOC6R4F is IP67-rated for weather resistance, making it ideal for outdoor installations in challenging environments. Its 3.6mm fixed megapixel lens delivers a wide field of view, and the camera’s 100% pure digital transmission ensures superior image clarity without signal degradation. Applications that benefit from this camera include perimeter monitoring, parking lot surveillance, and commercial building security, where dependable video quality, night vision, and durability are paramount. For reliable, clear security footage in any condition, the Vitek VTC-BHOC6R4F is an excellent choice.
Features:
- 2.1 MegaPixel Progressive Scan CMOS sensor with NVP2420 DSP
- Full 1080p 3G-SDI @ 60fps and HD-SDI @ 30fps output
- 30 dynamic intensity IR LEDs with a 115-foot range for night vision
- Mechanical IR Cut Filter for true day/night functionality
- XD-DNR (2D-DNR & 3D-DNR) noise reduction for clearer images
- IP67 weather-resistant and vandal-resistant casing for outdoor durability
- Wide Dynamic Range (WDR) for improved image quality in challenging lighting
- 3.6mm fixed megapixel lens included
- 16:9 video format and advanced OSD functions including defog, motion detection, privacy mask, and digital zoom
- HD transmission range up to 700 feet (depending on cable quality)
Applications:
- Perimeter monitoring for residential, commercial, or industrial properties
- Parking lot surveillance for enhanced night vision and long-distance monitoring
- Security for commercial buildings, warehouses, and retail stores
- Public area surveillance such as parks and outdoor spaces
- Transportation hubs like airports, train stations, and bus terminals
- Critical infrastructure monitoring including power plants and water treatment facilities
- School and campus security for day and night protection
- Industrial site monitoring in harsh weather conditions due to IP67 rating
- Remote property surveillance with long transmission capabilities
- Warehouse and distribution center security for inventory protection
| Sensor | 1/3″ 2.1 MegaPixel Progressive Scan CMOS sensor w/NVP2420 DSP |
| Resolution | 2.1 MegaPixel (1080p / 720p) |
| S/N | More than 50 dB (AGC Off) |
| Video Output | 60fps 3G-SDI (SMPTE 424M) / 30fps HD-SDI (SMPTE 292M) |
| IR Illuminators | 30 IR LEDs |
| IR Color Temp | .850nm |
| IR Range | 115′ |
| Dynamic Intensity IR LED's | YES |
| Lens | MegaPixel 3.6mm Fixed |
| Digital Zoom | YES |
| Minimum Illumination | 1.0 Lux / 05 Lux (B/W) / 0 Lux with IR On |
| Day/Night | Mechanical IR Cut Filter (True Day/Night) |
| Electronic Shutter Speed | 1/30sec ~ 1/50,000sec |
| White Balance | ATW / AWC / Indoor / Outdoor / Manual |
| Brightness | Adjustable (2 ~ 30 Steps) |
| DSS (Sens-Up) | YES |
| DNR | XD-2DNR (2D-DNR & 3D-DNR) |
| WDR | YES |
| Privacy | YES |
| Motion Detection | YES |
| ACE (Adaptive Color Enhancement) | YES |
| Advanced OSD Functions | Defog, Dynamic IR, WDR, Motion Detection, Privacy mask, Mirror, BLC/HLC, D-Zoom |
| Communication | RS-485 (Pelco® D) |
| HD Transmission Range | Up to 700′ (Depending on cable characteristics and integrity) |
| Weather Resistance Rating | IP-67 |
| Operating Conditions | 14°-122°F (-10°-50°C) < 80% RH |
| Input Voltage | 12VDC |
| Power Consumption (12VDC) | 200mA / 450mA |
| Dimensions | 2.33″ x 2.68″ x 8.07″ (W x H x D) |
