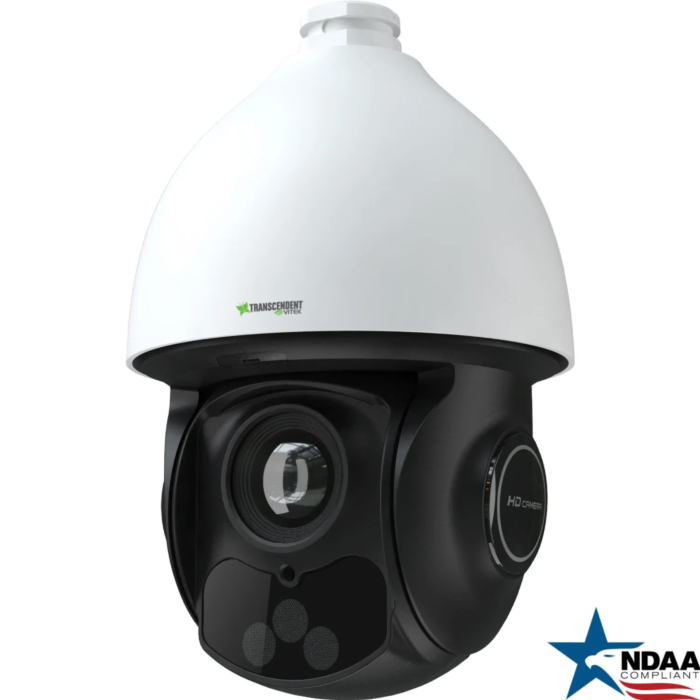

Vitek VT-TPTZ32HRAN-8PNS Transcendent 8 MegaPixel 32× GEN IV IP PTZ with A.I. Facial Recognition and Auto-Tracking
SKU
VT-TPTZ32HRAN-8PNS
Quick Overview
Enhance your surveillance with the Vitek VT-TPTZ32HRAN-8PNS 8MP PTZ camera, featuring AI facial recognition, 32x optical zoom, and smart auto-tracking. Contact us today!
Vitek VT-TPTZ32HRAN-8PNS: 8MP PTZ Camera with AI Facial Recognition and Auto-Tracking
The Vitek VT-TPTZ32HRAN-8PNS Transcendent 8 MegaPixel 32× GEN IV IP PTZ camera delivers cutting-edge security and surveillance solutions, ideal for critical environments such as public areas, airports, and commercial facilities. Featuring a 1/2.8” Sony STARVIS® 8MP CMOS sensor, this advanced camera captures crisp 4K video at 30fps, ensuring high-resolution monitoring. Its ultra high-speed pan, tilt, and 32x optical zoom capabilities (4.8-154mm focal length) allow precise and detailed coverage over wide areas.
Powered by AI, the VTTPTZ32HRAN8PNS supports intelligent features such as real-time auto-zoom tracking, capable of following people, vehicles, and bicycles. Its AI-enhanced facial recognition boasts up to 95% accuracy, while the camera's smart IR provides visibility up to 656 feet, even in low-light or nighttime conditions. True WDR (120dB) ensures excellent image quality across varied lighting conditions, and its durable IP66-rated housing offers protection against harsh weather.
This camera is perfect for applications like perimeter surveillance, traffic monitoring, and urban security, where advanced analytics, wide-area coverage, and real-time tracking are essential. Equipped with scalable video coding, ONVIF compliance, and PoE++ capability, this camera integrates seamlessly into complex security systems.
Features:
- 8MP 1/2.8” Sony STARVIS® CMOS sensor
- AI facial recognition with 95% accuracy
- 32x optical zoom, ultra high-speed pan/tilt
- Smart IR with up to 656 feet range
- IP66 and IK10-rated for weather and impact resistance
Applications:
- Public safety monitoring (airports, transportation hubs)
- Perimeter security for large commercial sites
- City surveillance and traffic management
- Intelligent tracking in critical infrastructure protection
- Remote, low-light or nighttime surveillance
| Image Sensor | 1/2.8” Sony STARVIS® Progressive Scan Starlight CMOS Sensor |
| Resolution | 8.0 MegaPixel (3840 × 2160) Resolution @ 30fps |
| Minimum Illumination | Color: 0.01 Lux @ (F1.2 AGC On) B/W: 0.002 Lux @ (F1.2 AGC On), 0 Lux w/IR |
| Image Setting | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, (Adjusted by Client) |
| Shutter Speed | 60Hz: 1/30s – 1/30,000s, 50Hz: 1/25s – 1/25,000s |
| White Balance | Auto / Manual / Indoor / Outdoor |
| Day/Night | Auto / Manual + Schedule |
| Gain Control | Auto / Manual |
| Iris Control | Auto / Manual |
| SNR | ≥52dB |
| DNR | XD-DNR (3D-DNR / 2D-DNR) – Auto/Manual |
| WDR | True WDR (120dB) |
| IR Range | Up to 656’ IR Range (200M), Dual Stack 850nm IR Array |
| Smart IR | Yes |
| Image Enhancement | Backlight Compensation (BLC), Highlight Compensation (HLC) |
| Privacy Mask | 4 Programmable Areas, Up to 8 Masks In the Same Frame |
| Overlay Features | Picture: Custom Logo on video [128×128px], 24bit BMP |
| On-Screen Display | Max 15 Character / Line, 8 Lines, White or Red Font |
| Lens / Focal Length | 4.8~154mm Lens (32× Optical Zoom) |
| Zoom Speed Approx. | 4.6s (Optical Zoom, Wide Tele) |
| Field of View (FOV) | Horizontal: 61.3°~2.18° / Vertical: 36°.9~1.22° / Diagonal: 68.4°~2.5° (Wide-tele) **All listed speeds + / – 5% |
| Working Distance | Wide: 1.0m ~ INF, Tele: 1.5m ~ INF |
| Iris | F1.2 ~ F4.4 (wide-tele) |
| IR Cut Type | Removable IR Cut filter |
| D.O.R.I f=154mm (US) | Detect (8px/ft): 11575’, Observe (19px/ft): 4593’, Recognize (38px/ft): 2296’, Identify (76px/ft): 1148' |
| D.O.R.I. f=154mm (Metric) | Detect (25px/M): 3528M, Observe (63px/M): 1400M, Recognize (125px/M): 700M, Identify (250px/M): 350M |
| D.O.R.I. f=4.8mm (US) | Detect (8px/ft): 453.5’, Observe (19px/ft): 179.7’, Recognize (38px/ft): 90.8’, Identify (76px/ft): 45.4’ |
| D.O.R.I. f=4.8mm (Metric) | Detect (25px/M): 138M, Observe (63px/M): 54.8M, Recognize (125px/M): 27.8M, Identify (250px/M): 13.8M |
| Pan Range / Speed | 360° Endless, Configurable from .5°/s ~ 120°/s; Preset speed: 150°/s |
| Tilt Range / Speed | -5°~90° [Auto-Flip] / Configurable, from .5°/s ~ 120°/s; Preset speed: 150°/s |
| PTZ Features | Proportional Zoom, Pwr-Off Memory, 3D Position, PTZ Position Display |
| Preset / Cruise | 360 / 8 Cruises, Up to 16 Presets for Each Cruise |
| Tracks | 4 Tracks, Record Time Over 3 Minutes for Each Track |
| Scheduled Tasks | Preset / Cruise / Track / Random Scan / Boundary Scanning / Dome Reboot |
| Max Resolution | 3840 × 2160 |
| Main Stream 60Hz | 30fps:3840 × 2160,2560 × 1440,1920 × 1080,1280 × 960,1280 × 72050Hz: 25fps: 3840 × 2160,2560 × 1440,1920 × 1080,1280 × 960,1280 × 720 |
| Sub Stream | 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)50Hz: 25fps: (704 × 576, 640 × 480, 352 × 288) |
| Third Stream | 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Compression Standards | H.265: HEVC Codec MP, Level 5.0, H.264: AVC codec BP/MP/HP, Level 5.1 |
| Video Bit Rate | 64Kbps to 16Mbps |
| Audio Compression / Bit Rate | G.711A/U / 64Kbps |
| Deep Learning Engine | Supports Face Recognition (FR) up to 15 Human Faces / Sec (max), Human/Vehicle Detection |
| Smart Auto Tracking | Auto Tracking (supports tracking specified target types such as human and vehicle), Manual Tracking |
| Basic Event Detection | Motion detection, Video Tampering, Exception (Network Disconnected, IP Address Conflict, SD Card Full / Error) |
| Smart Event Detection | Trip Wire (+ Bi-Directional), Intrusion / Line Crossing / Region Entering + Exiting, Support Alarm Triggering by Specified Target Types (Human / Vehicle), Un-attended Baggage, Object Removal, Auto / Manual Smart Tracking |
| GEN IV Advanced Analytics | Face Detection (15 Faces Simultaneously), Detect, Track, Capture + Vehicle / Non Vehicle Detection & Tracking |
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE |
| Audio Interface | 1 Audio Input (MIC in), 1 Audio Output, Line Level, Impedance, 600Ω* |
| Alarm Interface | 1 Alarm Input (Dry Contact); 1 Alarm Output |
| Alarm Linkage | Alarm Actions, Including Preset, Cruise, Track, Memory Card Video Record, Trigger Recording, Upload to FTP/Memory, Card, Send Email |
| Reset Button | Yes |
| Live View Connections | Up to 6 Simultaneous Live View Connections |
| User/Host | Up to 16 users, 3 levels: Administrator, Advanced and Normal Users |
| Security Measures | User Authentication (ID and PW), Host authentication (MAC address); HTTPS encryption., IEEE802.1x port-based net account control; IP address filtering |
| Web Browser | Internet Explorer (IE) – Plug-in Required, Edge in IE Mode |
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet, Support PoE++( 802.3.bt) |
| API | ONVIF, Third-Party Integration |
| CVBS (BNC), RS485 | NA |
| On-Board Storage | Built-in microSD/SDHC/SDXC card slot, up to 256GB |
| Thermal Management | Internal Heater and Fan, Hot Air Blows on Glass to Remove Frost, Ice, Remove Water-Droplets w/ Quick Spinning |
| Lens Wiper | NA |
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Cold start at – 30°C (0.5 Hour Warm-up Time), ≤90%RH Non-condensing |
| Weather Rating / Protection | IP66, 6000V (Lightning, Surge, and Voltage Transient Protection) |
| Impact Protection | IK10 (Excluding Glass Window) |
| Power | DC24V/24VAC@ 2.5amps, PoE++ (34W with IR on, PTZ Working) Power Supply Included, PoE Injector Required for PoE Power |
| Dimensions and Weight | 7.7” × 12.5” (196mm × 317mm), 8.31lb (3.7kg) |
