Vitek VT-TPTZ25HRAN-4PNL Transcendent 4 MegaPixel 25× GEN IV IP PTZ with A.I. Facial Recognition and Auto-Tracking

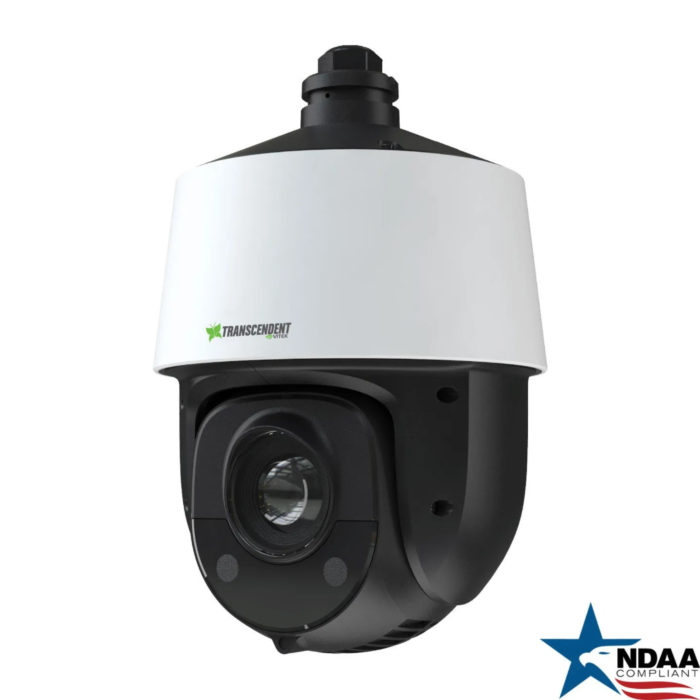

Vitek VT-TPTZ25HRAN-4PNL 4MP PTZ Camera with A.I. Facial Recognition and Auto-Tracking
The Vitek VT-TPTZ25HRAN-4PNL Transcendent 4 MegaPixel IP PTZ Camera delivers advanced surveillance with unparalleled clarity and precision. Featuring a powerful 1/2.7” BSI and NIS STARLIGHT CMOS sensor, this camera excels in low-light conditions, ensuring sharp images even in challenging environments. Its 25x optical zoom lens with ultra-fast pan and tilt capabilities makes it ideal for large coverage areas, enabling security personnel to track movements swiftly. Integrated A.I. functionalities, such as facial recognition and real-time auto-zoom tracking, enhance the camera’s ability to identify and monitor individuals and vehicles with ease.
The Vitek VT-TPTZ25HRAN-4PNL is perfect for a wide range of security applications, including commercial properties, government facilities, and industrial sites. Its GEN IV advanced analytics provide intrusion detection, line crossing, and target counting, while the Smart IR enables clear night vision up to 525 feet. With IP66 weatherproofing and IK10 impact resistance, this camera is built to withstand harsh conditions. The added flexibility of PoE+ power and multiple mounting options ensures seamless integration into existing security systems. The Vitek VTTPTZ25HRAN4PNL delivers reliable, intelligent surveillance that enhances safety and operational efficiency for any security setup.
Features:
- 4MP (2560 × 1440) resolution at 30fps for crystal-clear image quality
- 25× optical zoom with ultra-high-speed pan/tilt/zoom functionality
- A.I.-powered facial recognition and auto-tracking technology
- Smart IR with up to 525ft (160m) night vision range
- True WDR (120dB) for enhanced image clarity in high-contrast lighting
- IP66-rated for weather resistance and IK10 impact protection
- H.265+ video compression for efficient storage and bandwidth usage
- Built-in MicroSD card slot for up to 256GB of local recording
- 360° endless pan range with speeds from 0.1° to 200° per second
Applications:
- Perimeter surveillance for industrial or commercial properties
- High-security monitoring in airports, parking lots, and large outdoor spaces
- A.I.-based facial recognition for government or law enforcement applications
- Automated tracking of vehicles and personnel in traffic management systems
- Intrusion detection in sensitive areas like military bases or data centers
- Retail security with human/vehicle detection and tracking
- Critical infrastructure surveillance for public utilities and transportation systems
| Image Sensor | 1/2.7” BSI (Backside-Illuminated) and NRI (Near-Infrared Sensing) Progressive Scan STARLIGHT CMOS Sensor |
| Pixel Size | 2.0um |
| Effective Pixels | 2884(H) × 1624(V) |
| Resolution | 4.0 MegaPixel (2560 ) Resolution @ 30fps |
| Min. Illumination | Color: 0.01 Lux @ (F1.65 AGC On) B/W: 0.002 Lux @ (F1.65 AGC On), 0 Lux w/IR |
| Image Setting | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC (Adjusted by Client) |
| Shutter Speed | 60Hz (NTSC): 1/30s ~ 1/30,000s, 50Hz (PAL): 1/25s ~1/25,000s |
| White Balance | Auto / Manual / Indoor / Outdoor |
| Day / Night | True Day/Night via ICR Cut Filter with Auto/Manual Gain Control + Schedule |
| Iris Control | Auto / Manual |
| SNR | ≥52dB |
| DNR | XD-DNR (3D-DNR / 2D-DNR) – Auto/Manual |
| WDR | True WDR (120dB) |
| IR Type / Distance | Smart IR – Up to 525’ IR Range (160M) |
| Smart IR | Yes |
| Image Enhancement | Backlight Compensation (BLC), Highlight Compensation (HLC) |
| Privacy Mask | 4 Areas, up to 4 Masks in a Single Frame |
| Overlay Features | Picture: Custom Logo on video w/ 128x128px, 24bit BMP, OSD: Max 15 Character / Line, 8 Lines, White or Red Font |
| Lens / Focal Length | 4.8~120mm Lens (25x Optical Zoom) w/3.6s Zoom Speed, and Digital Zoom |
| Zoom Speed | Approx. 3.6s (Optical Zoom, Wide Tele) |
| Field of View (FOV) | Horizontal: 55°~2.4° / Vertical: 33°~1.4° / Diagonal: 61.5°~2.8° (Wide-tele) **All listed speeds + / – 5% |
| Working Distance | Wide: 1.0m ~ INF, Tele: 1.5m ~ INF |
| Aperture Range | F1.65 ~ F3.8 (wide-tele) |
| Iris Type | Auto DC-IRIS, 16 Stops |
| IR Cut Type | Removable IR Cut filter |
| D.O.R.I. (US) | Detect (8px/ft): 7874’, Observe (19px/ft): 3124’, Recognize (38px/ft): 1575’, Identify (76px/ft): 787’ |
| D.O.R.I. (Metric) | Detect (25px/M): 2400M, Observe (63px/M): 952M, Recognize (125px/M): 480M, Identify (250px/M): 240M |
| Pan Range / Speed | 360° Endless, Configurable from .1°/s ~ 200°/s; Preset speed: 240°/s |
| Smart Event Detection | Trip Wire (+ Bi-Directional), Intrusion / Line Crossing / Region Entering + Exiting, Support Alarm Triggering by Specified Target Types (Human / Vehicle), Un-attended Baggage, Object Removal, Auto / Manual Smart Tracking |
| GEN IV Advanced Analytics | Face Detection (15 faces simultaneously), Detect, Track, Capture + Vehicle / Non Vehicle Detection & Tracking |
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE |
| Audio Interface | 1 Audio Input (MIC in), 1 Audio Output, Line Level, Impedance, 600Ω |
| Alarm Interface | 1 Alarm Input (Dry Contact); 1 Alarm Output |
| Alarm Linkage | Alarm Actions, Including Preset, Cruise, Track, Memory Card Video Record, Trigger Recording,Upload to FTP/Memory, Card, Send Email |
| Live View Connections | Up to 6 Simultaneous Live View Connections |
| User/Host | Up to 16 users, 3 levels: Administrator, Advanced and Normal Users |
| Security Measures | User Authentication (ID and PW), Host authentication (MAC address); HTTPS encryption., IEEE802.1x port-based net account control; IP address filtering |
| Web Browser | Internet Explorer (IE) – Plug-in Required, Edge in IE Mode |
| API | ONVIF, Third-Party Integration |
| CVBS | NA |
| On-Board Storage | Built-in microSD/SDHC/SDXC card slot, up to 256GB |
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet (Support PoE+ 802.3.at) |
| Thermal/Weather Management | Internal Heater and Fan + Quick Spin Water Removal |
| Reset Button | YES |
| Working Environment | -40°F~140°F (-40°C~60°C), 90% RH [STORAGE CONDITIONS: -40°F~158°F (-40°C~70°C), 95% RH] |
| Cold Start | -22F / – 30°C (30 Minutes Waiting Time), 90% RH |
| Weather / Impact / Protection | IP66 + IK10 (Excl. Glass Window), 6000V (Lightning, Surge, and Voltage Transient Protection) |
| Power | 12VDC** @ 3amps, PoE+ (23W with IR on, PTZ on, Heater + Fan on) **Power Supply Included |
| Dimensions and Weight | 6.81” × 10.51” (173mm × 268mm), NET: 4.85lb (2.2kg) / SHIPPING: 7.50lb (3.4kg) |
